Home > Products > Fuel Level Sensor > LH TX3-405 volvo fuel level sensor /High Precision Fuel Tank Level Sensor/tank level sensor

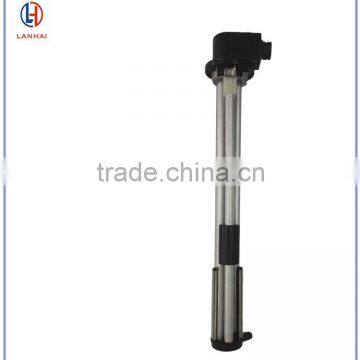

LH TX3-405 volvo fuel level sensor /High Precision Fuel Tank Level Sensor/tank level sensor
- 200 Piece / Pieces per Month
- Shanghai/Ningbo/Guangzhou
- T/T L/C Credit Card PayPal
Product Details
Type: | Other, FUEL SENSOR | Size: | Normal Size | Car Make: | CAR |
OE NO.: | OEM | Place of Origin: | Anhui, China | Brand Name: | LH |
Model Number: | TX3-405 | Warranty: | 12 Months |
Product Description
LH TX3-405 volvo fuel level sensor series fuel sensor ,mainly made of aluminum alloy .It applies the principle of the liquid flotage and magnetic induction to measure the liquid level.the product has good anti-corrosion performance,high measuring precision and preventing oil leakage when turned over.Also,the light weight using liquid buoyancy and magnetic induction principle of measuring liquid level, the product has a good stable performance, precise measurement accuracy, flip the security features of oil spill, at the same time because of the aluminium alloy material, the product quality is lighter, the price has great competitive advantage, company famous truck used in the heavy duty trucks.
Main material: adopt the aluminum alloy material production
Joint type: supply and return pipe joints and other specifications to choose from. Air pipe and heating supply/return oil joint can choose according to need conduction and conduction of two types of then.
Length: 230 ~ 900 mm
Mesh: can choose according to need external mesh, built-in filter or filter functions, including the outer filter removable reshipment after cleaning.
Assembly way: the tooth bayonet fixed with NBR or FPM sealing gasket.
Detailed Content
1. Level indicator
2. Suction and return fuel
3. The fuel filter (optional)
4. Engine heating (optional)
5. Alarm(optional)
6.Air vent pipe(optional)
Fixed way
TX3 series sensor is fixed by bayonet.This fixation has the advantages of more quickly and easily.when mounting,Also,the fixation performance can meet the customer requirements.
Product parameter
Rated power: 125 mw
Rated Current for alarm switch: 500 mA
Wire:PVC material (PA corrugated pipe cover is optional)
Connector: according to customer requirements
Output Signal: 0-190,240-33 or customize as request.
precision Range:10-40mm
Operating Temperature:-40—+85
Protection Range:IP67
Art. | L(MM) | Output Signal | Fitting | Filter | Heating Suction Dia./mm | Suction Dia./mm | Return dia./mm |
TX3-690 | 690 | 40~33 | Alu.SAE fitting | inner | φ7.7 | φ17.8 | φ11.3 |
TX3-538 | 538 | 0.2~4.0V | Alu.SAE fitting | outer | φ7.7 | φ17.8 | φ11.3 |
TX3-538 | 538 | 240~33 | Normal wire brass fitting | outer | φ7.7 | φ17.8 | φ11.3 |
TX3-405 | 405 | 180~10 | brass quick fitting | inner | φ7.7 | φ17.8 | φ11.3 |
TX3-615 | 615 | 10~180 | brass quick fitting | inner | none | φ17.8 | φ11.3 |
TX3-525 | 525 | 3~180 | Normal wire brass fitting | inner | none | φ17.8 | φ11.3 |
TX3-675 | 675 | 3~180 | brass quick fitting | inner | none | φ17.8 | φ11.3 |
TX3-615 | 615 | 10~180 | brass quick fitting | inner | none | φ17.8 | φ11.3 |
TX3-530 | 530 | 5.1~185 | Alu. block fitting | outer | none | φ17.8 | φ11.3 |
TX3-528 | 528 | 10~185 | Alu. block fitting | outer | φ7.7 | φ17.8 | φ11.3 |
TX3-528 | 528 | 980~51 | Normal wire brass fitting | outer | φ7.7 | φ17.8 | φ11.3 |
