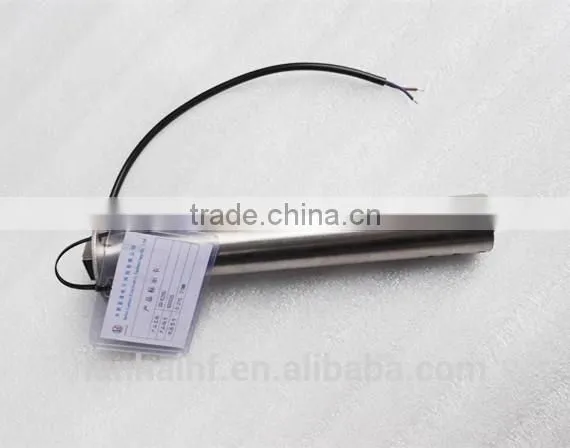

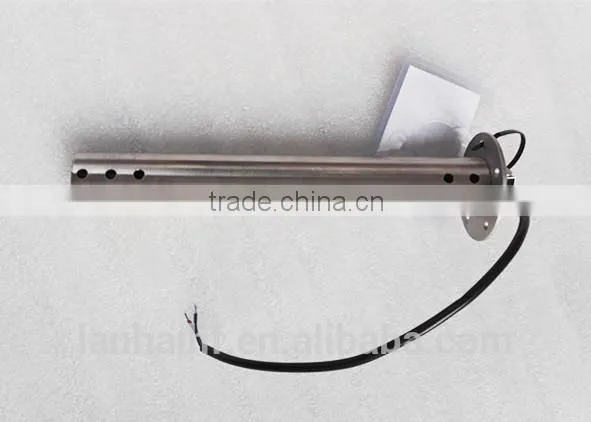

SD series Fuel level Sensor/ fuel sensor

Mainly structurte maded of SUS316 or SUS304 stainless steel which make the output signal stable
Length: 150 ~ 1200 mm, can be customized according to customer's request, if you need more than 1200 mm length Sd80 series are recommended.
Assembly method: SAE standards 5 holes, others  with 5ps M5 screw  and 2 mm thick NBR gasket. If used on gasoline tank, we suggested that equipped with 2 mm thick FPM gasket
Protection grade: IP67

This article adopts the field control principle of dry reed pipe contacts on and off, has the characteristics of long service life and aseismatic explosion-proof
The rated power of 125 mW
Current rating: 500 mA
Electricity wire: PVC (PA be optionaled)
Connector: according to customer requirements
Output signals: 0 ~ 190 Ω, 240 ~ 33 Ω, or customized as customers' request. you can also provide output is 0 to 20 mA, ,4 to 20 mA or voltage control signal,0.5 ~ 4, 5 VDC, 0 ~ 5 VDC

Working temperature: -40 ° C to + 85 ° C
