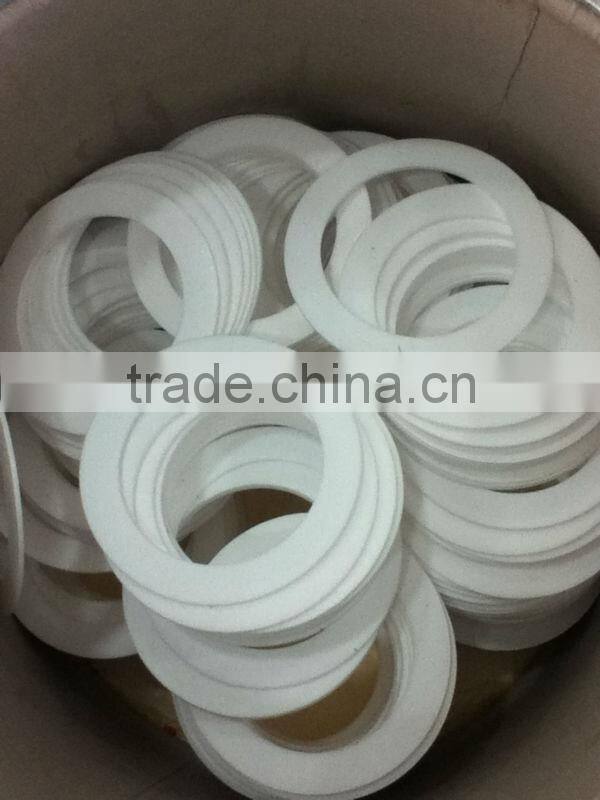

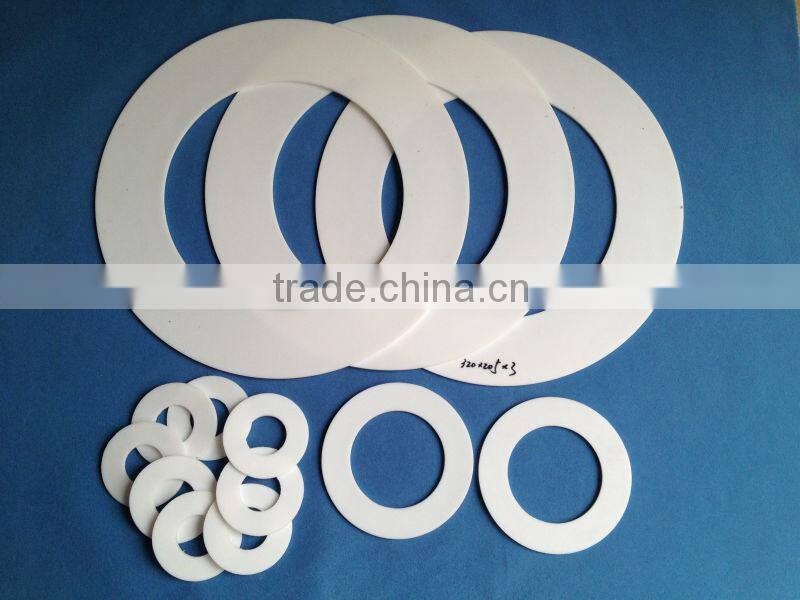

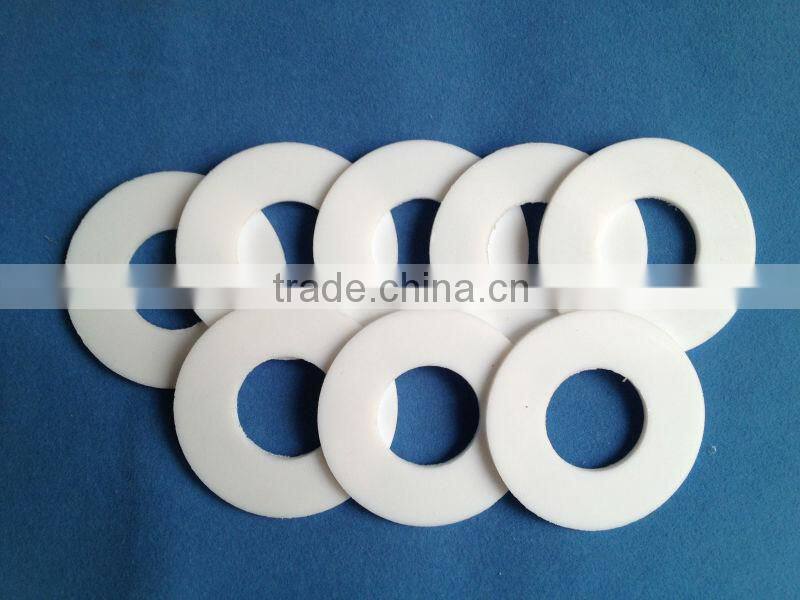

Ptfe Gaskets Filled With Glass Fiber

FOB Price

Negotiable / Kilogram

50 Kilograms(Min. Order)

Port Shanghai
Payment TermsT/T Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	Xinflon
Model Number	white pure PTFE valve Gasket	Material	Other, Rubber, PTFE
Shape	Ring Gasket	Standard or Nonstandard	Standard

Product Description

Specifications

white pure PTFE valve Gasket
1.Glass,Carbon, graphite,bronze can be filled
2.Low MOQ
3.Free Sample

white pure PTFE valve Gasket

1.Feature:

> Acid and alkali resistant
> Chemical resistant
> has minimum friction coefficient of all know pure material
> Non-viscous, no aging
> Now molds can be made according to customers requirements.

Glass Fiber:	Increases compressive strength, rigidity and wear. Reduces creep and cold flow Minimal effect on chemical and electrical properties
Carbon:	Increases compressive strength, hardness, wear, and load properties. Good chemical resistance Various types and amounts of carbon can be added to alter conductivity
Graphite:	Reduces coefficient of friction Reduces initial wear Increases strength
Molybdenum Disulfide:	Increases hardness, stiffness, and wear Minimal effect on chemical and electrical properties
Bronze:	Increases hardness and wear resistance Increases dimensional stability and compressive strength Not suitable for corrosive or electrical applications

2.Applications:
As filled product has good corrosion-resistance,low friction and good hardness,it is widely used for the production of gasket,valve,bearing,slide,pistion ring,insulating sleeve,and self-lubricating seal.

3. Technical Indexes

Properties	Unit	Result
Apparent density	g/cm3	2.10-2.30
Tensile strength (min)	MPa	30
Ultimate elongation (min)(min)	%	300

Product No.	Filled compound and content by weight	Tension strength MPa min	Ultimate strength% min	Compresive strength MPa min
1	20% glass fiber	10	120	16
2	25% glass fiber	10	100	16
3	20% glass fiber graphile	10	120	16
4	60% bronze	10	80	20
5	15% carbon fiber	11	130	16
6	24% bronze 12%glass fiber 6% graphite	9	100	16
7	15%glass fiber 105polyikmide 5% graphite	10	120	16.7

4. About our factory

5. Service
