Specifications

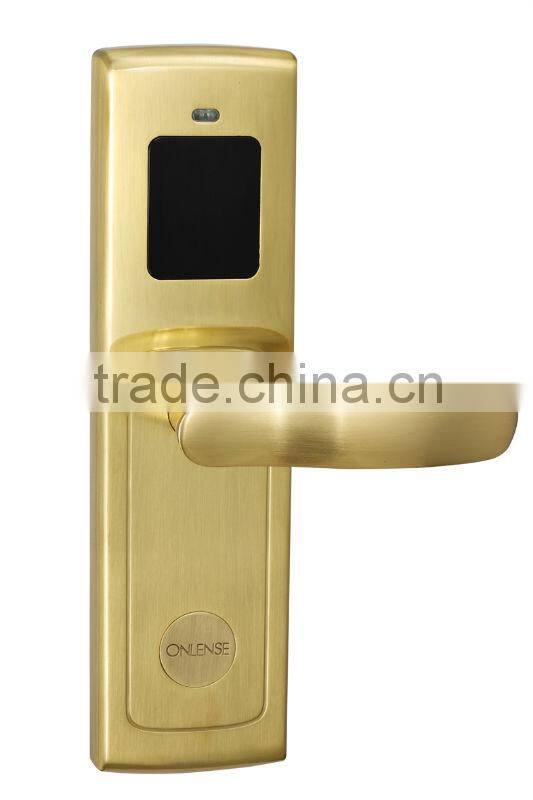

apartment rfid card lock1.Hotel lock manufacturer
2.Good quality & competitive price
3.CE/RoHS/FCC
4.Quick delivery
Description of apartment rfid card lock 8909RF
1.Durable and solid body is made of zinc alloy
2.304 stainless steel handle to ensure the lock is strong and safe

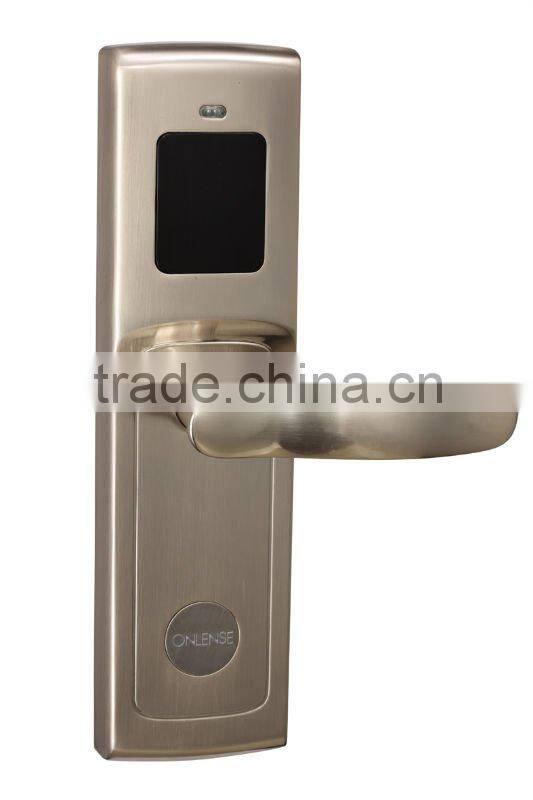

3. Silver and gold for optional
4.Stable system, one-card-pass avaliable
5.Software is free of charge
Parameter of apartment rfid card lock 8909RF
| Item No.: 8909RF | |
| name | Wireless hotel network lock |
| color | Golden/Silver |
| panel material | zinc alloy |
| handle | stainless steel |
| card type | Rf card/Mifare-1 card |
| mortise type | European standard mortise A or American standard ANSI mortise C |
| door thickness | 35mm-55mm |
| standard | European standard or ANSI |
| certificate | CE,RoHS,FCC |
Door conditions of apartment rfid card lock:
Two kinds of mortises available, European standard and American standard, made by stainless steel high quality for economical hotel.
Mortise A (European standard): The thinkness of the door is 28-58mm, the depth of the door side (the distance from door side to the center of the door hole) is 80mm. If the door has decorative bar, the distance from door side to the decorative bar should be over 90mm.
Mortise C (ANSI standard): The thinkness of hte door is 38-58mm, the depth of the door side (the distance from door side to the center of the door hole) si 110mm. If the door has decorative bar, the distance from the door side to the decorative bar should be over 110mm.
Our Value
Dissociative structure:
The Handle will turn dissociative when the door is locked, decrease the damage to the lock casued by outside force.
Stainless steel axis part:
The key part axis will take over all force when open the door, so the stainless steel material enable it can be used for more than 1 million times.
Localizer:
A molded type of localize, makes the lock core work stable and steadily.
PC control panel:
1.Adopt chips from brands like Philips, Atmel, make sure the lock save energy and durable.
2.Researched by Onlense to maintain stable system update, namely further tech-development possibility for users.
3.The sealed process enable the preventions from mould, bacteria and moisture to ensure stable performance.
Onlense System

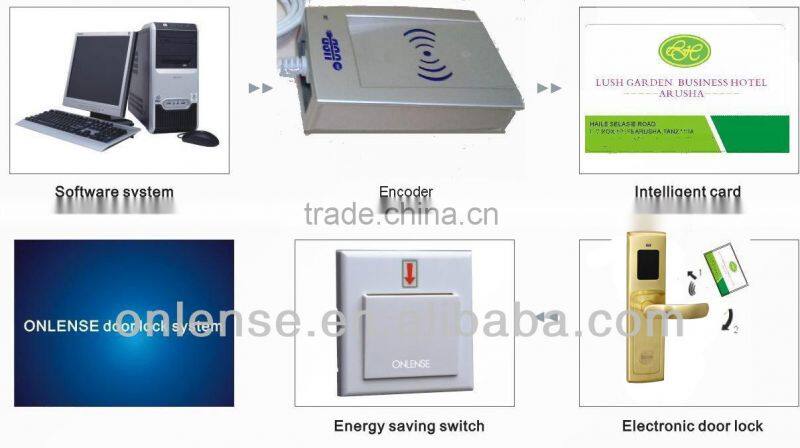

System factors: Door lock, intelligent card, computer, management software, encoder, energy saving switch.
Main Functions: Use the computer and the software to issue cards of different rank and purview, to actualize ranking management.
Basic Technical Function Index of apartment rfid card lock :
Index of Wireless hotel network lock :
Mifare-1 card index in Wireless hotel network lock :
Hotel Temic card index in apartment rfid card lock 8909RF:
Certificates of apartment rfid card lock 8909RF
Onlense workshop:
Apartment rfid card lock is mostly used for:hotel, campus, dornitory apartment, school, office and so on.
Other apartment rfid card lock series
There are two questions you need to confirm as follows:

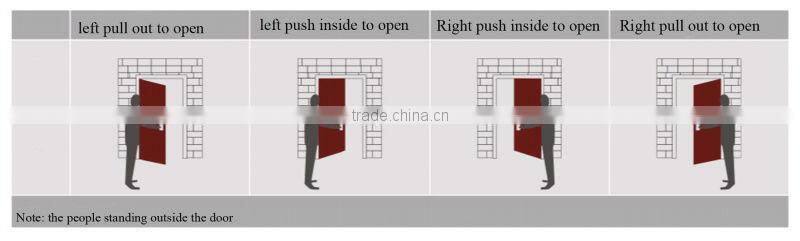

1)Please confirm your door opening direction:
2)Please confirm your door thickness:
Normally, the door thickness is 38-60mm.
Quality guaranteed!
Any question, pls contact us freely, we will reply you promptly!
