Specifications
1.IC card lock manufacturer2.Copper material
3.CE/RoHS/FCC
4.High quality asurrance
5.Software free of charge

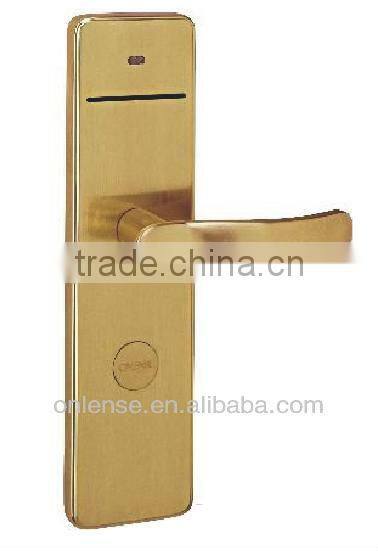

Description of IC card door lock 8900IC
Brief introduction
1. Copper lock, popular finishes in silver/gold, fadeless
2. IC card or magnetic card can be used in this lock, to make your hotel system works more efficiently
3. Alarm to remind the abnormal condition
4. Low consume, high sensitive card reader technology
5. Qucik delivery and good after-sale service
Parameter of IC card door lock 8900IC
Basic Technical Functional Index of IC card door lock:
| Power Supply | DC6V,use of 4 pcs of AA batteries |
| Supply Voltage | below DC4.5V with lack of voltage indications and can be used about 200 times |
| Static Power Supply | <10u A |
| Dynamic Power Supply | <150m A |
| Lifetime of battery | Normally open the door more than 20,000 times |
| Record inside the lock | 256 records for standard (include open by mechanical key) |
| Usage | In normal status, open the door by inserting the card and take it out, green light flashes and sounds once; If the yellow light flashes after the green light and sounds twice, it's indication of low voltage and means it's time to change the batteries. |
IC card index:
| Spec | German Siemens SLE4442 card, accord with ISO7816 |
| Craft | Information is in the compositve circuit module on the PVC |
| System logic | 32byte code protection |
| Reading | Insert the card. Readable, over-writable and encryptable |
Magnetic card index:
| Spec | Accord with ISO7816 |
| Craft | Information is printed in the magnetic strip on the PVC |
| Working conditions | Temperature 0'C-40'C,humidity 20%-90% |
| Reading | Swipe the card |
Advantage of Electronic IC card door lock system

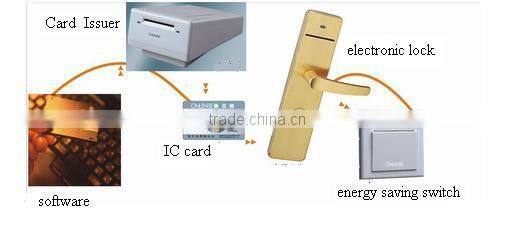

The whole IC card hotel door lock System : |
IC card hotel door lock,open door card,Encoder,software ,and the Energy saving switch. |
Working theory |
Software installed on the computer,then use the Encoder to make all kinds of cards,use the cards to open the door and get power in the room. |
| Mortise A type lock(European standard) | door thickness should be 28-58mm and door side deep distance (distance from door side to the center of door hole) should be 80mm. If the door is with decorative bar, the distance from door side to the decorative bar should be over 90mm. |
| Mortise C type lock(ANSI standard) | door thickness should be 38-58mm and door side deep distance (distance from door side to the center of door hole) should be 110mm. If the door is with decorative bar, the distance from door side to the decorative bar should be over 110mm. |
|
|
|
|
Multiple functions:
|
IC card hotel door lock |
|
Five levels of control
|
General control, building control, floor control, area control and room control. |
|
Password control
|
System password and operating password together to ensure security |
|
Cipher coding to key card
|
Each card has a different code that cannot be copied. Compulsory decoding will destroy the card automatically. |
| Area control | Cards of different types and levels can open different locks in different locations. |
| Timing control | Working clock is set inside locks to control the effective time limit of card keys. |
| File record | All issued card keys have records including each opening(also mechanical key opening). |
|
Loss reporting
|
Open function can be cancelled when the card is missed |
Certificates of IC card door lock
Hotel IC card door lock system are being used ibuilding: hotel,dormitory, apartment,campus,business office and so on.
Warranty
- Parts and software solution are free of charge for any problem on the locks under normal use within 1 year's warranty. Cost price of the parts will be required after the warranty.
- Lifetime maintenance, help the customers to slove all the problem of the lock and system.
- We will have our technician give you or your manager professional trainning on the lock system if you request.
Onlense is a manufacturer who researchs and produces high technology electronic locks for security since 2001, our products and systems are widely used in guesthouses, hotels, flats and office intelligent estates, and the quality and service are widely acknowledged by our users. For dependable and safety performance with low cost, products of ONLENSE series are very popular in domestic markets. In the meanwhile, because of the superiority on the quality, we obtain the CE Verification of SGS, Rohs, FCC certificate and our products have been exported to the worldwide countries for many years.
Please feel free to contact us for any inquiry on the locks, we will reply you within 24 hours!
