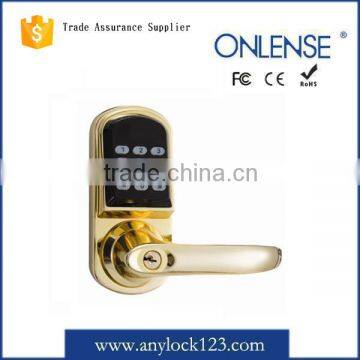

Item No.: S200MF | |
Name | electronic password lock |
Panel meterial | zinc alloy |
Colors | silver/golden |
Software | no need software |
Remote distance | 30MM |
Unlocking way | password, remote controller and key |
Usage places | hotel,apartment,school,business office |
Durable zinc alloy material of electronic password lock
Made of zinc alloy, durable and stable, waterproof and anti-moist. Up to 10 remote controllers and 10 code users
Three unlocking ways of electronic password lock

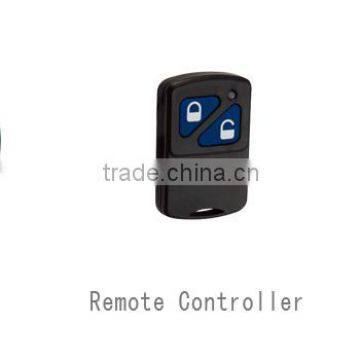

Remote controller, Code, Mechanical key (Override in case of out of battery power)
Easy installation of electronic password lock
Standard single latch, adjustable for 60/70mm backset. Just remove the existing knob lock, no need drill hole.
Anti-moist and anti-dust function of electronic password lock

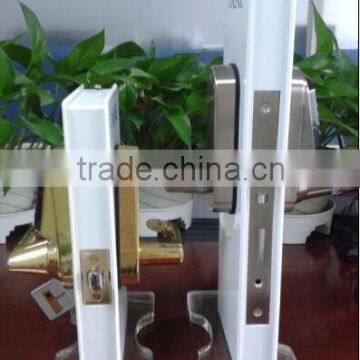

European standard mortise E or ANSI single latch for electronic password lock
| Morstise E : | |
| European Standard with deadbolt by hand | Door thickness should be 30~58mm and door side deep distance(Distance from door side to the center of door hole) should be 80mm.If the door is with decorative bar, the distance from door side to the decorative bar should be over 90mm. |
| Single latch | Latch is made of 304 stainless steel with adjustable 60-70mm |

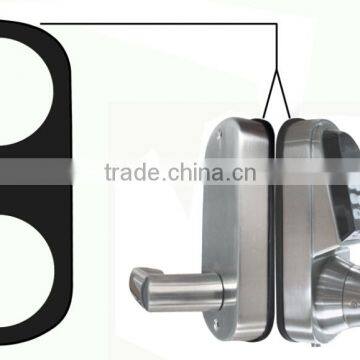

Dissociative structure of electronic password lock
The handle turns dissociative when door islocked, to decrease damage caused to the lock body from outside force, and also avoids special tools go into the door to push the handle open
The direction of handle is exchangable, and user could change it easily
Application of electronic password lock
Can be used in campus, office and apartment, this lock is really excellent and helpful for door security field
Remote open: Apply microwave remote technology , up to 30M of effective radius, which is more suitable to use in supervisor or manager's office, as no need to go to the door while unlocking
Backlight keypad for night usage of electronic password lock

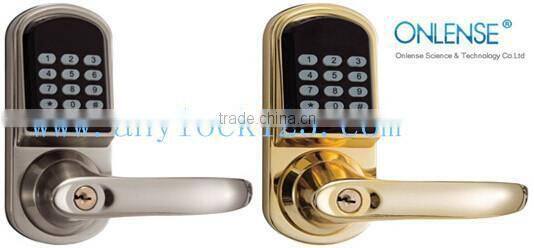

Two colors of electronic password lock
Silver and golden for choice
Size of electronic password lock (mm)
Qualification of electronic password lock
High quality with certificates of CE, FCC, RoHS: durable and stable, could be used more than 10 years
Technical index of electronic password lock
Power Supply: | DC6V,use of 4pcs of AA batteries. |
Supply Voltage: | DC4.5v-6.5v, normal status, blue light flashes and it sound for 1 time; when the voltage is below DV4.5v, the red light flashes after the blue light flashes, sounds twice, in this situation, the lock can be used for more 200 times. |
Static Power Supply: | <10 u A. |
Dynamic Power Suppy: | <150m A |
Inductive Distance: | 10-30mm |
Open time: | It will automatically lock inside after open it for 1 time, or lock again if the door is not opened in 3 seconds. |
Lifetime of battery: | Under normal situation, the lock can keep working last 1 year, be opened more than 20000 times |
Record inside the lock: | 1000 records for standard type|(include open by mechanical key) |
Setting Requirement: | Working temperature: 0'C-70'C, humidity:15-92%max. |
Core value of electronic password lock
Onlense is a manufacturer who researchs and produces high technology electronic locks for security since 2001, our products and systems are widely used in guesthouses, hotels, flats and office intelligent estates, and the quality and service are widely acknowledged by our users.
After Sales Service
Shipment and sample quality tracking includes lifetime. Any small problem happening in our products
will be solved at the most prompt time. We always offer relative technical support. Quick response, all your inquire will be replied within 24 hours.
