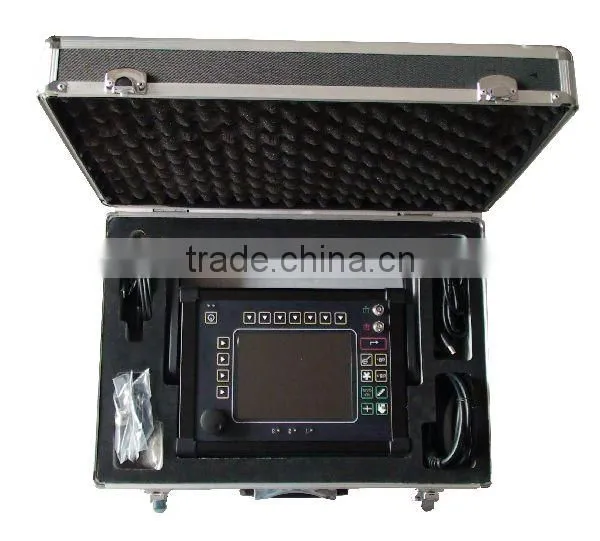

S60 Portable Ultrasonic Flaw Detector (NDT, Ultrasonic, Ultrasound, A Scan , Digital Portable Ultrasonic Flaw Detector)
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Straight Beam(add Membrane) Probe (NDT, Ultrasonic, Ultrasound, Transducer)NegotiableMOQ: 1 -
Straight Beam Probe (NDT, Ultrasonic, Ultrasound, Transducer)NegotiableMOQ: 1
-
Angle Beam Probe (NDT, Ultrasonic, Ultrasound, Transducer, Ndt Equipment, Ndt Accessories)NegotiableMOQ: 1
-
Dual Element Straight Probe(NDT, Ultrasonic, Ultrasound, Transducer)NegotiableMOQ: 1
-
Probe for Thickness Gauge(transducer, NDT, Ultrasound, Ultrasonic, Measure)NegotiableMOQ: 1
Brand Name
Sonostar
Specifications
work with a computer.

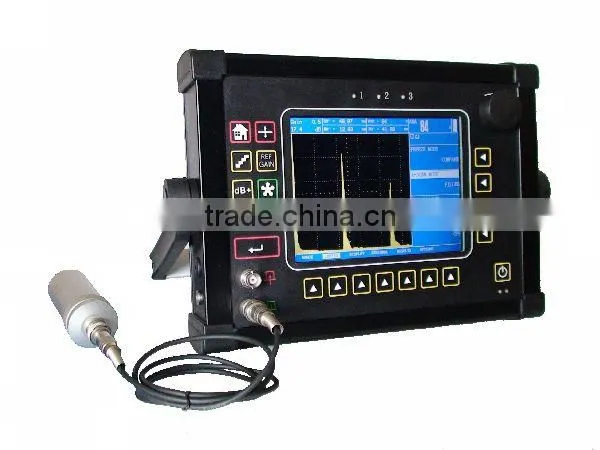

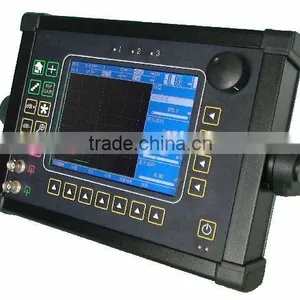

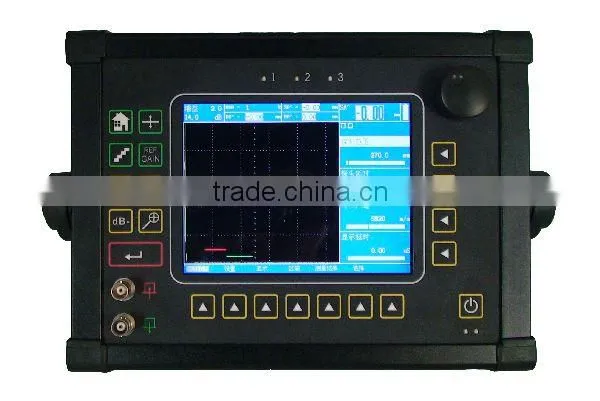

S60 Digital Ultrasonic Flaw Detector is a highly efficiency portable, intuitive instrument. Its blend of efficient menus and direct access keys allows you to take advantage of the highest quality flaw detection platform with exceptional ease of use.
Key Features:
-Simple to use, quick to operate, from basic to challenging inspection requirements.
-From high frequency inspections for thin materials to low frequency for attenuative materials.
-From automotive, power generation, oil and gas to aerospace applications.
-From high frequency inspections for thin materials to low frequency for attenuative materials.
-From automotive, power generation, oil and gas to aerospace applications.
-6.5” Hi-resolution (640 x 480 pixels) Color LCD Display
-Auto CAL makes calibration fast & easy

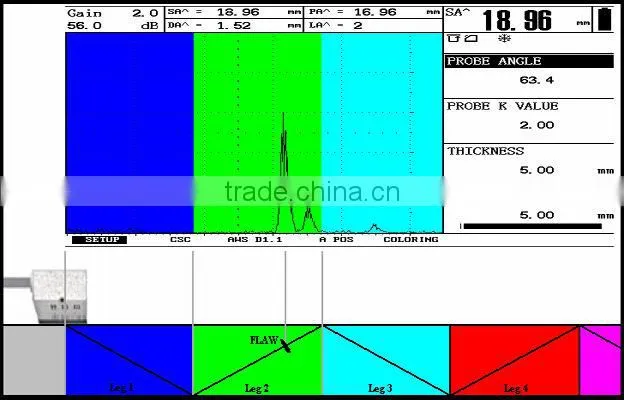

-Corrosion-featured b-scan and Full-featured b-scan

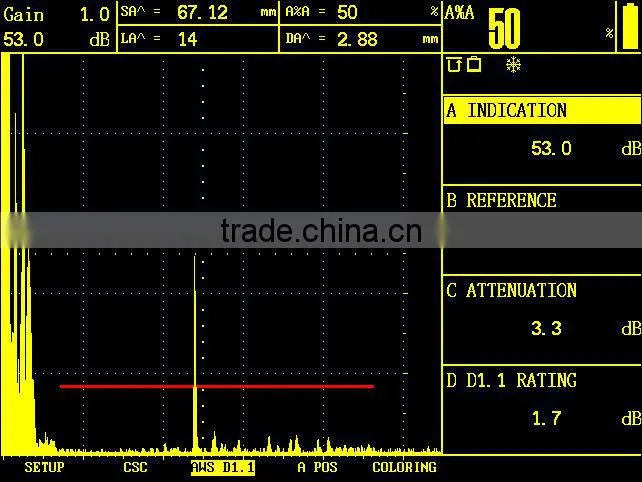

-DAC/TCG, JISDAC, AWS D1.1, DGS
-Thickness Data logger for flexible
-Square Wave Pulser selectable
-Square Wave Pulser selectable
Main Functions:
-Peak Hold: Automatically search the peak wave inside the gate and hold it on the display
-Equivalent diameter calculation: find out the peak echo and calculate its equivalent diameter
-Rectification: Full-wave, negative half-wave, positive half-wave and RF mode
-Peak Hold: Automatically search the peak wave inside the gate and hold it on the display
-Equivalent diameter calculation: find out the peak echo and calculate its equivalent diameter
-Rectification: Full-wave, negative half-wave, positive half-wave and RF mode
-Monitor gates: 2 independent gates in color bar mode, start and width variable over the entire sound path range
-Alarm: Alarm signal via LED and connectable internal horn. Alarm mode of positive logic, negative logic or DAC
-Zoom: Expands A-scan display area for increased screen resolution.
-Magnify: Expands area within the selected gate over the entire display range for increased A-scan resolution.

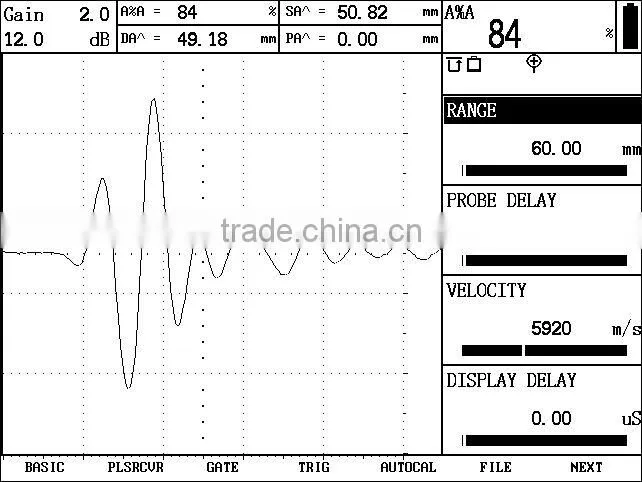

-Auto calibration: Measurement and setting of sound velocity and probe delay using two known calibration echoes (2-point calibration)
-Data memory: Maximum 512 datasets store instrument setups or reports including operation parameters plus A-scan, the stored datasets can be easily previewed, recalled and exported to a computer for edit and printing.

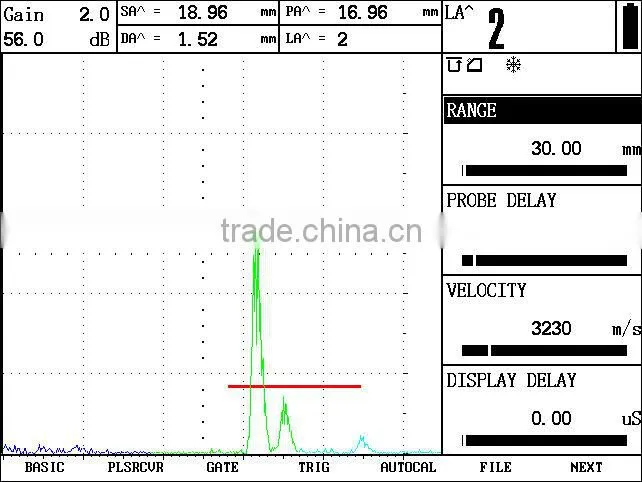

-DAC / TCG: DAC (Distance Amplitude Curves) or TCG (Time Corrected Gain) with a maximum of 16 reference echoes, 4 other curves can be displayed with variable dB intervals. The dB difference between the echo and the recorded DAC curve is measured through gate A.
-JIS DAC / TCG: JIS DAC (Distance Amplitude Curves) with a maximum of 16 reference echoes, 4 other curves can be displayed with variable dB intervals, and 2 other curves can be displayed with constant dB intervals. The dB difference between the echo and the selected DAC curve is measured through gate A. The flaw class is evaluated according to JIS Z3060-2002.
-AWS D1.1: Provides a dynamic reflector indication rating for various AWS weld inspection applications. This allows more efficient inspections by eliminating manual calculations.
-DGS: DGS curves for single-element and dual-element probes and for all materials, sound attenuation and transfer loss correction, 4 other curves can be displayed with variable dB intervals. Backwall, side drilled hole, flat bottom hole type of the reference reflector are used. Equivalent reflector size, dB difference or height difference is evaluated simultaneously.
-Time of Flight mode: Peak, Flank and J-Flank.
-Auto-freeze function: On hot surfaces you use auto-freeze function, minimizing the probe’s contact time.
-Measure under freeze status: Under freeze status you still can move gate to measure the echoes to get readings.

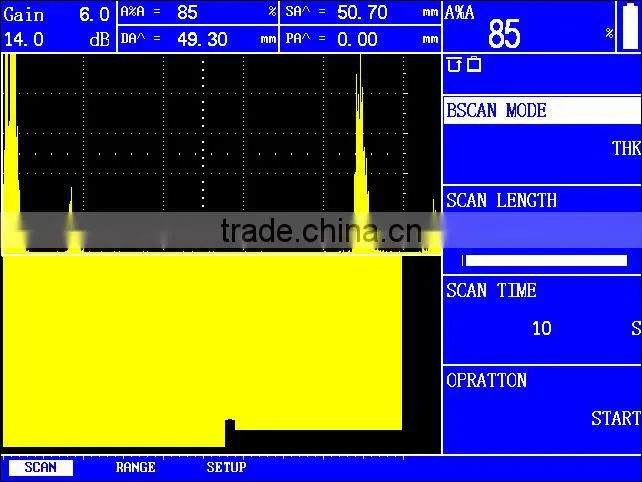

-B-SCAN: Manual b-scan as an auxiliary tool.
Pulser:
-Spike pulser or Square wave pulser.
-Spike pulser or Square wave pulser.
-Spike excitation with low, mid, and high choices of the pulse energy.
-Square wave excitation: Pulse Voltage adjustable from 20V to 500 V in 10 V increments, Pulse Width tunable from 20ns to 1000 ns in 10 ns increments. Pulse width tunable in a certain range to match different probes.
-Damping: 50Ω, 75Ω,150Ω,500Ω selectable to meet different resolution and sensitivity requirements.
-Pulse Repetition Rate: range from 2 to 1000 Hz. 10 steps available for the setting, step 0 means the lowest PRF value to detect easily phantom echoes.
-Pulse Repetition Rate: range from 2 to 1000 Hz. 10 steps available for the setting, step 0 means the lowest PRF value to detect easily phantom echoes.
-Probe work mode: Single element, dual element and through transmission.
Technical Specifications:
-Range: 1 ~ 10,000 mm (steel) , range selectable in fixed steps or continuously variable
-Range: 1 ~ 10,000 mm (steel) , range selectable in fixed steps or continuously variable
-Gain: 0 ~ 110 dB adjustable in selectable steps 0.2, 0.5, 1.0, 2.0, 6.0, 12.0, user definable, and locked (step 0).
-Bandwidth: (0.2 ~ 20) MHz
-Material Velocity: 100 ~ 20,000 m/s, continuously variable in steps of 1 m/s and 33 selectable material velocities
-Dynamic Range: ≥ 32dB
-Vertical linear error: ≤ 3%
-Horizontal linear error: ≤ 0.1%
-Resolution:> 30dB
-Sensitivity Leavings: 62dB (flat-bottomed deep hole 200mm o/ 2)
-Rejection: (0 to 90)% Linear
-Noise level: ≤ 20%
-Power supply: DC 9V; lithium batteries work for 7 hours or more
-Vertical linear error: ≤ 3%
-Horizontal linear error: ≤ 0.1%
-Resolution:> 30dB
-Sensitivity Leavings: 62dB (flat-bottomed deep hole 200mm o/ 2)
-Rejection: (0 to 90)% Linear
-Noise level: ≤ 20%
-Power supply: DC 9V; lithium batteries work for 7 hours or more
-Weight: 5.5 lbs. (2.5 kg) Li-Ion Battery; 4.8 lbs. (2.2 kg) without battery
-Size: 11.9” W x 9.9” H x 2” D (302 x 251 x 51 mm)
-Ambient temperature: -10 ~ 60 °C
-Relative Humidity: 20 ~ 95% RH
-Communicaion interface: USB2.0 or RS232 communication port
-Relative Humidity: 20 ~ 95% RH
-Communicaion interface: USB2.0 or RS232 communication port
-Probe interface: 2 x BNC or 2 x LEMO 1
-Dialog languages: Chinese, German, English (default setting), Japanese, Korean.
Standard Configuration:
No. |
Item |
Quantity |
1 |
Main machine | 1 |
2 |
Straight Beam Probe | 1 |
3 |
Angle Beam Probe | 1 |
4 |
Machine-probe Cable (for Straight Beam Probe) | 1 |
5 |
Machine-probe Cable (for Angle Beam Probe) | 1 |
6 |
Power Adapter (Charger) | 1 |
7 |
Operating Manual | 1 |
8 |
Instrument Case | 1 |
9 |
Datapro Software CD | 1 |
10 |
Communication Cable | 1 |
Analog performances, digital advantages
S60 combines the digital powerful advantages with the analog high performances. The high resolution (640x480 pixels) color LCD display, 100 Hz update rate, and single shot measurement technique produce a fast, smooth response for immersion and critical weld testing. The quality, durability, dependability and ease of use still remains in this instrument. From rugged field inspections to high resolution thin measurements, long acoustically clean materials, and immersion systems work, S60 extends the range of applications that a portable instrument can perform.
Square Wave Pulser selectable and tunable for optimum probe matching to satisfy a wide range of tough-to-penetrate applications.
Now, either spike or square wave pulser is user selectable from the front panel.
• Spike pulsers are still preferred for everyday use.
• For low frequencies, square wave pulsers allow optimum probe matching by adjusting pulse width and voltage.
• Difficult to penetrate metallic applications and especially non- metals inspection like composite materials are optimized.
• Pulse width is tunable up to 1000 ns in 10 ns steps for optimum probe matching and versatility in meeting a wide range of applications.
• Pulse voltage is adjustable from 20 to 500 V in 10 V steps.
Rugged durability, great than 8 hours of battery use, fast rotary knob operation, outstanding ultrasonic performance, and now square wave pulser and color leg combine to form a powerful portable ultrasonic inspection tool with new Lithium Ion battery.

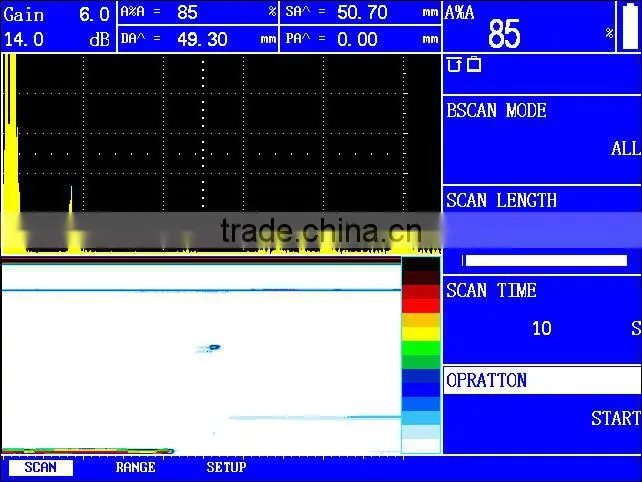

Corrosion-featured B-scan , full-featured B-scan and RF display
