Agricultural machine /agricultural equipment/agricultural farm tractor for promotion
1. 4WD drive Agricultural machine /agricultural equipment/agricultural farm tractor for promotion
2. 30hp engine
3. Dimension: 3590X1485X1940mm
4. With front loader
I. Features of Agricultural machine /agricultural equipment/agricultural farm tractor for promotion
1. Adopt Yangdong engine, good reliability, large reserves of torque, low fuel consumption, high
economic efficiency;
2. Gearbox using 4x(2 +1) engaging sleeve, shuttle -action gearshift, there are 8 forward gears,
4 reverse gears, reasonable match between the gears, and have high efficiency;
3. Using an independent power output device, smooth transmission, large capacity, speed (540/
720, 540/1000 rev / min) for selection to meet the complex operational requirements;
4. Using an independent circuit of hydraulic steering control system, manipulating flexible,
reliable, and save energy;
5. Using disc brakes, a large braking torque, the braking effect is good;
6. Final drive with planetary gear mechanism, compact structure, large reduction ratio;
7. The new streamlined appearance, generous, modern, fashion;
II. Main parameters of Agricultural machine /agricultural equipment/agricultural farm tractor for promotion
Tractor Model |
DT300 |
DT350 |
DT304 |
DT354 35hp farm tractor for sale |
|
Driver Type |
4×2 |
4X4 |
4X2 |
4X4 |
|
Dimension L×W×H(mm) |
3590X1485X1940 |
||||
Wheel base(mm) |
1705 |
1760 |
|||
Front wheel tread(mm) |
1100-1400 |
1200 |
|||
Rear wheel tread(mm) |
1100-1400 |
||||
Mini ground clearance(mm) |
1410 |
1480 |
1620 |
1640 |
|
Mini turning radius |
Unilateral brake(m) |
2.8 |
|||
Not unilateral brake(m) |
3.2 |
3.4 |
|||
Mini Using Weight(KG) |
1410 |
1480 |
1620 |
1640 |
|
Numbers of the gear |
8F+4R |
||||
Speed |
Forward(kw/h) |
2.07-27.08 |
2.25-29.53 |
2.07-27.08 |
2.25-29.53 |
Reverse(kw/h) |
3.07-9.35 |
3.34-10.20 |
3.07-9.35 |
3.34-10.20 |
|
Engine |
Model |
YD485T-C075 |
YND490T-C053 |
YD485T-C075 |
YND490T-C053 |
Marked power (KW) |
22.1 |
25.7 |
22.1 |
25.7 |
|
Rated revolution (r/min) |
2200 |
||||
Tires type |
Front |
5.5-16 |
6.5-16 |
7.5-16 |
|
Rear |
11.2-24 |
11.2-28 |
11.2-24 |
11.2-28 |
|
Steering |
Hydraulic front wheel steering |
||||
Max. lifting capacity( KN ) |
5 |
5.8 |
5 |
5.8 |
|
PTO |
Type |
Postposition, No Detached |
|||
Speed (r/min) |
540/1000 6 Spine |
||||
Power(kw) |
≥18.78 |
≥21.85 |
≥18.78 |
≥21.85 |
|
Control type of plough depth |
Force & Position Control |
||||
Front / rear Ballast (kg) |
80/80 |
80/100 |
80/80 |
80/100 |
|
Notice: All above parameters are subject to change without notice because of rapid development of products. | |||||
III. Pictures showcase of Agricultural machine /agricultural equipment/agricultural farm tractor for promotion

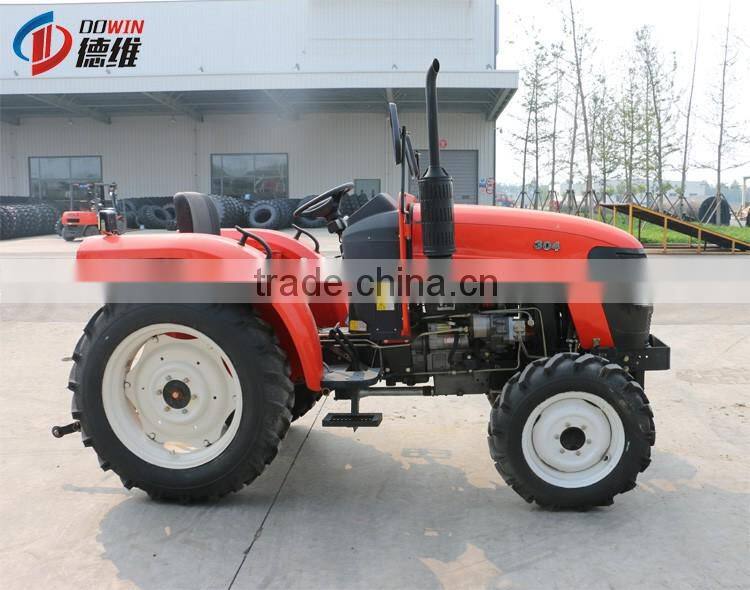

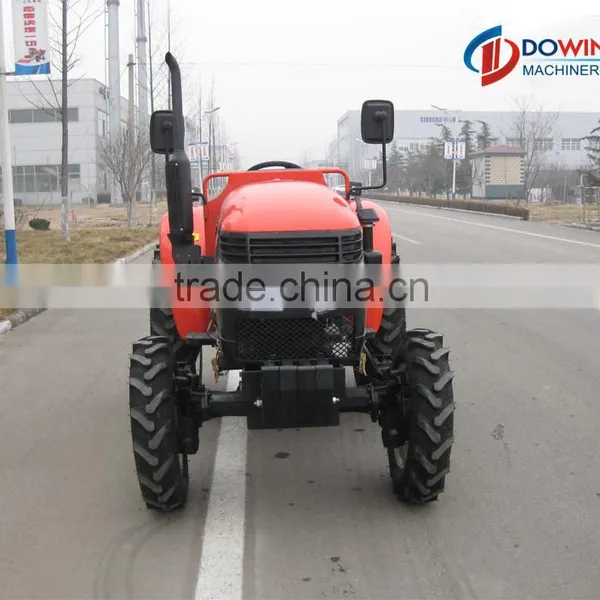

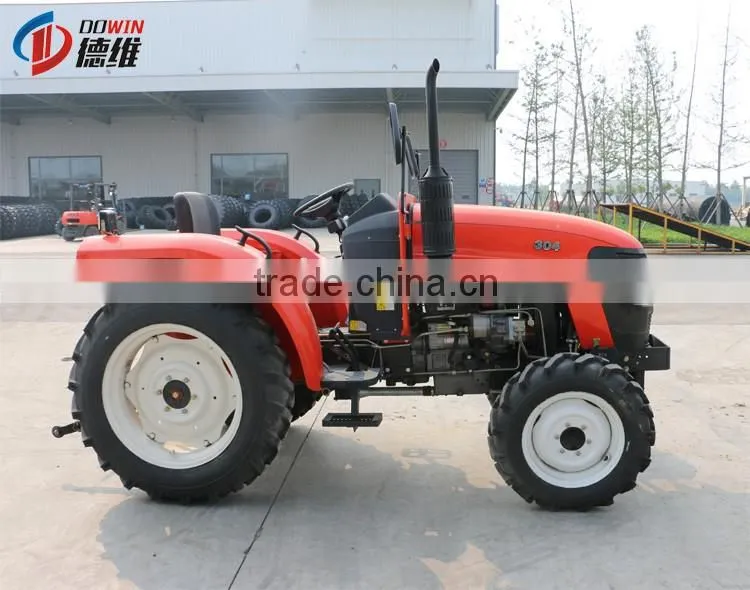

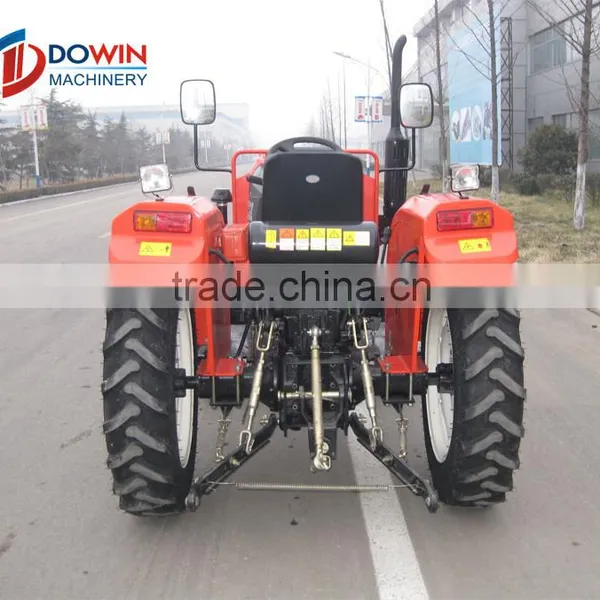

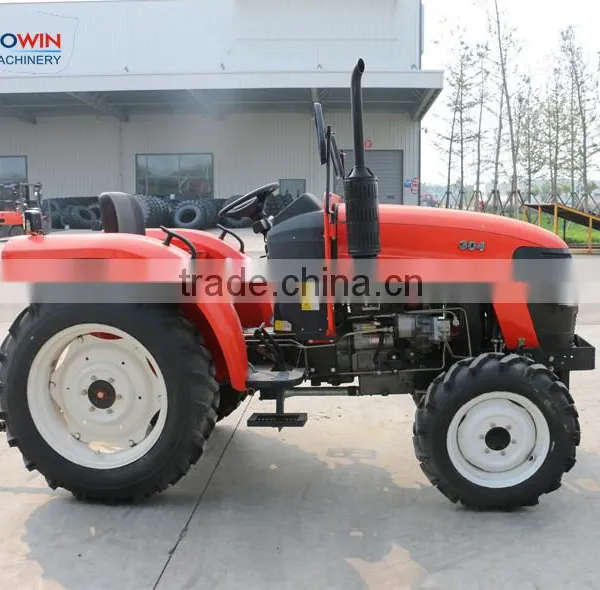

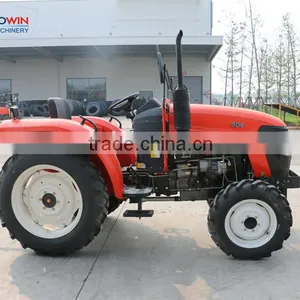

1. Basic 30hp farm tractor

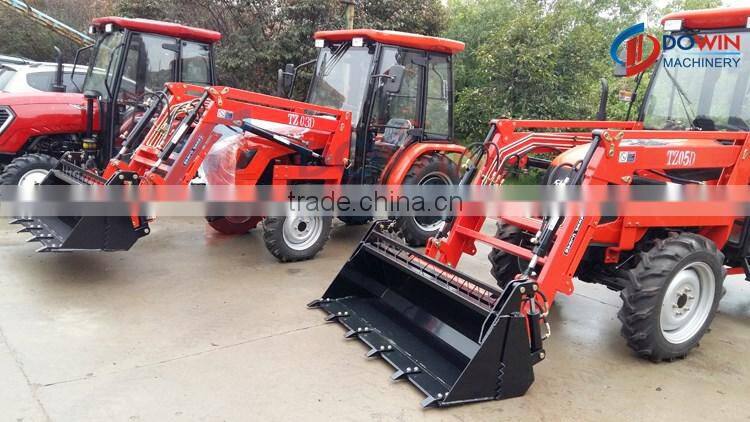

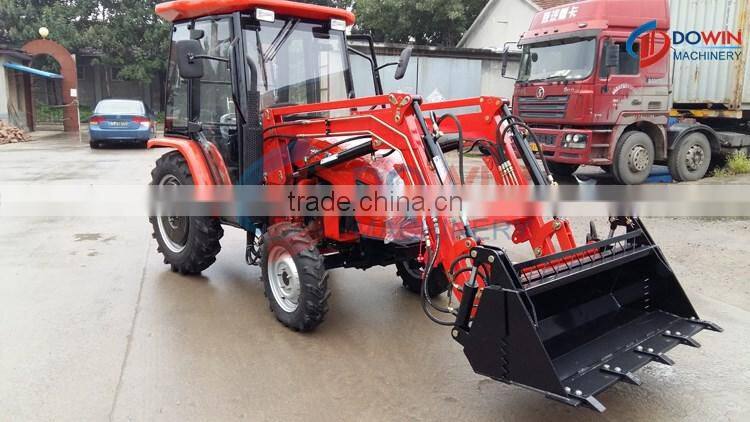

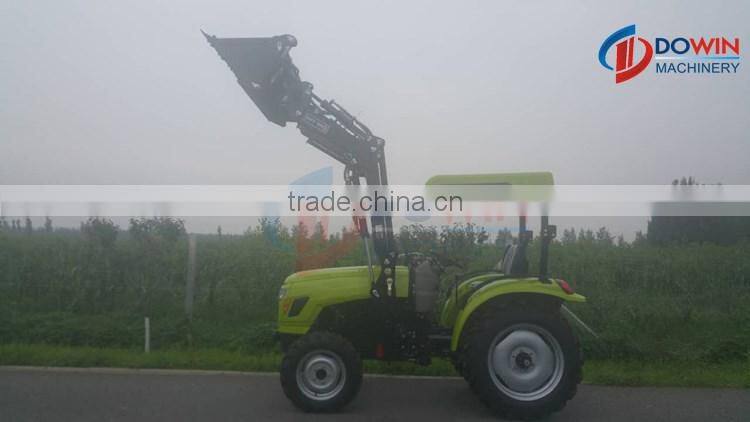

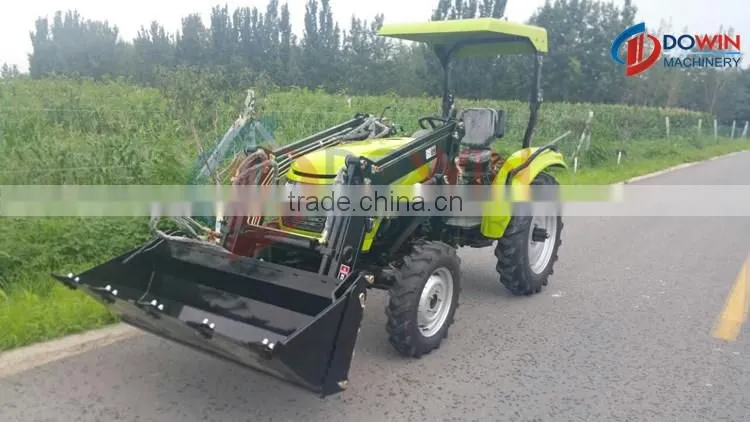

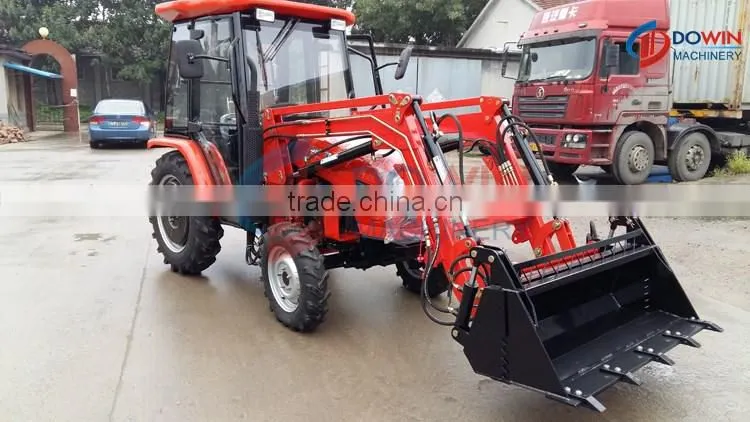

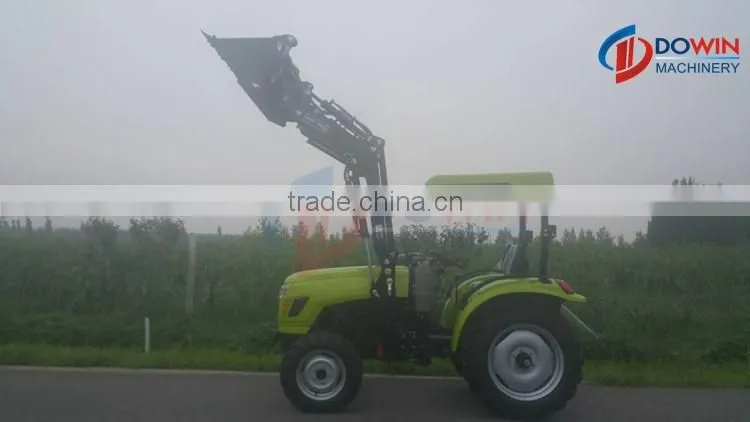

2. 30hp farm tractor with cabin or sunshade and front loader
IV. Advantages of Agricultural machine /agricultural equipment/agricultural farm tractor for promotion
1. Hydraulic outlet
2. Certifications
V. Packing details of Agricultural machine /agricultural equipment/agricultural farm tractor for promotion
4 units of DT304 without iron frame can be loaded in one 40HQ.
2 units of DT304 without iron frame can be loaded in one 20GQ.
8 units of DT304 packing in iron frame can be loaded in one 40HQ.
4 units of DT304 packing in iron frame can be loaded in one 20GQ.
VI. Company introduction of Agricultural machine /agricultural equipment/agricultural farm tractor for promotion
Henan Dowin Machinery Co., Ltd. was founded in 2000 with more than 10 years experience in the area of agricultural equipment. Our main products are 4wd farm tractors, 2wd farm tractors, potato harvester, etc. We have exported our machine to Austria, Romania, Russia and Latin American.
Welcome to visit our factory! My mobile phone is +86 131 6431 7138.
1. Factory showcase
2. More agricultural machines we can supply
1)Are you a manufacturer?
Yes, We are OEM Manufactory specialized in tractors
2)Do you have stock products to sell?
No, we work on OEM order. Each product we do is custom. You can have your own design.
3)Do you offer your customers' contact information?
We have to apply for our customers,if they agree,We can offer it,Please understand us.
4)Can you offer door to door service?
Yes,We can.
5)Have you trade assurance in alibaba?
Yes,We have.
6)What is your minimum order quantity?
Usually, our MOQ will be 1x20fcl . But we also accept 1 set.
7)How to ship the goods?
A:If you have own forwarder in China, we can just provide you EXW price.
B:If you need us to make shipment for you, we can provide you FOB, CIF etc.
C:In a word, by sea is main shipment, More options, you can suggest.
8)What's your payment term?
A: Payment: 100% payment if the total amount is less than USD2000
B: 30% deposit and 70% balance before shipment if the total amount is more than USD2000;
C: Lead time: 7-15 working day in regularly,or subject to the order quantity.
Contact name: Wendy Yue
Mobile ( WhatsApp ): +86 13164317138
Skype: jtdny01
Detailed information about the Agricultural machine /agricultural equipment/agricultural farm tractor for promotion, welcome to contact us. We are always at your service.
