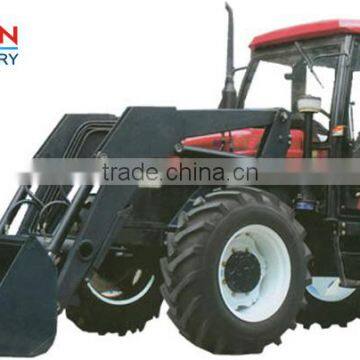

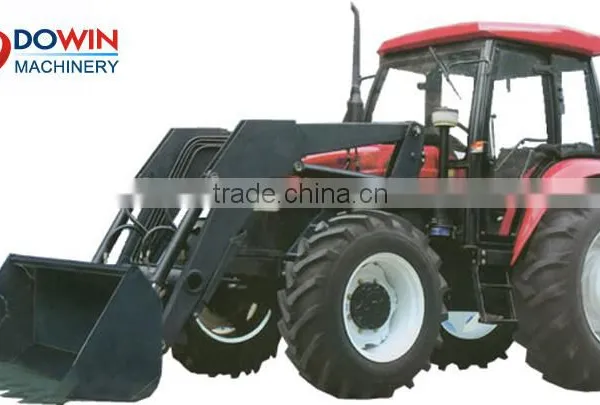

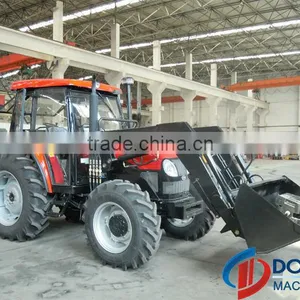

Multi-purpose machine front loader end tractor for cattle farming
1. Multi-purpose machine front loader end tractor for cattle farming

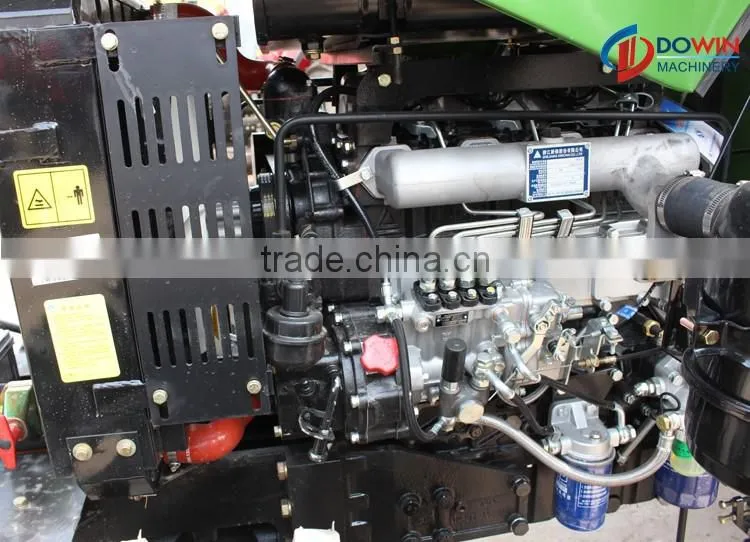

2. YT4B3-22 diesel engine
3. 8 F + 2 R gear shift
4. Hydraulic steering
5. Dual-stage clutch tractor with 2 speed
I. Features of Multi-purpose machine front loader end tractor for cattle farming
1. Direct injection engine, fuel-efficient and durable good maintenance;
2. Dual stage clutch, shuttle shift gears transmission, easy to operate;
3. New streamlined hood, beautiful appearance;
4. Stepless adjustable wheel track, suitable for different field operations;
5. Hydraulic steering, smart and covenient.
6. Optional paddy field tyres and pneumatic trailer brakes, provide all the functionality for puddy field operations, transportation etc;
II. Parameters of Multi-purpose machine front loader end tractor for cattle farming
| Main Parameters | ||||
| Model No. | DT504 | DT604 | DT704 | DT804 |
| Drive Type | 4*4 | 4*4 | 4*4 | 4*4 |
| Engine | ||||
| Engine Type | QC498T50 | YT4B2-22 | YT4B3-22 | LR4B5-23 |
| Rated Power of Engine(kw/rpm) | 36.8 | 47.8 | 51.5 | 59 |
| Displacement(L) | 2.977 | 4.16 | 4.58 | 4.95 |
| Transmission System | ||||
| Clutch | One-piece, dry, double-action | One-piece, dry, double-action | One-piece, dry, double-action | One-piece, dry, double-action |
| No. of Gears (F+R) | 8F+4R | 8F+2R | 8F+2R | 16F+8R |
| Shift Method | sliding sleeve | sliding sleeve | sliding sleeve | sliding sleeve |
| Working Device | ||||
| Linkage Type | Three-point linkage | Three-point linkage | Three-point linkage | Three-point linkage |
| PTO Speed | 540/760r/min | 540/760r/min | 540/760r/min | 760/1000 |
| Tillage Depth Adjustment | Draft, Position control | position and float | position and float | position and float |
| Parameter | ||||
| Overall Dimension(mm) | 3768*1640*2130 | 4052*1900*2650 | 4052*1900*2650 | 4290*2100*2810 |
| Min. Operation Mass (kg) | 2300 | 3140 | 3140 | 3720 |
| Wheel Base (mm) | 1992 | 2260 | 2260 | 2195 |
| Min. Ground Clearance (mm) | 304 | 340 | 340 | 379 |
| Front/Rear Wheel Tread | 1300/1200-1500 |
1350,1450,1550,1650 | 1200/1200-1300 | 1610/1620,1720,1820,1920 |
| Tyre Size | 28 | 8.3-24/14.9-30 | 8.3-24/14.9-30 | 11.2-24/16.9-34 |
| Braking and Steering | ||||
| Steering Type | Hydraulic steering | Hydraulic steering | Hydraulic steering | Hydraulic steering |
| Braking system | Mechanical control, wet disk brake | Mechanical control, disk brake | Mechanical control, disk brake | gydrostatic pedal control, disk brake |
| Options: All these types can optional for ROPS, sunshade, swing drawbar, front/rear ballast. | ||||
III. More photos of Multi-purpose machine front loader end tractor for cattle farming

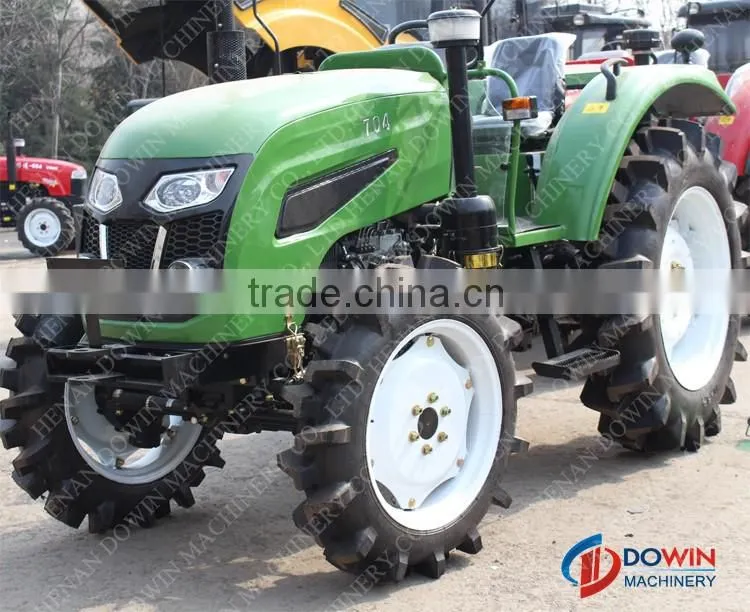

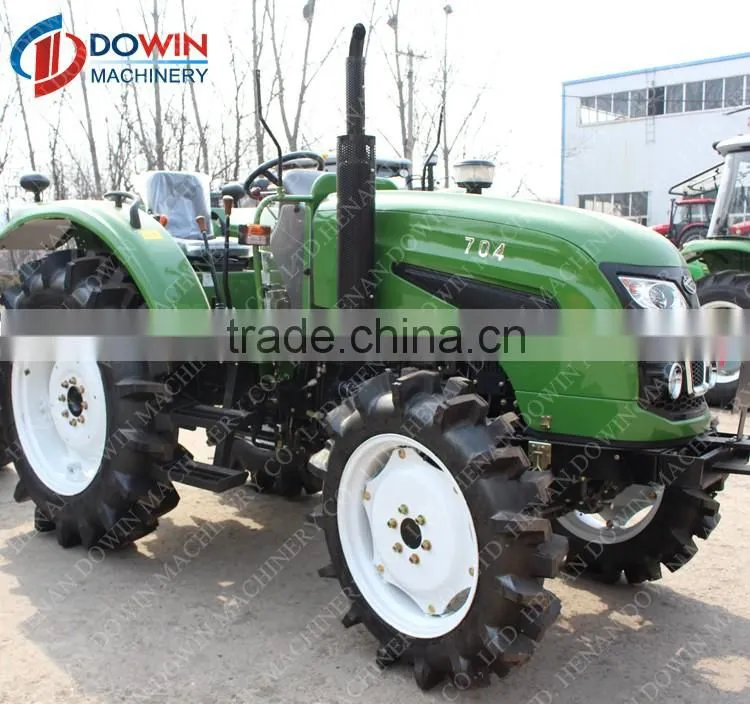

1. Basic configuration of DT704 farm tractor

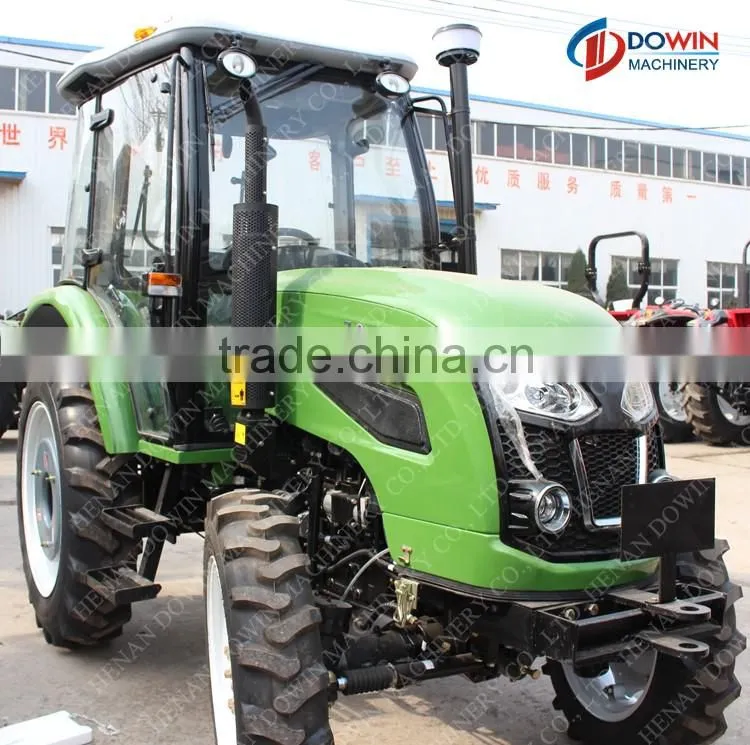

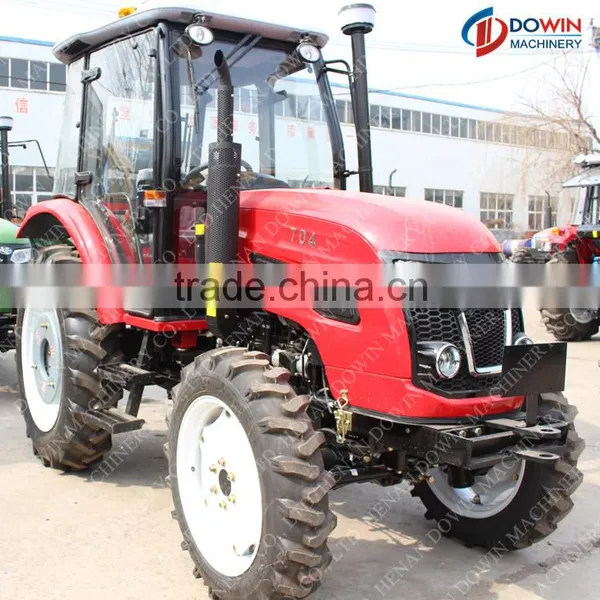

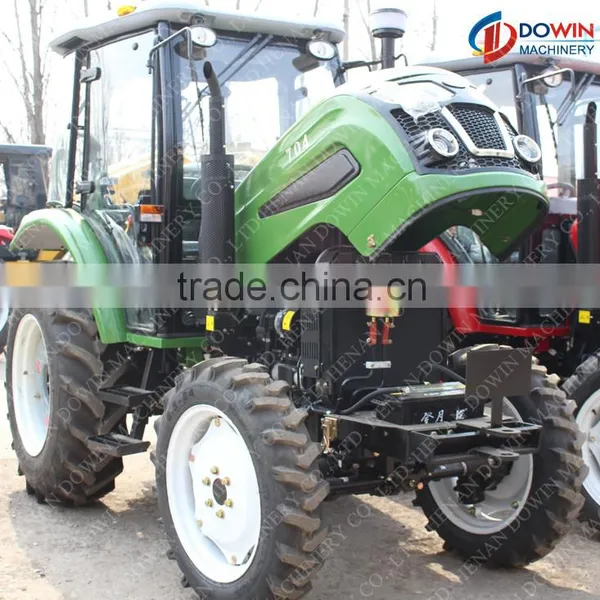

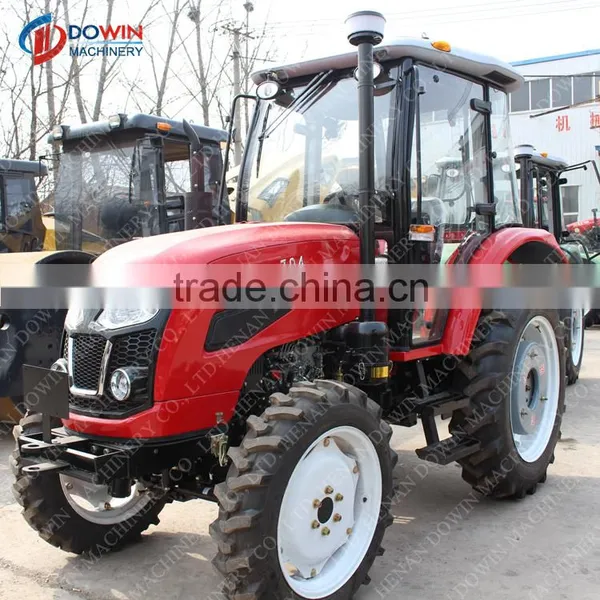

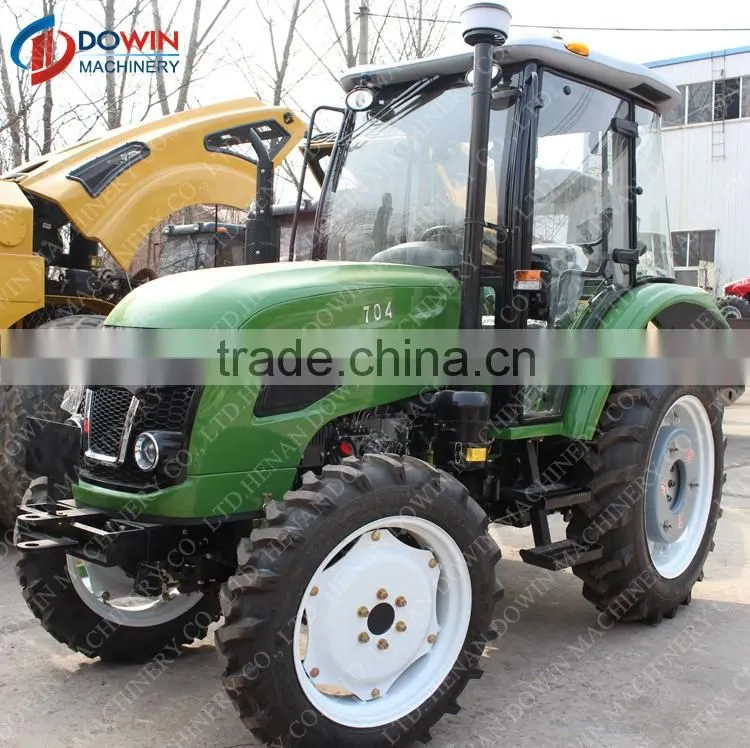

2. DT704 farm tractor with cabin
IV. Main parts of Multi-purpose machine front loader end tractor for cattle farming

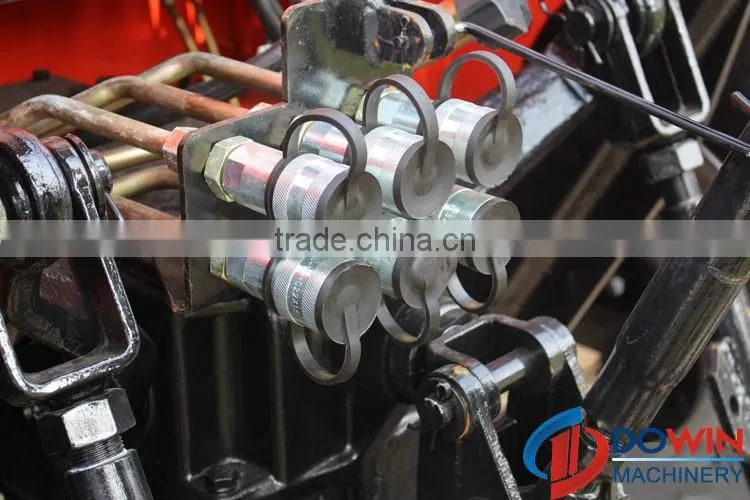

1. Hydraulic output

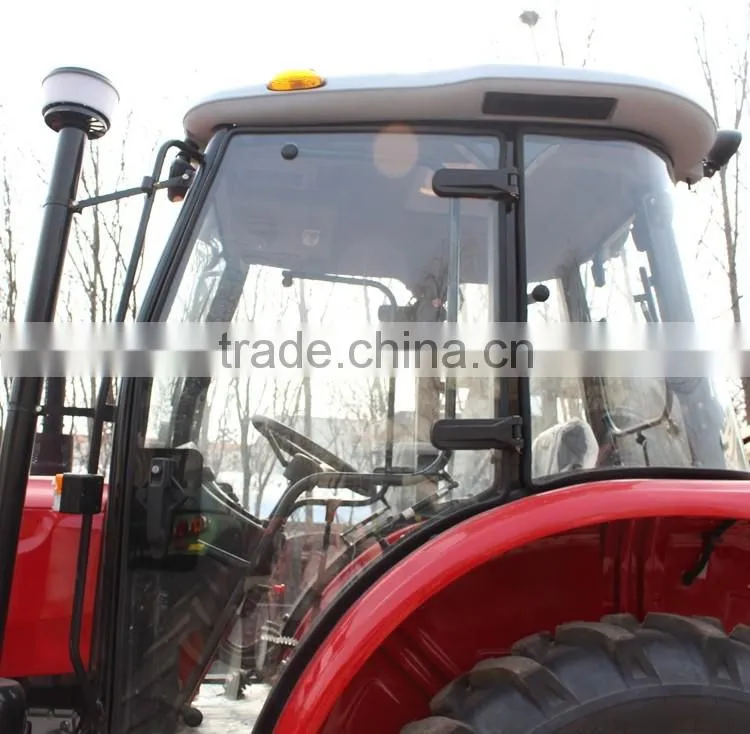

2. Beautiful and durable cabin

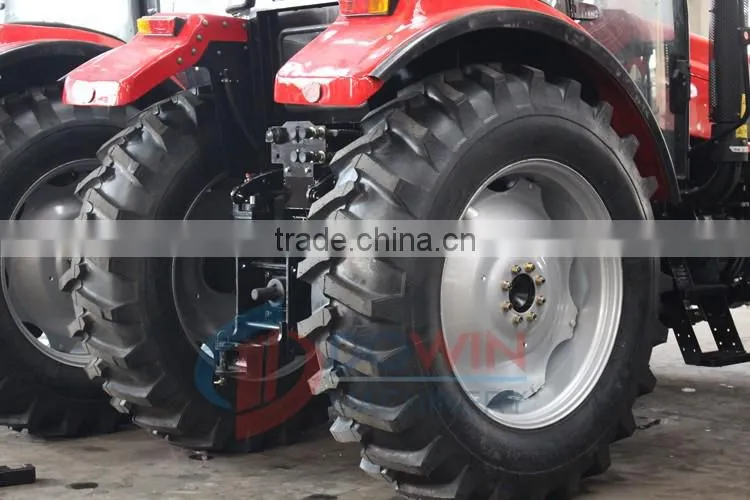

3. Durable tyre

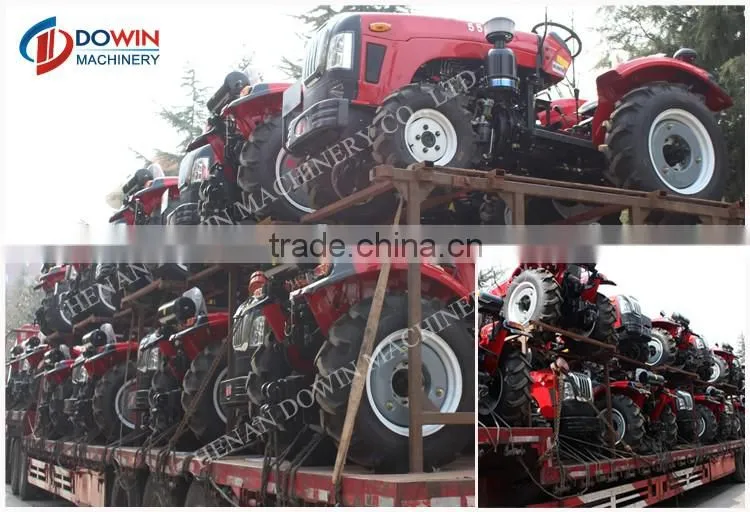

V. Packaging and shipping detailed of Multi-purpose machine front loader end tractor for cattle farming
4 units of DT704 without iron frame can be loaded in one 40HQ.
2 units of DT704 without iron frame can be loaded in one 20GQ.
8 units of DT704 packing in iron frame can be loaded in one 40HQ.
4 units of DT704 packing in iron frame can be loaded in one 20GQ.

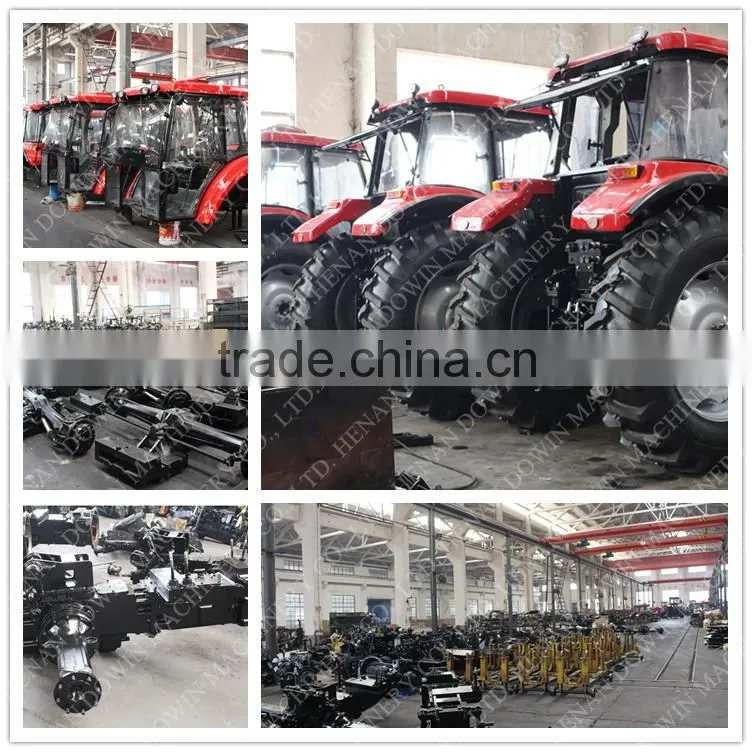

VI. Company profile of Multi-purpose machine front loader end tractor for cattle farming

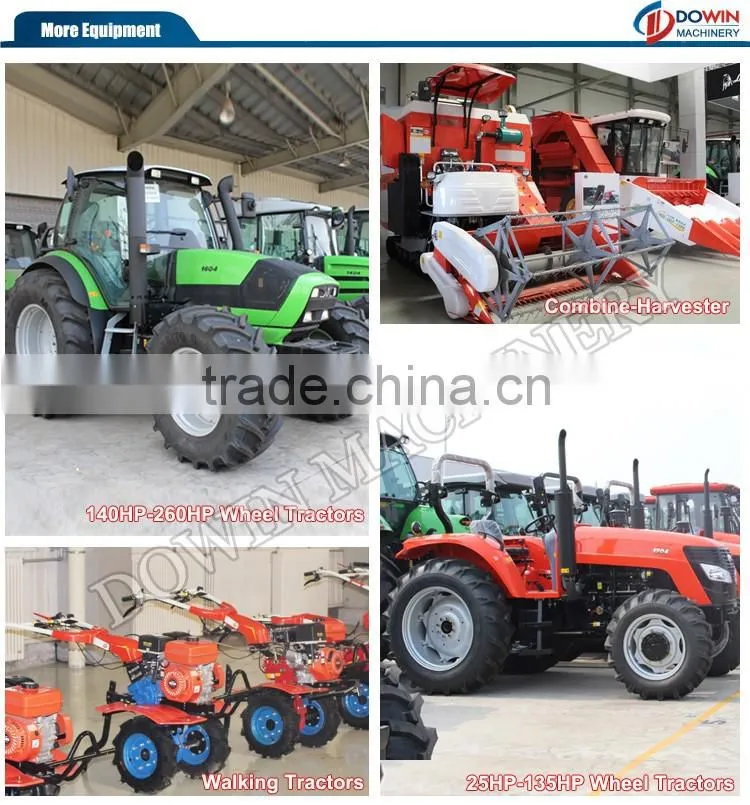

VII. We also supply
1. 18-180 Horse Power farm tractor
2. Matched agricultural implements
3. Cassava processing equipment
VIII. Contact information of Multi-purpose machine front loader end tractor for cattle farming
1. Contact person: Wendy Yue
2. WhatsApp/ Line/ Mobile: 0086 13164317138
3. Skype: jtdny01
Any questions about farm Multi-purpose machine front loader end tractor for cattle farming, welcome to contact us, we are always at your service.
