Introduction:

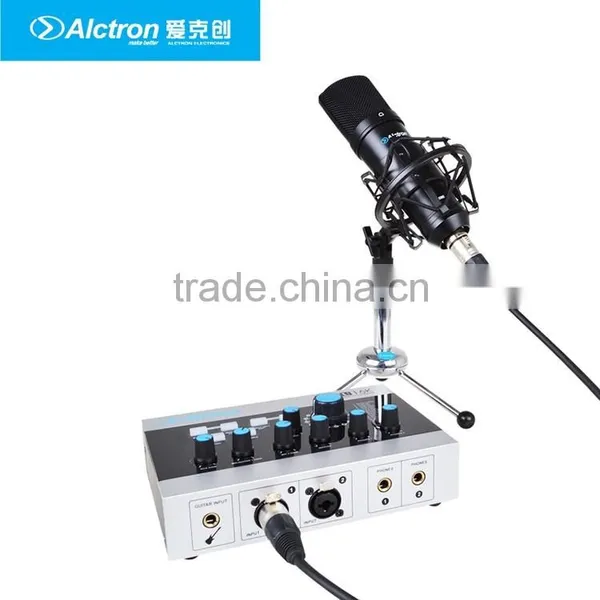

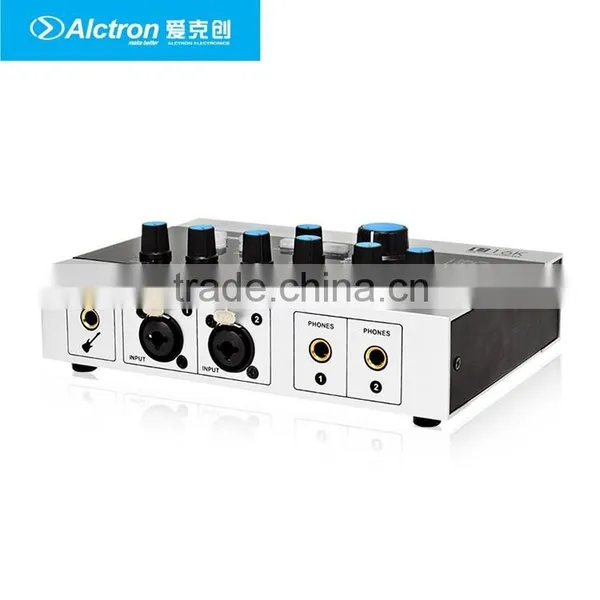

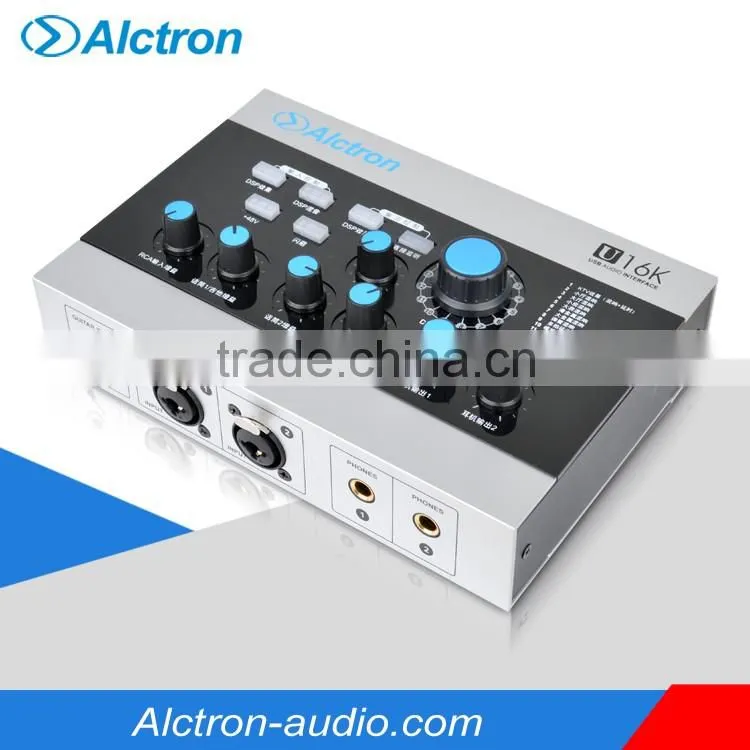

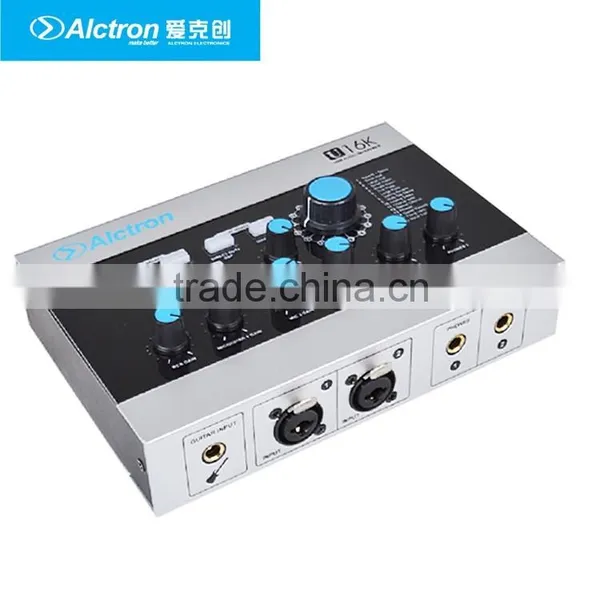

U16K MKII USB interface transforms your computer into a recording studio. This complete recording solution gives you XLR inputs for microphones, TRS inputs for instruments. The durable aluminum housing is perfect for sessions on the go. And zero-latency audio monitoring and built-in 16-DSP effecst with control knob make recording your next big hit easier than ever. A perfect center for your home or portable studio, the U16K is a fully featured USB audio interface for all of your recording needs. Dual XLR / TRS combo inputs feature solid-state preamps and 48V phantom power for your condenser microphones. Each track sports a 1/4"
TRS input that's switchable for line or instrument inputs.
Specifications:
MIC INPUT:
* Frequency response: 22Hz to 50kHz (+/-0.2db)
* Dynamic Range: 90dB, A-weighted
* Signal-to-Noise Range: -90dB, A-weighted
* THD+N: <0.0061% (-86dB)
* Crosstalk: -85dB @ 1kHz
* Input Impedance: Mic in: 1.8K Ohms, typical
* Adjustable Gain: +39dB
LIINE INPUTS (RCA IN, UNBALANCED):
* Frequency Response: 22Hz to 20kHz (+/-0.2db)
* Dynamic Range: 90dB, A-weighted
* Signal-to-Noise Range: -90dB, A-weighted
* THD+N: <0.003% (-86dB)
* Crosstalk: -90dB @ 1kHz
* Input Impedance: Mic in: 10K Ohms, typical
* Adjustable Gain:+8dB
INST INPUT:
* Frequency Response: 22Hz to 20kHz (+/-0.2db)
* Dynamic Range: 90dB, A-weighted
* Signal-to-Noise Range: -90dB, A-weighted
* THD+N: <0.0061% (-86dB)
* Crosstalk: -75dB @ 1kHz
* Input Impedance: Mic in: 500K Ohms, typical
* Adjustable Gain:+38dB
HEADPHONE OUTPUTS:
* AT MAXIMUM VOLUME; INTO 100 OHM LOAD:
* Frequency Response: 22Hz to 20kHz (+/-0.2db)
* Power into Ohms: 20 mW into 100 Ohms
* THD+N: <0.06% (-66dB)
* Crosstalk: -90dB, A-weighted
* Load Impedance: 32 to 600 Ohms
