high efficiency fully automatic screw oil press extruder
Brief Introduction of DOWIN Automatic screw oil press extruder:
DOWIN oil press is composed of such compoents as electric appliance control, hot pressing, adjustment, driving and vacuum oil filter. The squeezing worm is made of alloy steel treated by carburization to improve its surface hardness and wear resistance; The squeezing bars are grinded by surface grinder to ensure the accuracy of oil thread and improve oil extraction rate; The standard components for power distribution, vacuum and heating are famous brands to optinize machine configuration; The surface of machine are treated by stainless steel and chromium plating technology in accordance with the standards of food hygiene.
The disadvantage of traditional oil pressing methods include: the original workshop, simple and crude equipment, hulking operation, large floor area, high energy consumption, low oil extraction rate and bad hygienic conditions.
Features of DOWIN automatic screw oil press extruder
The comparative advantage of DOWIN high efficiency and energy-saving oil press: advanced design, reliable performance, simple operation and convenient maintenance.
1. Saving labor: it can save 60% labor for equal output and 40%labor cost per day for one or two people are able to make production;
2. Widely-used: it can be used to completely press more than 20 kinds of oil crops, such as peanuts, sesame, vegetable seeds, soybean, sunflower seed and flax by three stages pressing, low residual oil ratio;
3. Pure oil quality: the vacuum oil filtering is used to remove residue so as to ensure the pure oil quality and meet the standard of health quarantine;
4. Small land-using: an area of 10-20m2 workshop can meet the demands of processing.
Main parameters of automatic screw oil press extruder
| Item | D-1685 | D-1688 | ZL-120 | 6YL-150 | 6YL-165 | |
| Diameter of squeezung worms | 80mm | 100mm | 120mm | 148mm | 160mm | |
| Speed of squeezing worms | 60r/min | 40r/min | 36r/min | 36r/min | 35r/min | |
| Diameter of internal circle of pressing chest | 82mm | 102mm | 122mm | 150mm | 162mm | |
| Configuration Power | Main Engine | 6-5.5kw | 6-7.5kw | 6-11kw | 4-Y30kw | 4-22/30kw |
| Heater | 3kw | 3.5kw | 4kw | 5kw | 6kw | |
| Handling capacity | 80-160kg/h | 150-260kg/h | 260-400kg/h | 400-500kg/h | 500-650kg/h | |
| Weight of complete machine | 780kg | 1100kg | 1500kg | 1800kg | 2000kg | |
| Overall size(L*W*H) | 1700*1300*1600 | 2000*1400*1750 | 2050*1550*1800 | 2200*1460*1750 | 2300*1700*1900 | |

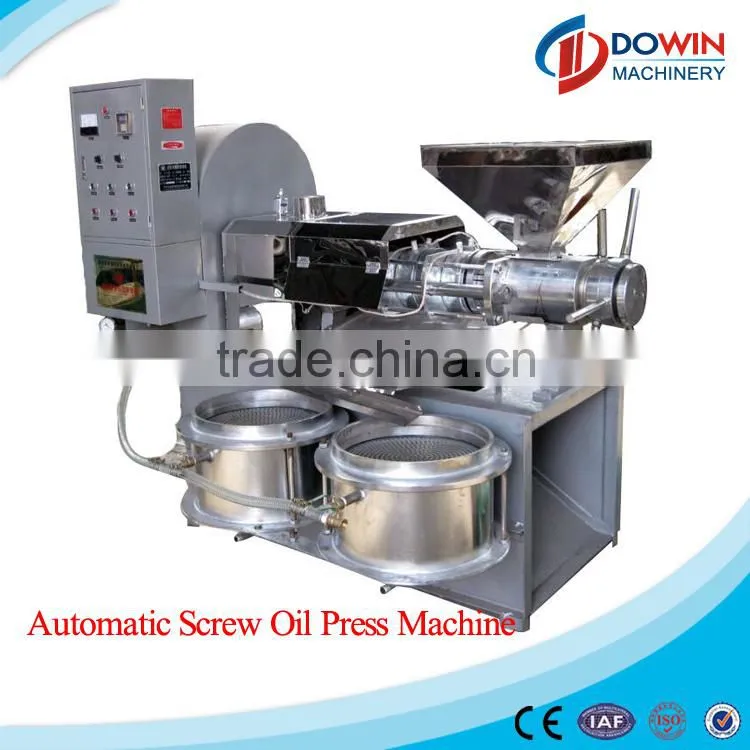

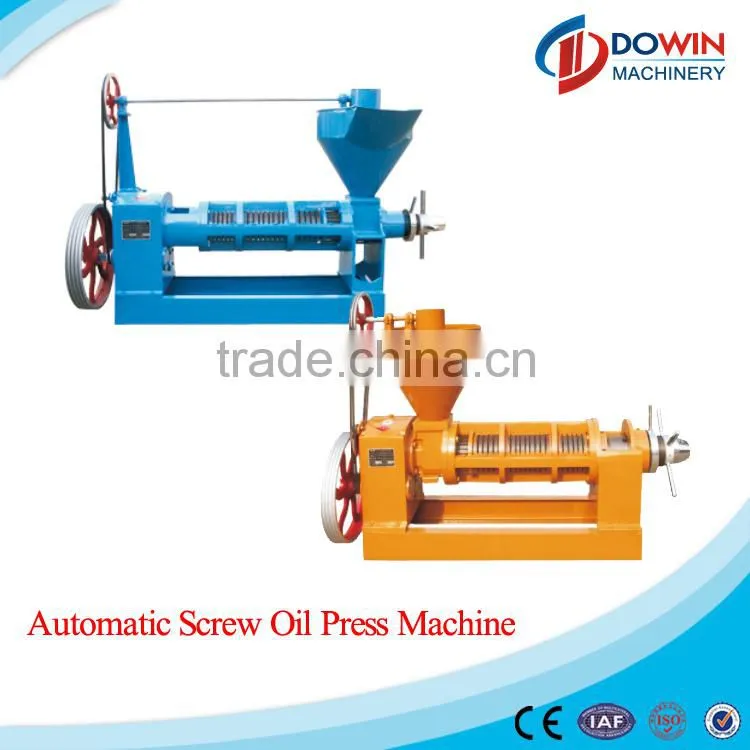

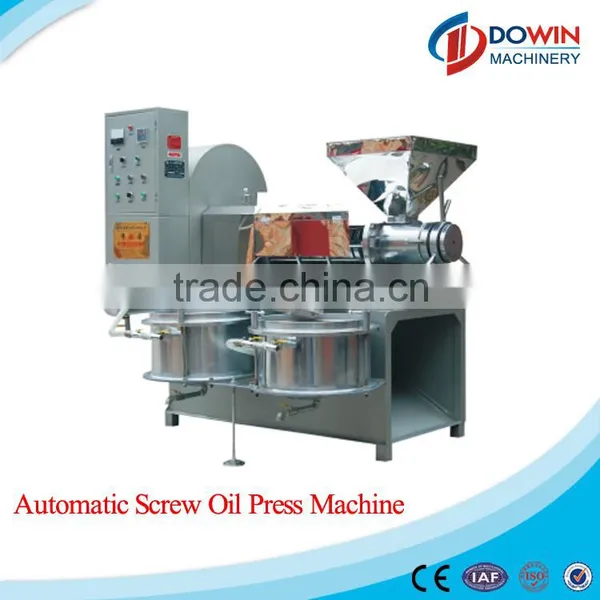

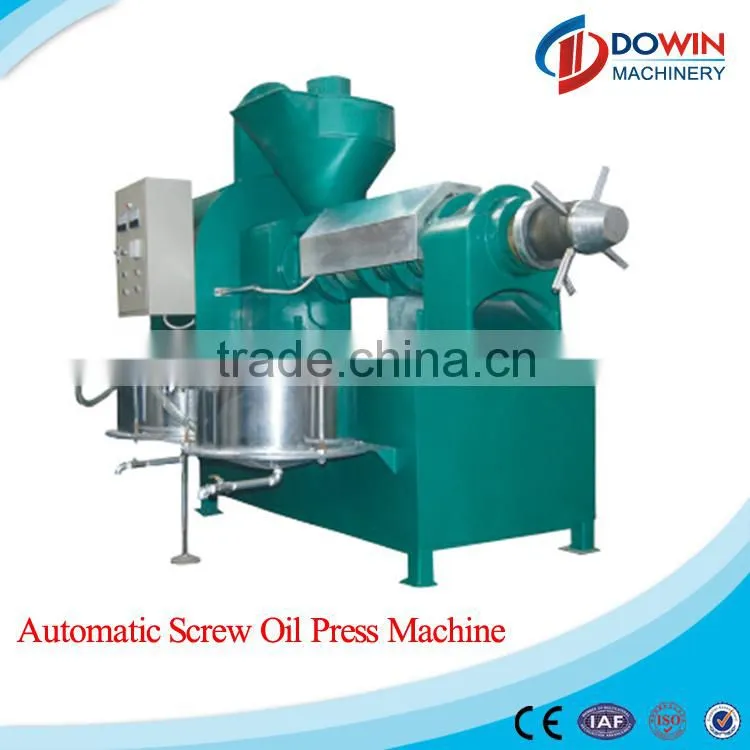

More pictures of automatic screw oil press extruder

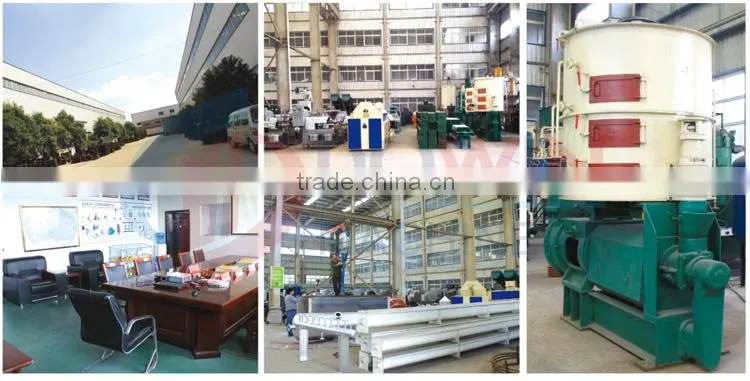

Henan Dowin Machinery Company is the main manufacturer of oil pressing and refining equipment with more than 10 years experience in China. Our main machines cover all kinds of oil press, dryer machine, filter, extraction equipment, oil refinery and fractionation equipment and so on.
We have the professional technology, research, design and sale teams. And our main markets cover Africa (such as Nigeria, Ghana, Cameroon, Gabon and so on), Europe, America.....
1. How can we see the working machines?
You are warmly welcome to visit our factory, our engineers will explain you the machines details one by one.
2. How can we choose the right model number oil press?
You can choose the right model number according to the raw material you use and the output capacity you need.
3. Will you offer training?
Yes, free training will be offered after the installation.
4. Where is your factory?
Our factory is located in Zhengzhou city which is the capital of Henan province, China. It is very convenient for you to visit here, no mater you come here by train or by air.
5. What's the normal delivery time?
Normally, we will deliver the machine to you in 7 days after receipt of the advanced payment.
