Specifications
Plastic UHMWPE Sheet Price1.Impact resistant
2.self-lubricating
3.wear resistant
4.Low water absorption

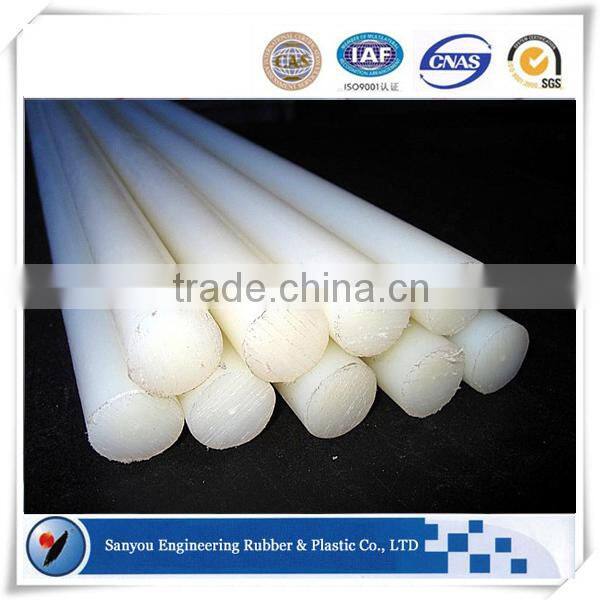

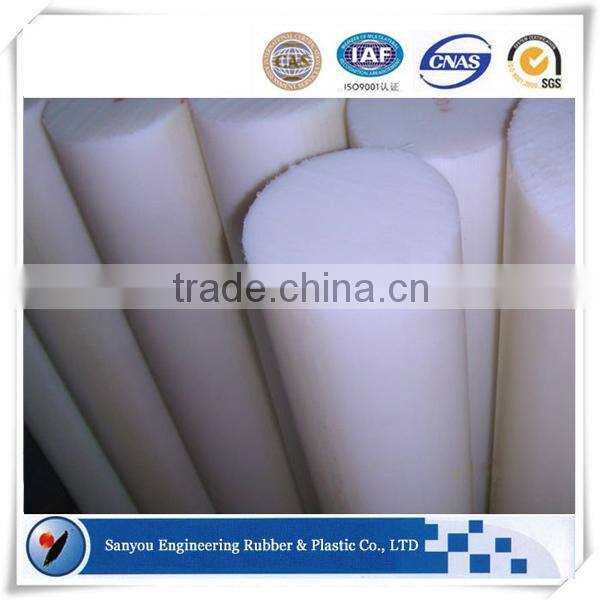

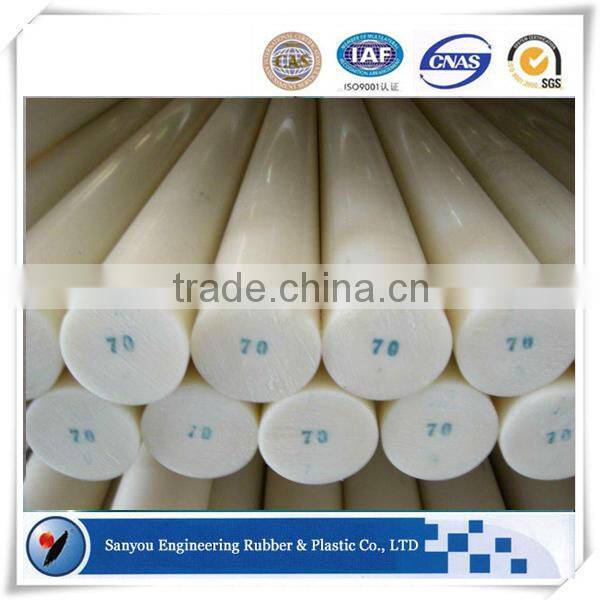

Customize polyethylene 100mm UHMWPE block round
1. Description uhmwpe hard plastic plate
UHMWPE sheets (Ultra high Molecular Weight Polyethylene) is a thermoplastic engineering plastic with the average molecular weight more than 6.0 million. (PE only has the molecular weight between twenty to two hundred thousand.) This kind of material with five top performance of high-wear-resistance, good-chemical resistance, low-temperature resistance, self-lubrication and high-impact resistance, which is regarded as a surprised engineering plastic of excellent comprehensive capacity and competitive price.
2. Specification:
Thickness: 5mm-200mm
Size: 1000*3000mm,1200*4000mm,1500*3000mm
3.Main characteristics of UHMWPE Natural Sheet :
1.Abrasive resistance which always have in thermoelectricity polymer.
2.Best shock resistance even in low temperature.
3.Low frictional factor, and well sliding bearing material.
4.Lubricity( no caking, in adhesion) .
5.Best chemical corrosion resistance and stress craze resistance.
6.Excellent machinery process ability .
7.Lowest water absorption(<0.01%) .
8.Paragon electric insulativity and antistatic behavior .
9. Nice high energy radioactive resistance.
10.Density is lower than other thermoplastics (< 1g/m3).
11.Long using temperature range: -269°C--85°C.
4.The main performance comparison
High abrasion resistance
Materials |
UHMWPE |
PTFE |
Nylon 6 |
Steel A |
Polyvinyl fluoride |
Purple steel |
Wear Rate |
0.32 |
1.72 |
3.30 |
7.36 |
9.63 |
13.12 |
Good self-lubricating properties,low friction
Materials |
UHMWPE -coal |
Cast stone-coal |
Embroidered plate-coal |
Not embroidered plate-coal |
Concrete coal |
Wear Rate |
0.15-0.25 |
0.30-0.45 |
0.45-0.58 |
0.30-0.40 |
0.60-0.70 |
High impact strength, good toughness
Materials |
UHMWPE |
Cast stone |
PAE6 |
POM |
F4 |
A3 |
45# |
|
Impact strength |
100-160 |
1.6-15 |
6-11 |
8.13 |
16 |
300-400 |
700 |
5. Applictions of UHMWPE Natural Sheet
1. Lining: Silos, hoppers, wear-resistant plates, brackets, chute like reflux devices, sliding surface, roller, etc.
2. Food Machinery: Guard rail, star wheels, guide gear, roller wheels, bearing lining tile, etc.
3. Paper-making machine: Water lid plate, deflector plate, wiper plate, hydrofoils.
4. Chemical industry: Seal filling plate, fill in dense material, the vacuum mold boxes, pump parts, bearing lining tile, gears, sealing joint surface.
5. Other: Agricultural machinery, ship parts, electroplating industry, extreme low temperature mechanical components.
