Mini 25CBM Cement Concrete Batching Plant Factory Price
1.Model: Mini 25CBM Cement Concrete Batching Plant Factory Price
2.Type: Stationary hopper type concrete mixing plant
3.Productivity: 25m3/hr
4.Price: negotiable
Brief introduction of Mini 25CBM Cement Concrete Batching Plant Factory Price
hopper type twin shafts hzs 25 Mini 25CBM Cement Concrete Batching Plant Factory Price of this series has intellectually automatic function. It belongs to intermittent forced mixing station. The customers are satisfactory with its characteristics like compact structure, flexible arrangement, less investment, and convenient assembly and disassembly. It can use many manners of combining and charging according to customers’ needs. It can produce dry-rigid, half dry-rigid ,plastic ,and every distribution ratio concrete and use the mixing technology of wrapping-stone mode which can improve the quality of concrete greatly.
It’s the ideal equipment for constructions of middle-small buildings, roads and bridges, the tube piles and cement precast factories.
Features of Mini 25CBM Cement Concrete Batching Plant Factory Price
1).The HZS25 hopper type concrete-mixing plant for sale is advanced, with a high degree of automation, mixing of good quality, high efficiency, low energy consumption, low noise, easy operation, unloading speed, liner and leaf, long service life and maintenance convenience etc.
2).The HZS25 hopper type concrete-mixing plant for sale applicable to plastic, rolling and lightweight aggregate concrete, cement mortar and mortar mixing.
3).The HZS25 hopper type concrete-mixing plant for sale adopts the material, and mobile, is one of the ideal construction machinery.
Main technical parameters of Mini 25CBM Cement Concrete Batching Plant Factory Price
Model |
HZS25 |
HZS35 |
HZS60 |
HZS90 |
HZS120 |
HZS150 |
Max. Productivity (m3/h) |
25 |
35 |
60 |
90 |
120 |
150 |
Mixer |
JS500 |
JS750 |
JS1000 |
JS1500 |
JS2000 |
JS3000 |
Batching System |
PLD1200 |
PLD1200 |
PLD1600 |
PLD2400 |
PLD3200 |
PLD4800 |
Discharging Height(m) |
1.7-3.8 |
2.5-3.8 |
3.8 |
3.8 |
4 |
4 |
The Max. Diameter of the aggregates (mm) |
60-80 |
60-80 |
60-80 |
60-80 |
60-80 |
60-80 |
Automatic Cycle Period(s) |
60 |
60 |
60 |
60 |
60 |
60 |
Weighing precision of Aggregate |
±2% |
±2% |
±2% |
±2% |
±2% |
±2% |
Weighing precision of Cement |
±1% |
±1% |
±1% |
±1% |
±1% |
±1% |
Weighing precision of Water |
±1% |
±1% |
±1% |
±1% |
±1% |
±1% |
Weighing precision of Additive |
±1% |
±1% |
±1% |
±1% |
±1% |
±1% |
Power(kw) |
50.25 |
64.4 |
105 |
139 |
175 |
260 |

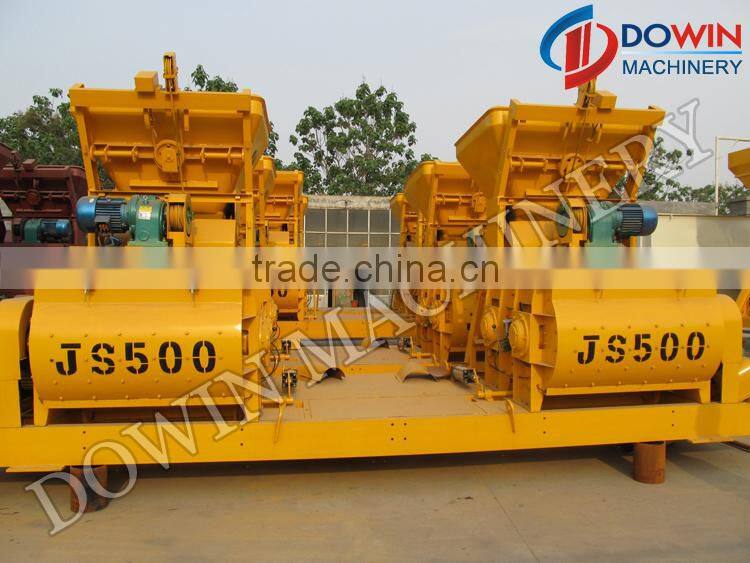

Details photos of Mini 25CBM Cement Concrete Batching Plant Factory Price
A whole complete Mini 25CBM Cement Concrete Batching Plant Factory Price -Working process
1. Mixing System
JS twin-shaft concrete mixer or JN planetary concrete mixer can be chose according to client;
Discharging height is 1.7-3.8(m);
Pneumatic/Hydraulic Control;
Easy replacing of wearing parts, such as liner plates.
2. Weighing System
Water weighing/ Cement weighing/ Additive Weighing/ Aggregate Weighing.
3. Lifting System
Normally Lifting hopper be used in mixing plant less than 90m3/h, and belt conveying system be used in mixing plant
for HZS90 and above.
4. Control System
PLC/Centralized Control with the emergency stop button and safety control key;
TV monitoring systems for batching machine, concrete mixer and discharging mouth are optional for clients.
5. Cement Screw Conveyor
Diameters of 219mm/273mm can be optional, with efficient motors ad precision reducer.
6. Cement system
Capacity of 50t, 100t, 150t and 200t are optional, with the cement smoke filter;
One-piece/Modular tank are optional.
7. Aggregate System
2/3/4 hoppers with belt conveyor, pneumatic discharging mode with independent/ cumulative weighting.
8. Additive System
High-lift additive pump and special corrosion-resistant pipes.
9. Pneumatic system
Reliable quality Chinese famous air compressor, oil-water separator with solenoid valve.
1. Can we see the equipment before order?
You are warmly welcome to visit our factory, and our engineers will explain you the machines details one by one.
2. How many person are needed for the mixing plant?
It depends on the line and capacity of the mixing line, 2-3 workers will be enough to operate simplified mixing line, and over the 60m3/h line will need 4-5 people.
3. Will you help us to build the factory and install the machine?
Yes, our engineers will be sent to your site to help you for the installation.
4. Will you offer training?
Yes, free training will be offered after the installation.
5. Where is your factory?
Our factory is located in Zhengzhou city which is the capital of Henan province, China. It is very convenient for you to visit here, no mater you come here by train or by air.
6. Have your Mini 25CBM Cement Concrete Batching Plant Factory Price get any certifications?
