[RD-MQA1200-1800]Automatic Lead Edge Feeding Rotary Die Cutting Machine

Name: [RD-MQA1200-1800]Automatic Lead Edge Feeding Rotary Die Cutting Machine
Brand: RuiDa
SKU: 116136743
Availability: InStock

[RD-MQA1200-1800]Automatic Lead Edge Feeding Rotary Die Cutting Machine thumbnail-1

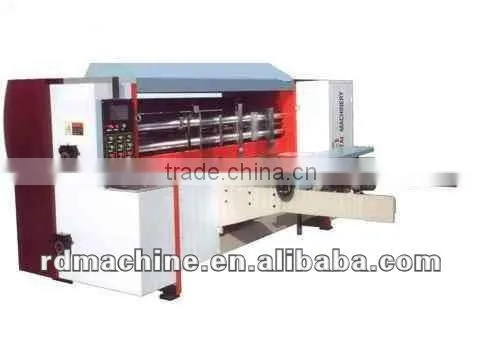

[RD-MQA1200-1800]Automatic Lead Edge Feeding Rotary Die Cutting Machine photo-1

US$ 10,000 - 35,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Application:

Other, Machinery & Hardware

Packaging Type:

Cartons

Contact Supplier Request Quote Chat Now

Pujiang Ruida Industry & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Application Other, Machinery & Hardware

Packaging Type Cartons

Packaging Material Plastic

Automatic Grade Automatic

Driven Type Electric

Power 4.5kw

Place of Origin Zhejiang, China

Brand Name RuiDa

Model Number RD-MQA1200-1800

Specifications

- Numerical control and lead edge feeding
- High quality & best service
- Competitive price
- Easy operation & maintenance

Features

NC control unit
- Human-computer interface design, equipped with high precise and complete numerical PLC control system.
- Main machine is driven by frequency conversion motor.
- Front and rear control panels are concisely concentrated and operated conveniently.
- The machine is combination controlled by light, electricity and compressed air.
- All the electrical components are in according with the international standard and named brand.
Paper feeding unit
- Automatic adsorption lead edge feeding cardboard, the feeding speed reaches to more than 160pcs/min with the die cutting precision of ±0.75mm.
- The phase position is electrical adjusted by planetary gear, it's able to adjust when starting up and shutting down.
- The front panel is manual adjusted while the side panel is adjusted by electrical automatically.
- The paper transmission roll equipped with a rubber surface to prevent crushing the cardboard, and improve the transmission accuracy.
Die cutting unit
- The slotting, corner cutting, creasing and punching will be accomplished in one time.
- The main structure and frame is made of high quality cast iron, with the thickness of 50mm.
- The die cutting roller is made of the high quality steel with the thickness of 30mm, and chrome plated, as well balance adjustment.
- Die cutting roller cylinder type auto separation unit can increase wear of rubber sleeve.
- Mechanical soft roll is able to lateral movement for 40mm, to make the rubber wear evenly.
- The soft roller auto self grinding unit improves the usage of rubber sleeve, 3 or 4 times grinding and re-use is available.
- Automatic compensation of linear velocity can guarantee that die-cutting size for each batch of cartons is in full accord.
- America imported polyurethane rubber is easy and convenient to install and has a long lifetime, able to die cutting for 12 million times.
- The transmission gear is made of high quality steel with the treatment of accurate grinding, has the advantage of low noise and long lifetime.

Specification

Model	Max. paper size	Min. paper size	Cardboard thickness	Max. design speed	Power	Weight
Model	mm	mm	mm	pcs/min	kw	kg
RD-MQA1200-1600	1200*1600	350*500	11	120	4.0	4000
RD-MQA1200-1800	*12001800**	*350500**	11	120	4.5	4500
RD-MQA1200-2000	1200*2000	350*500	11	120	5.0	5000
RD-MQA1200-2200	1200*2200	350*500	11	120	5.5	5500
RD-MQA1200-2400	1200*2400	400*500	11	120	6.0	6000
RD-MQA1400-1800	1400*1800	400*600	11	160	6.0	5000
RD-MQA1400-2000	1400*2000	400*600	11	160	6.5	5500
RD-MQA1400-2200	1400*2200	400*600	11	160	7.0	6000
RD-MQA1400-2400	1400*2400	400*600	11	160	7.5	6500
RD-MQA1400-2500	1400*2500	500*600	11	100	11.0	7000
