JZR500 diesel engine loading hydraulic pump concrete mixer
1.Model: JZR500 JZR500 diesel engine loading hydraulic pump concrete mixer
2.Motor type: diesel
3.Discharge capacity: 500L
4.Price: negotiable
If you want to know about our JZR series diesel engine concrete mixer machine, please kindly check the name below the picture.
|
|
| JZR350 diesel concrete mixer | JZR500 diesel concrete mixer |
Brief introduction of JZR500 diesel engine loading hydraulic pump concrete mixer
1. It is a middle capacity self-dumping mixer;
2. Heavy duty channel chassis provides durability and stronger support in the areas where you need it;
3. Jack legs give maximum stability throughout the mixing cycle;
4. Towable chassis with pneumatic tyred wheels;
5. Hopper lifting model: Hydraulic tipping hopper. Steel wire rope hoisting tipping hopper is available.
6. Power source: diesel engine. So it can also be used in areas without electricity supply.
Technical parameters of JZR500 diesel engine loading hydraulic pump concrete mixer
Model |
JZR500 |
|
Type |
Self-falling |
|
Towing |
Four-towing wheels |
|
Capacity of Loading(L) |
750 |
|
Capacity of Discharging(L) |
500 |
|
Capacity of water tank(L) |
140 |
|
Diesel Engine |
Model |
YANMAR CY1115-XE |
Power(kw) |
14.7 |
|
Speed(r/min) |
2200 |
|
Max Towing Speed(km/h) |
20 |
|
Max.Aggregate Size(mm) |
60 |
|
Output(m3/h) |
18~22 |
|
Hopper Lifting Model |
Hydraulic tipping hopper |
|
Tire |
6.50-16 |
|
4.00-8 | ||
Overall Dimension(L*W*H)(mm) |
3750x2240x3800 |
|
Total Weight(kg) |
2050 |
|

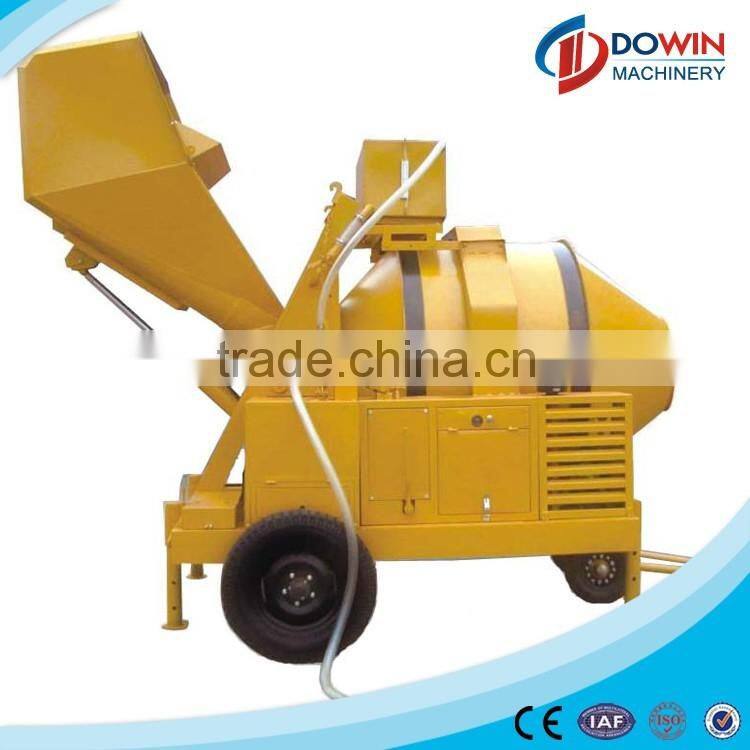

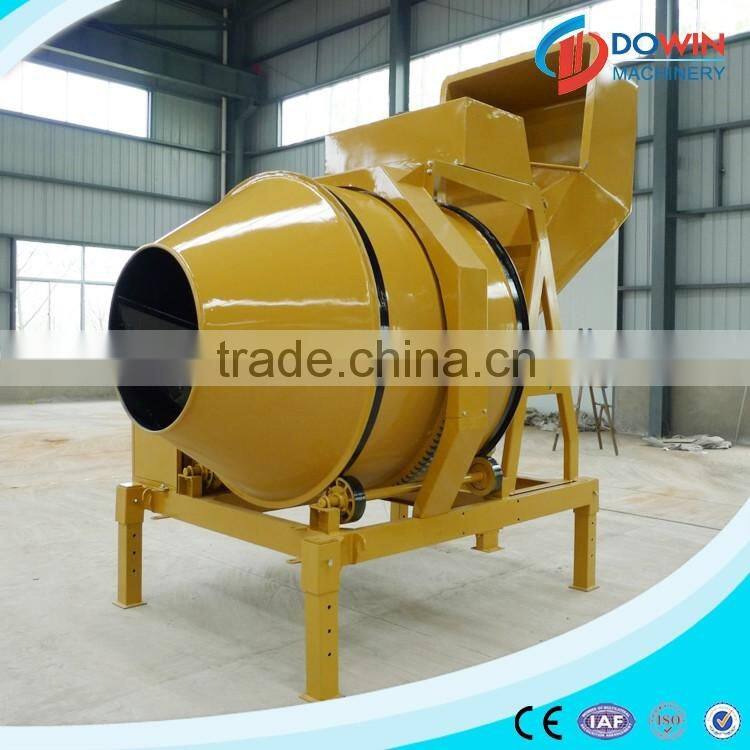

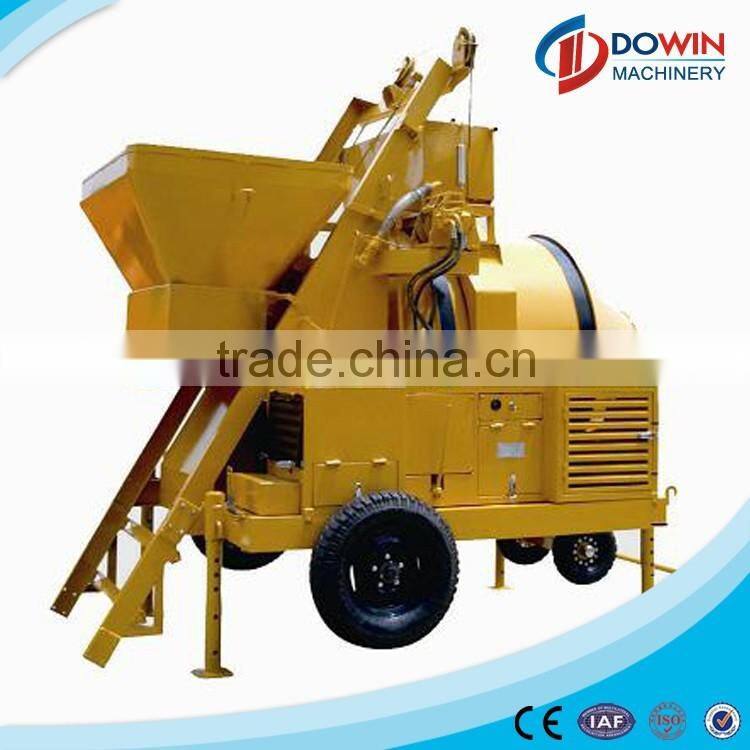

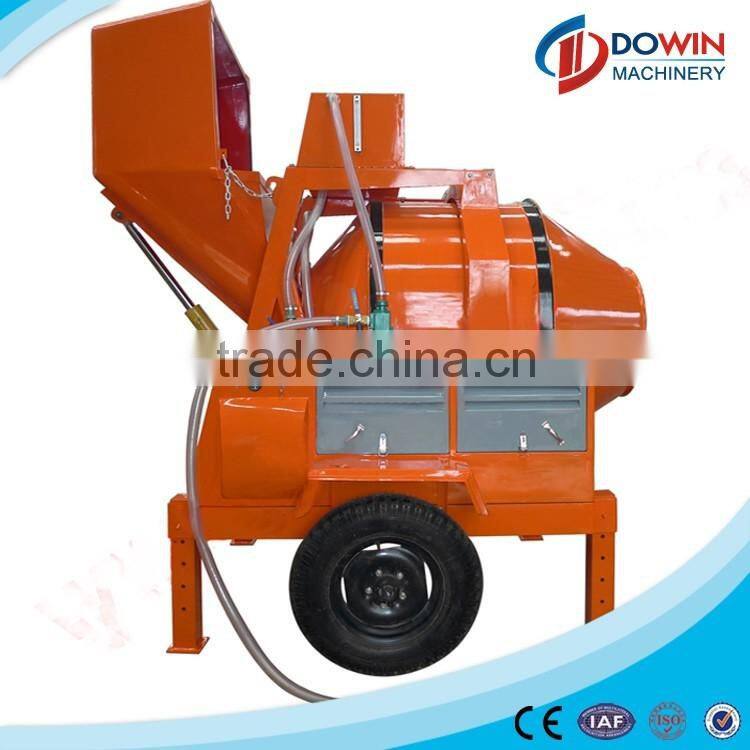

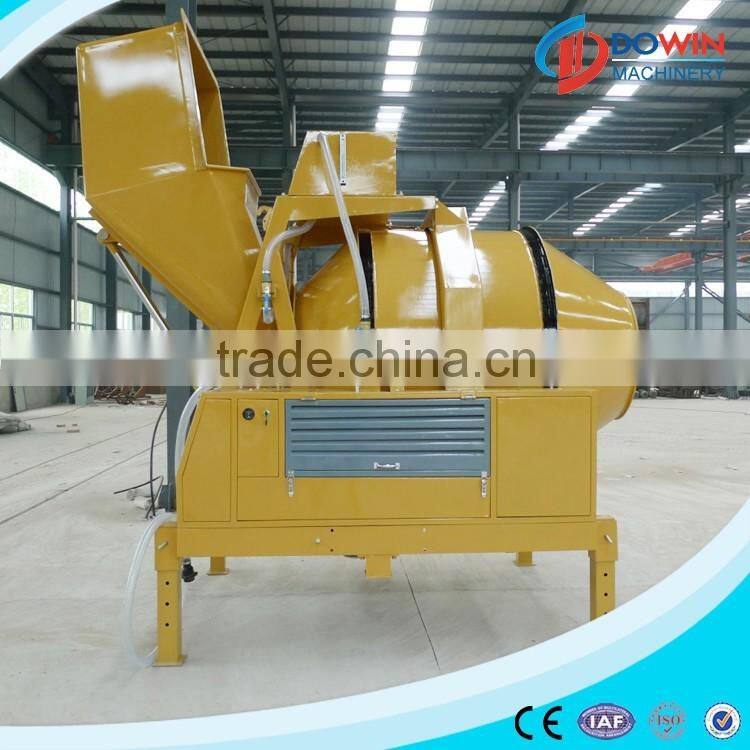

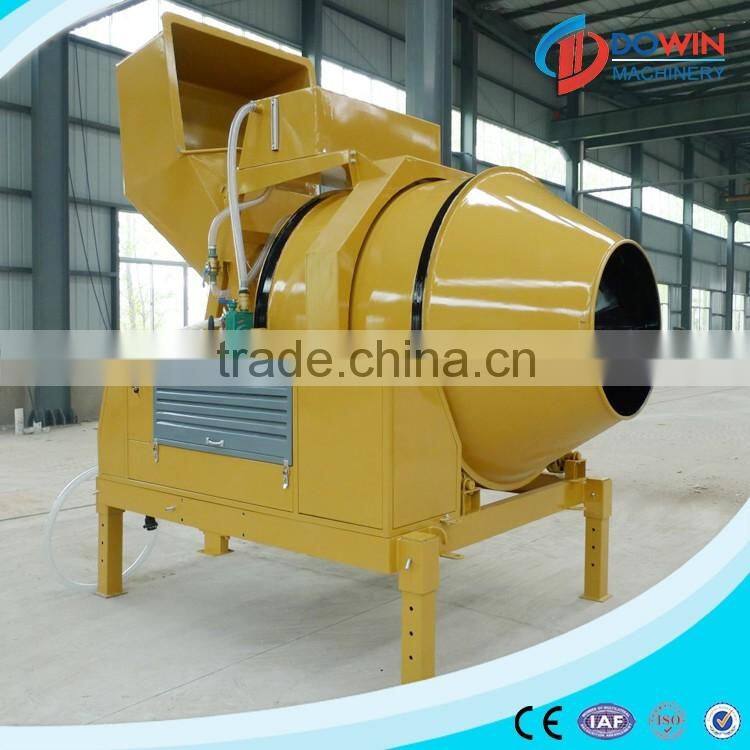

More pictures of JZR500 diesel engine loading hydraulic pump concrete mixer
,
Packing details of JZR500 diesel engine loading hydraulic pump concrete mixer
1.One unit of 20GP can load in one unit;
2.One unit of 40HQ can load in two units.
Company profile of JZR500 diesel engine loading hydraulic pump concrete mixer
Henan Dowin Machinery Co., Ltd. was founded in 2000 with more than 10 years experience in the area of construction equipment. Our main products are concrete mixing plants, mixer, pump, etc. We have exported our machine to Austria, Romania, Russia and Latin American.
Welcome to visit our factory! My mobile phone is +86 131 6431 7138.
1. Pre-sales Service
Work as your technical assistant, special design for you according to your site, construction
condition and other requirements.
2. Sales
a. Install and debug equipment according to contract;
b. After sales, the engineers will help you to do prepare works for the first start up and debug;
c. In the working site, we will supply operation and serviceman for you for free. Besides, we can
also make sure that the can get hold of the skills, such as usage, working requirement, correct
maintain way when the machine broke down.
3. After-sales Service
a. Remind users to maintain the machine at a certain time of each year;
b. Guarantee the spare parts for free;
c. Out of warranty period, we can supply you the after sale service and spare parts all the time.
More equipment we can supply
- mixer(JDC series, JS series, JZ series),
- concrete batching plant,
- station soil mixing station,
- batching machine,
- silo,
- construction elevator,
- concrete mixing truck,
- screw conveyor, etc.
If you have any questions about the JZR500 diesel engine loading hydraulic pump concrete mixer, please click my TradeManager on the right and chat with me online( 24-hour online ).
