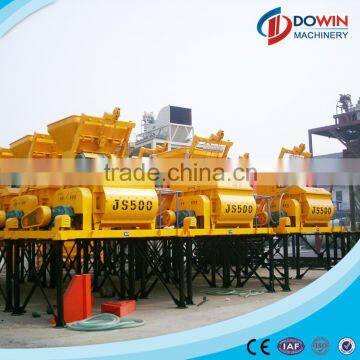

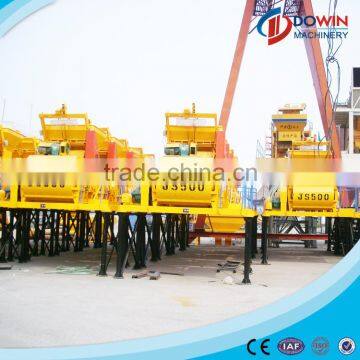

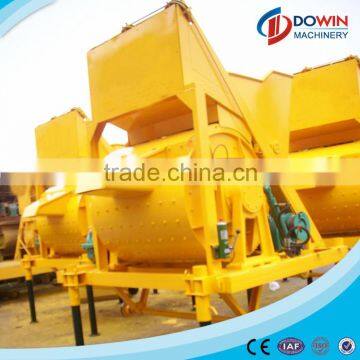

JS500 double shafts mini concrete mixer machine price for construction
1.Model: JS500 double shafts mini concrete mixer machine price for construction;
2.Productivity: 25m3/hr;
3.Energy: electric motor;
4.Certificate: CE, ISO9001;
5.Price: negotiation.
I. Brief introduction of JS500 double shafts mini concrete mixer machine price for construction
1-JS series twin shaft concrete mixer has double advantages that can work indenpently and can be consituted a simple concrete mixing plant with PLD series aggregate batching & weighting system.
It also can supply the mian mixer for a concrete mixing plant.
2-JS series twin shaft concrete mixer is widely used to the industrial and civil construction project. Such as road, bridge, water conservancy, wharf and so on. It also can be used for large, medium or small prefabrication factory.
3-JS series twin shaft concrete mixer has popular models and high production efficiency. it can mix dry and hard concrete, plastic concrete, fluidity concrete, lightweight aggregate concrete and all kinds of mortar.
II. Features of JS500 double shafts mini concrete mixer machine price for construction
1. The structure of the mixer is reasonable and compact, which can save space and easy to install and replaced;
2. Combined double floating seal and unique seal with high pressure grease, which makes the mixer with long lifetime;
3. The mixing arms are streamline in axial and in radial direction, which ensures the mixing speed fast and can reach to the homogenelty quickly. Meanwhile, the unique designed structure can improve the utilization rate of cement;
4. Scale board and paddle are made of managanese steel, which can increase the service life;
5. High pressure cleaning device, consistence probe are optional.
III. Technical parameters of JS500 double shafts mini concrete mixer machine price for construction
Items |
JS500 |
JS750 |
JS1000 |
|
Charge Volume |
500L |
750L |
1000L |
|
Discharge Volume |
800L |
1200L |
1600L |
|
Productivity |
≥25m3/h |
≥37.5m3/h |
≥50m3/h |
|
Max. Size of Aggregate |
80/60 |
80/60 |
80/60 |
|
Mixing Blade |
Rev. |
35r/min |
31r/min |
25.5r/min |
Qty. |
2*7 |
2*7 |
2*7 |
|
Mixing motor |
Model |
Y180M-4 |
Y200L-4 |
Y225S-4 |
Power |
18.5kw |
30kw |
37kw |
|
Hoisting motor |
Model |
YEZ132S-4-B5 |
YEZ132M-4-B5 |
YEZ160S-4 |
Power |
5.5kw |
7.5kw |
15kw |
|
Water pump motor |
Model |
50DWB20-8A |
65DWB35-5 |
KQW65-100I |
Power |
750w |
1.1kw |
3kw |
|
Hoisting speed of hopper |
18m/min |
18m/min |
21.9m/min |
|
Overall dimension(L*W*H) |
Transportation situation |
3050*2300*2680mm |
3650*2600*2890mm |
4640*2250*2250mm |
Working situation |
4461*3050*5225mm |
4951*3650*6225mm |
8765*3436*9540mm |
|
Overall weight |
4000kg |
5500kg |
8700kg |
|
Discharging height |
1500mm |
1600mm |
2700/3800mm |
|

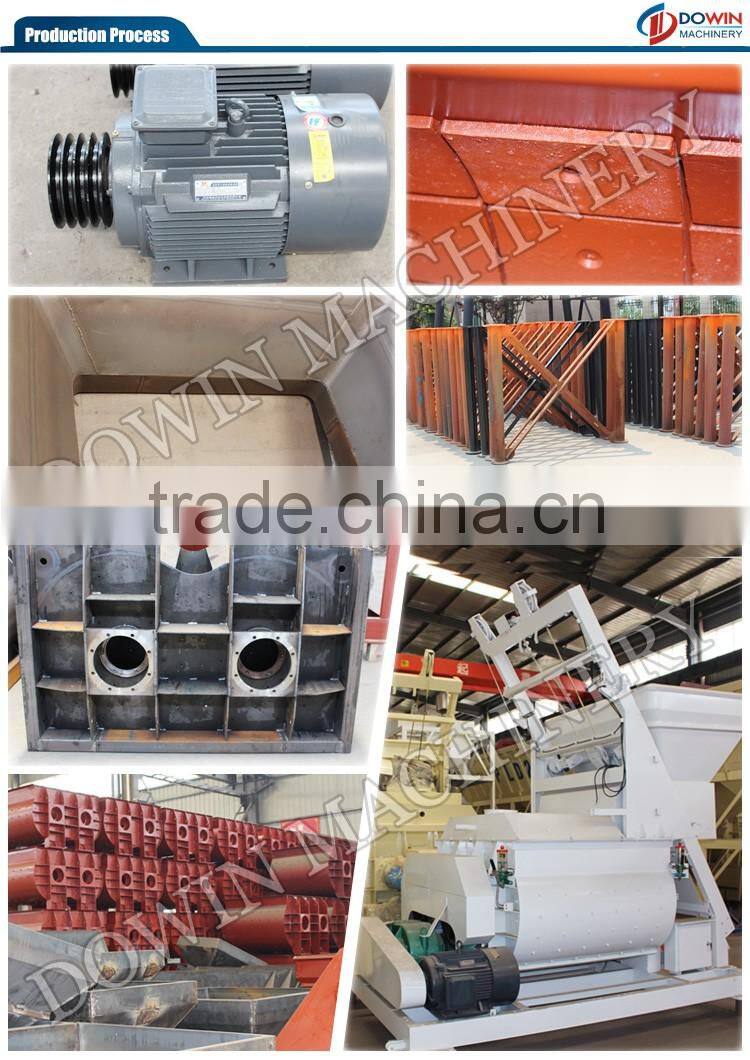

IV. Production process of JS500 double shafts mini concrete mixer machine price for construction

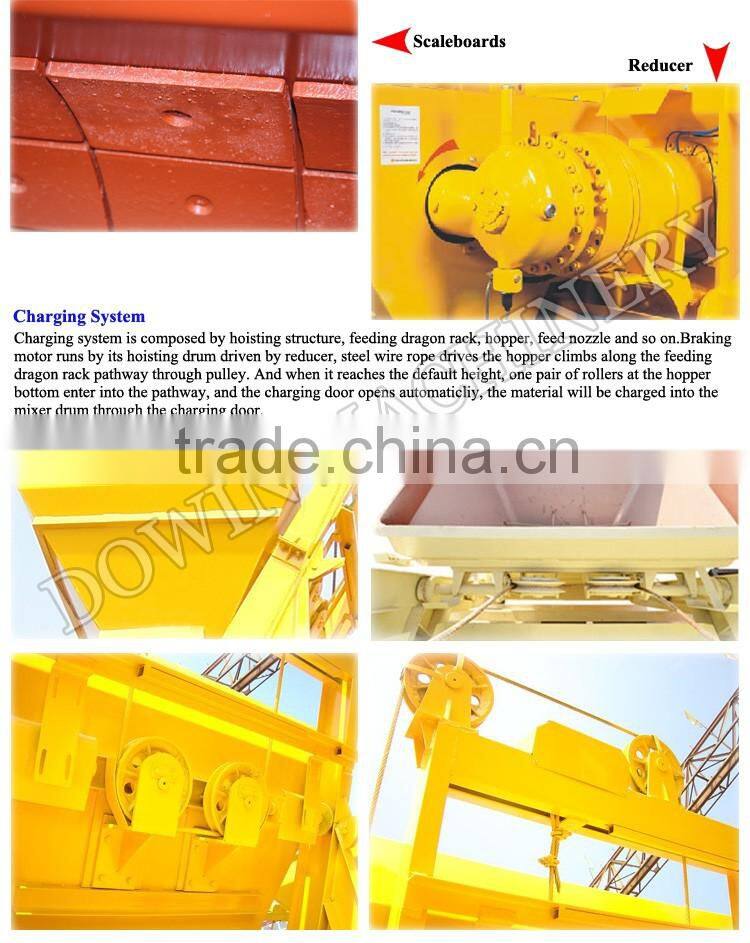

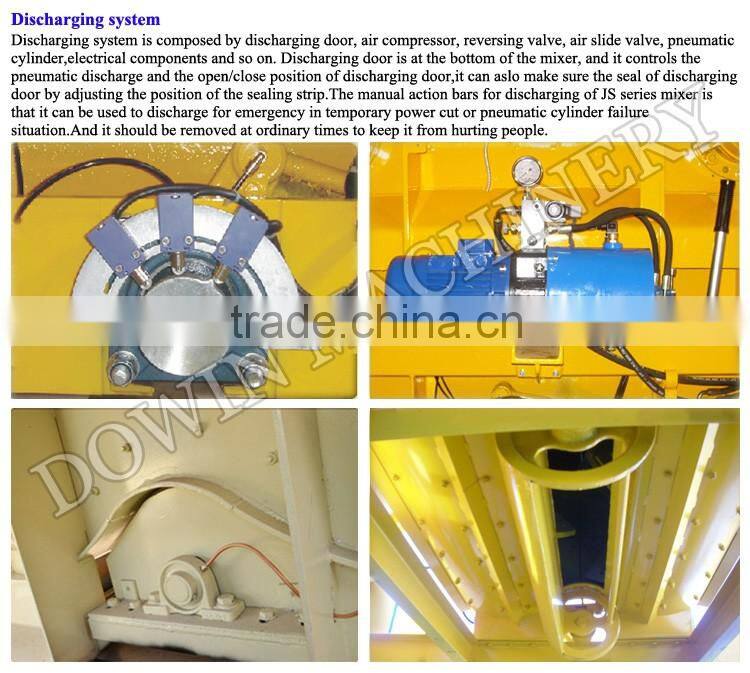

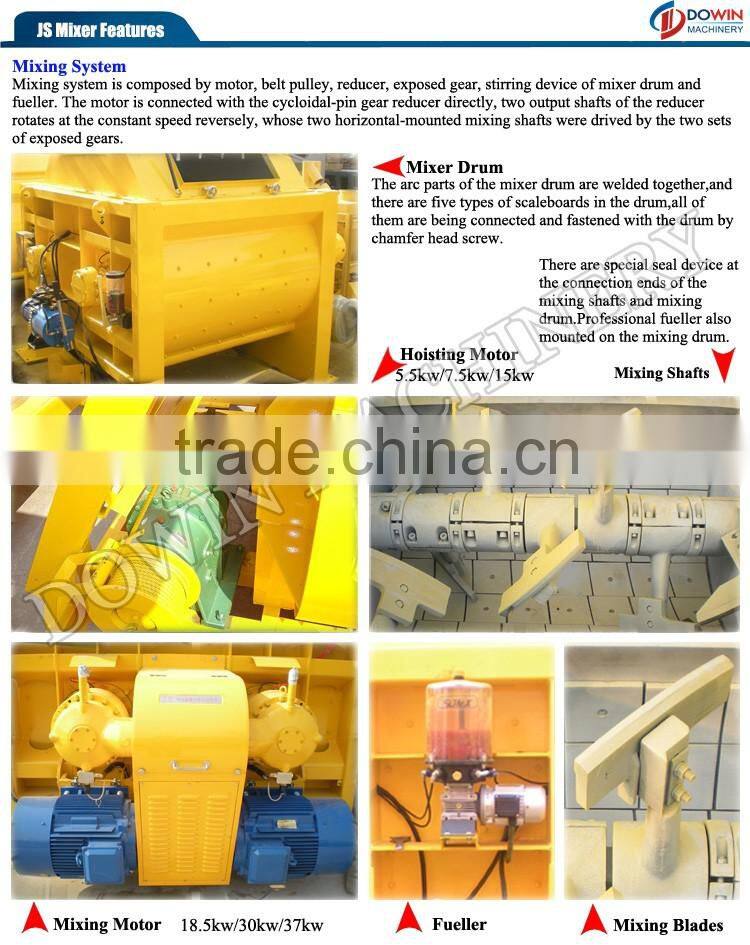

V. Main parts introduction of JS500 double shafts mini concrete mixer machine price for construction

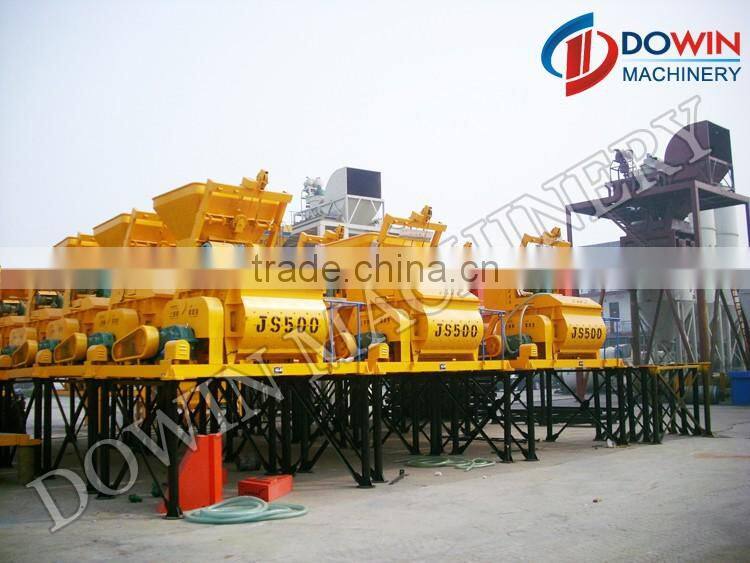

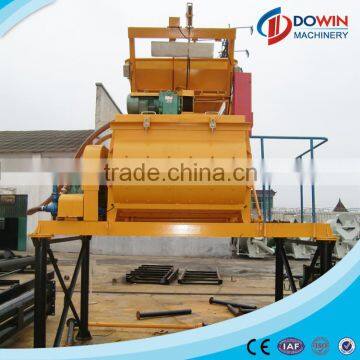

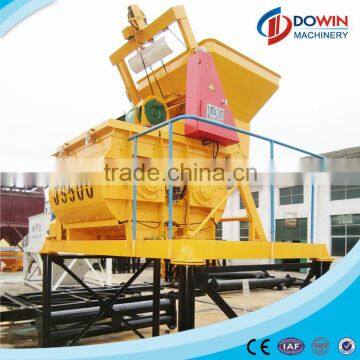

VI. JS500 JS500 double shafts mini concrete mixer machine price for construction
VII. JS500 double shafts mini concrete mixer machine price for construction used in HZS25 concrete batching plant
JS500 double shafts mini concrete mixer machine price for construction:
One unit of 20GP can load in one unit; One unit of 40HQ can load in two units.
Henan Dowin Machinery Co., Ltd. was founded in 2000 with more than 10 years experience in the area of construction equipment. Our main products are concrete mixing plants, mixer, pump, etc. We have exported our machine to Austria, Romania, Russia and Latin American.
Welcome to visit our factory! My mobile phone is +86 131 6431 7138.
1. Can we see the equipment before order?
You are warmly welcome to visit our factory, and our engineers will explain you the machines details one by one.
2. How many person are needed for the mixing plant?
It depends on the line and capacity of the mixing line, 2-3 workers will be enough to operate simplified mixing line, and over the 60m3/h line will need 4-5 people.
3. Will you help us to build the factory and install the machine?
Yes, our engineers will be sent to your site to help you for the installation.
4. Will you offer training?
Yes, free training will be offered after the installation.
5. Where is your factory?
Our factory is located in Zhengzhou city which is the capital of Henan province, China. It is very convenient for you to visit here, no mater you come here by train or by air.
6. Do you have any certifications of your machine?
Yes, ISO and CE certified
1- Checking before each operation
a). if you have put the machine level and steady, if the 4 legs fixed, and if the bolt bars have been fixed tightly.
b). check the tight extent of the triangle belt, and put the operation shaft of the cutting-speed box neutral
c). If the operation without material is normal
2- Safe operating and cautions
a). every time when adding material, shouldn’t overpass the prescribed amount
b). for avoiding pasting the drum, the order should be: aggregate-cement- grit, or girt-cement-aggregate
c). In the course of mixing, should add water in time, for cutting the mixing time and avoiding the flying of the dust.
d). No person should be allowed to stand or pass below the material container when it’s lifted. If you must repair something bellow the material container, you should lift it and stop it in a certain position and pull it with safe support shaft.
e). Non-operation persons shouldn’t move the operation shaft or operate the machine.
f). When the mixer is dragging, the material container should be lifted to the up top position, and hook the safe chain. The dragging speed should not overpass 20km/hour.
g). In the course of operating, the grit etc. should not drop to the operation part avoiding jamming any operating part and break it.
We also supply:
- mixer(JDC series, JS series, JZ series),
- concrete batching plant,
- station soil mixing station,
- batching machine,
- silo,
- construction elevator,
- concrete mixing truck,
- screw conveyor, etc.
Contact person: Wendy Yue
WhatsApp: 86 13164317138
Skype: jtdny01
Detailed information about the JS500 double shafts mini concrete mixer machine price for construction, welcome to contact us, we are always at your service.
