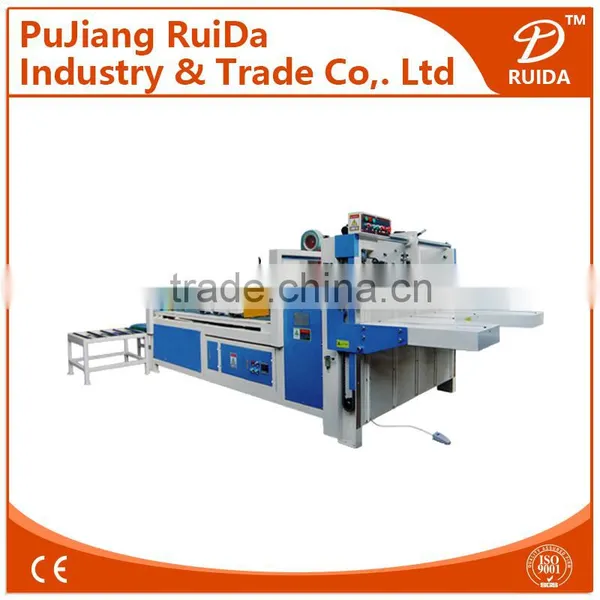

Help Center[RD-ZXJ2800]Semi Auto Carton Box Fold Glue Machine
![[RD-ZXJ2800]Semi Auto Carton Box Fold Glue Machine thumbnail-1](https://img11.fr-trading.com/2/1_262_27613_800_800.jpg)
![[RD-ZXJ2800]Semi Auto Carton Box Fold Glue Machine photo-1](https://img11.fr-trading.com/3/1_262_27613_800_800.jpg)
Related Products
-
![[RD-ZXJ2800]Semi Automatic Carton Box Folding Glueing Machine](https://res.goldsupplier.com/img/env2/common/load/circle-loading.svg)
[RD-ZXJ2800]Semi Automatic Carton Box Folding Glueing MachineUS$ 3,000 - 8,000MOQ: 1 Set -
ZXJ SERIES SEMI-AUTOMATIC CARTON FOLDER GLUER MACHINEUS$ 3,000 - 6,000MOQ: 1 Set
-
YF Series Automatic Carton Folder Gluer MachineUS$ 18000.00 - 18000.00MOQ: 1 Set
-
YF Platen Paper Corrugated Carton Folder Gluer MachineUS$ 18000.00 - 18000.00MOQ: 1 Set
-
ZXJ Corrugated Carton Semi-automatic Folder Gluer MachineUS$ 3000.00 - 3000.00MOQ: 1 Set
Features
- The RD-ZXJ series of semi automatic carton folder gluer machine is widely used in folding and gluing paperboard and corrugated cardboard.
- The machine is composed of the main structure and 2 conveyor unit.
- The structure is consist of the following units:
- Frame
- Lifting workbench
- Forepart paper feeding device
- Forepart correction device
- Midpiece conveying device
- Midpiece pressing device
- Finished products side outputting device
- Electrical control system
- All the electrical components are imported named brand.
- Equipped with a simple and reliable operation system.
- Quick changing order according to the different size of carton box.
- Automatic counting.
Specifications
| Model | Unit | RD-ZXJ2000 | RD-ZXJ2400 | RD-ZXJ2800 |
| Max (length+width)*2 | mm | 2000 | 2400 | 2800 |
| Min (length+width)*2 | mm | 340 | 340 | 340 |
| Max (width+height)*2 | mm | 1515 | 1515 | 1515 |
| Min (width+height)*2 | mm | 240 | 240 | 240 |
| Feeding height | mm | 900 | 900 | 900 |
| Speed | m/min | 60 | 60 | 60 |
| Power | KW | 2.2 | 2.2 | 2.2 |
| Weight | T | 1.85 | 2 | 2.15 |
