widely used self loading concrete mixer with pump price sale in nigeria
Brief introduction of used self loading concrete mixer
1. used self loading concrete mixer double advantages that can work indenpently and can be consituted a simple concrete mixing plant with PLD series aggregate batching & weighting system.
2. used self loading concrete mixer has popular models and high production efficiency.
Application of used self loading concrete mixer
used self loading concrete mixer could be used for mixing plastic and damp-dry rigid concrete, applied in architectural building site, civil engineer, and bridge project, precast concrete plant,etc.
Individuation of used self loading concrete mixer
1. As a miniature double-horizontal-shaft forced type concrete mixer, this 500l concrete mixer features short mixing time, good homogeneity and reliable operation.
2. used self loading concrete mixer can be used seperately or equip with concrete batching machine to consist of a simple concrete mixing plant.
Items |
JS500 |
JS750 |
JS1000 |
|
Discharge Volume |
500L |
750L |
1000L |
|
charge Volume |
800L |
1200L |
1600L |
|
Productivity |
≥25m3/h |
≥37.5m3/h |
≥50m3/h |
|
Max. Size of Aggregate |
80/60 |
80/60 |
80/60 |
|
Mixing Blade |
Rev. |
35r/min |
31r/min |
25.5r/min |
Qty. |
2*7 |
2*7 |
2*7 |
|
Mixing motor |
Model |
Y180M-4 |
Y200L-4 |
Y225S-4 |
Power |
18.5kw |
30kw |
37kw |
|
Hoisting motor |
Model |
YEZ132S-4-B5 |
YEZ132M-4-B5 |
YEZ160S-4 |
Power |
5.5kw |
7.5kw |
15kw |
|
Water pump motor |
Model |
50DWB20-8A |
65DWB35-5 |
KQW65-100I |
Power |
750w |
1.1kw |
3kw |
|
Hoisting speed of hopper |
18m/min |
18m/min |
21.9m/min |
|
Overall dimension(L*W*H) |
Transportation situation |
3050*2300*2680mm |
3650*2600*2890mm |
4640*2250*2250mm |
Working situation |
4461*3050*5225mm |
4951*3650*6225mm |
8765*3436*9540mm |
|
Overall weight |
4000kg |
5500kg |
8700kg |
|
Discharging height |
1500mm |
1600mm |
2700/3800mm |
|
|
|
|

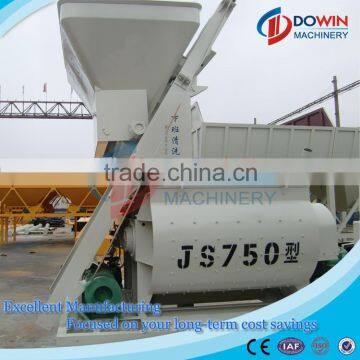

JS750 cement mixer
|
JS1000 cement mixer
|
|
|
| JS1500 cement mixer | JS2000 cement mixer |
1. Pre-sales Service of used self loading concrete mixer
Work as your technical assistant, special design for you according to your site, construction condition and
other requirements.
2. After-sales Service of used self loading concrete mixer
a. Remind users to maintain the machine at a certain time of each year;
b. Guarantee the spare parts for free;
c. Out of warranty period, we can supply you the after sale service and spare parts all the time;
d. Install and debug equipment according to contract;
e. After sales, the engineers will help you to do prepare works for the first start up and debug.
Henan Dowin Machinery Co., Ltd. was founded in 2000 with more than 10 years experience in the area of building construction machinery.
Dowin Company started overseas business from 2007, until now its products have been sold to India, Vietnam, Indonesia, Nigeria, Kazakhstan, Russia etc. It has earned a good reputation in these areas because of its best cost performance products and excellent after services.
Thanks for browsing our used self loading concrete mixer !
