Wood Cnc Manufacturers,Wood Cnc Suppliers, cnc wood router Wood Cnc wood cnc engraving machine
Features
1.Welded structure by thick profiled steel stabilized under high temperature, ensures ,minimum distortion, excellent rigidity and powerful strength4.high accuracy, long service time, steady movement and good starting performance, great torque, fulfilling the advantage of working with fast speed and low noise.

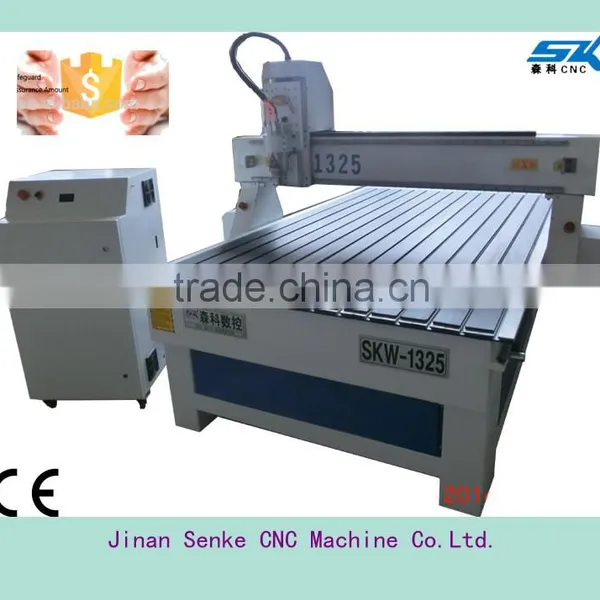

Model |

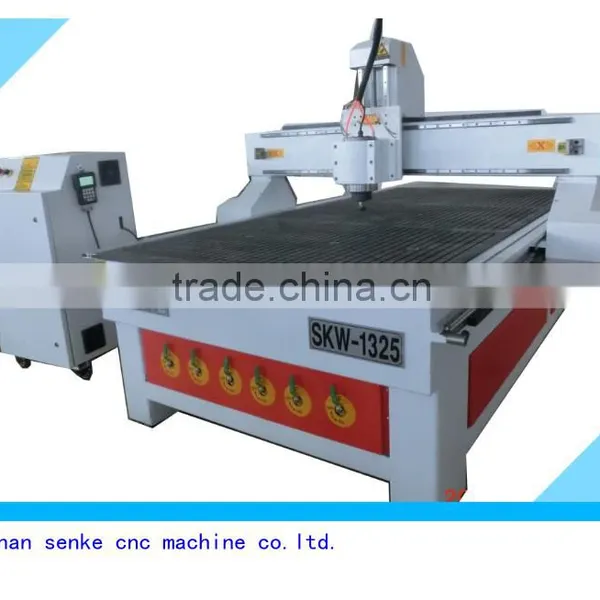

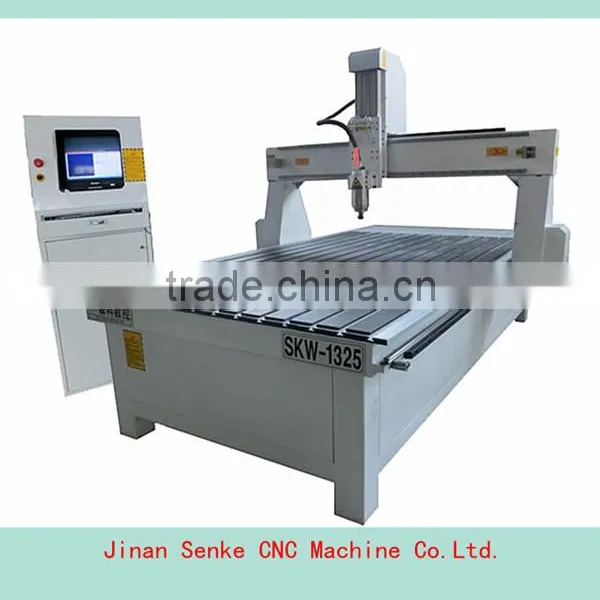

SKW-1325 |
Working area (X*Y*Z) |
1300*2500*200mm |
Table size |
1750*3050*1740mm |
Body structure |
Thicken steel made |
X, Y Structure |
Taiwan Miko rack and pinion |
rails |
Taiwan hiwin square rails |
Z Structure |
Taiwan TBI ball screw |
X, Y Resolution |
<0.01mm |
Max Moving Speed |
40000mm/min |
Max Engraving Speed |
20000mm/min |
XYZ traveling positioning accuracy |
±0.01mm |
XYZ repositioning accuracy |
±0.01mm |
Spindle power |
3.2KW HQD brand water cooling(4.5KW/5.5KW optional) |
collect |
ER25 |
Spindle Speed |
0-24,000rpm |
Voltage |
220v/single or 380v/3phase or as customer needed |
Drive type |
Stepper motors and leadshine drivers |
Working Dictate |
G Code |
Operating system |
DSP (A11 model)/(NC-studio,mach3 optional) |
Interface |
USB |
Flash memory |
128M |
software |
Artcam 8.1(free supply) |

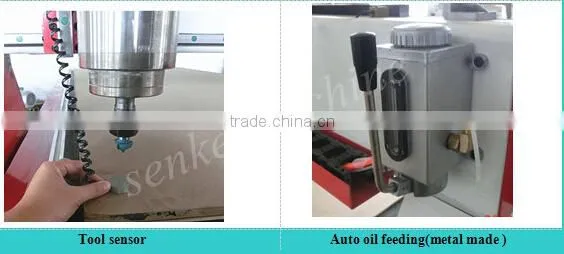

Tool sensor |
Yes,included |
Auto oil lubricator |
Yes,included |
Wire protect |
Yes,included |
Running Environment |
Temperature: 0℃~45℃ |
package |
Export wooden box |
After packed size |
3.2*2.1*1.89M |
G.W |
1200kgs |

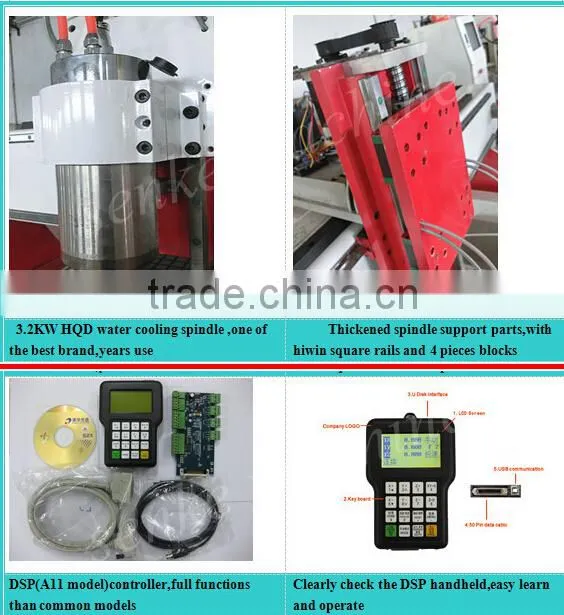

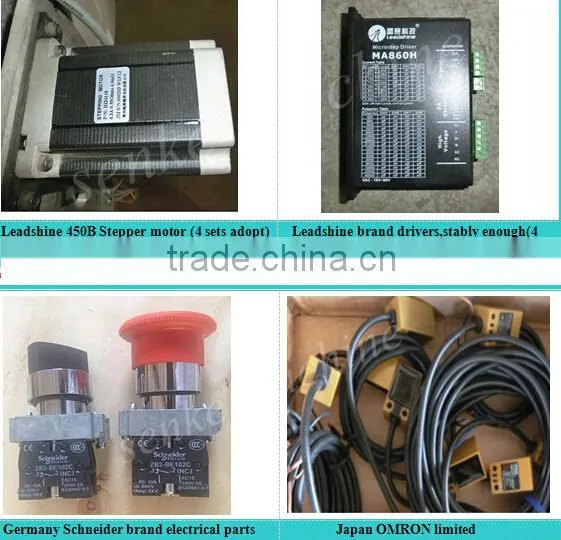

Main parts(used on machine)

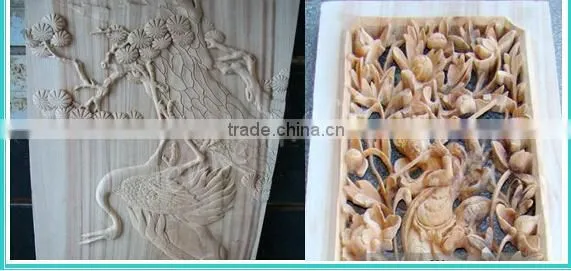

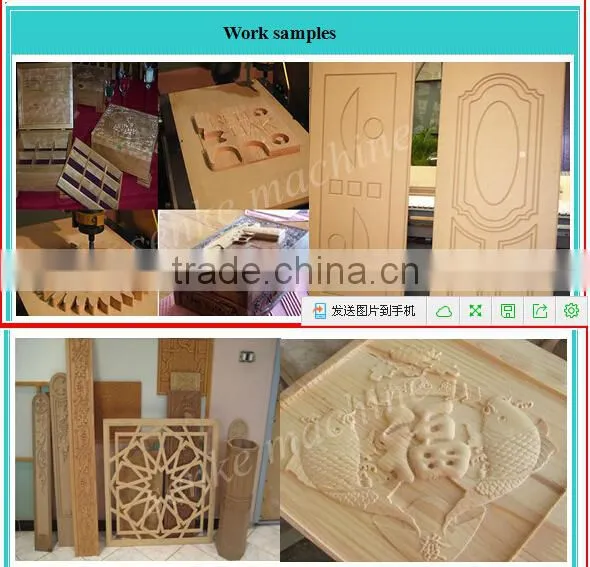

Applicable industry:
1 mould industry: carving various mould, such as auto mould, big ship foam block, aviation block, propellers, block the train.
2. Musical Instruments industry: can be carved large instruments 3 d surface, appearance cutting
-----------Some machine working processing video for reference:
1, /watch?v=IHtWP0F4_Bc
2, /watch?v=oD5VBNh1sqc
3, /watch?v=0oVejWf7WT8
Operation
all senke machine sending with software CD,software manual,teaching video,machine operate manual,packing list,if you want view first,please kindly contacted we seller directly,we send by email
Videos
if you want check,how the machine work,please kindly contact we seller,we will send to you senke router working video.
Training
we senke team was constituted by skilled staff,anyone of them with years experience,can operate all style control system machine skilled and adept,if you needed,we engineer oversea services available,detailed charges please contacted we seller,also if you like,welcome to us,in we factory,the training service itself free.
Certificate
Any comments or needs,just let us know.As manufacturer directly,we will try our best to supply our best solution to you.
