Top Quality TNMX 1509-2 CNC Carbide Insert:
Top Quality TNMX 1509-2 CNC Carbide Insert:
1,The guide of the applications of tungsten carbide insert (cemented carbide insert):
1st: the structure of tungsten carbide tips tools should be tough enough.
2nd: cemented carbide tips should be strongly fixed securly.
3rd: before installing of the tungsten carbide tips to the tool holders,the tips and tool holder must be checked,an initial check must be done to ensure that there is no serious bending on the support surface of the tips,there shall be no serious carbulization on the welding surface of the tips,and at the same time,the contaminants on the surface of the tips and in the flutes of the tool holers must be eliminated to ensure the quality of a secure welding.

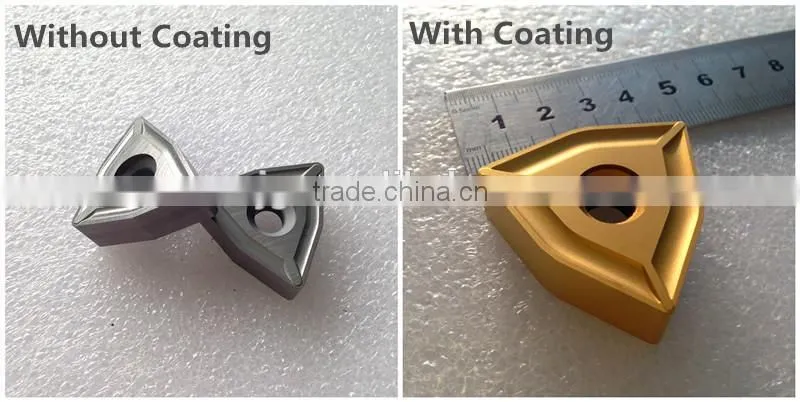

2,Top Quality TNMX 1509-2 CNC Carbide Insert,Coating and without Coating are available:

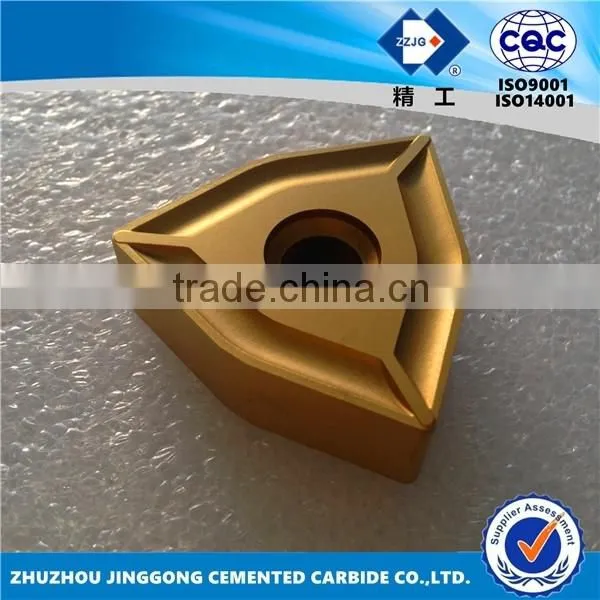

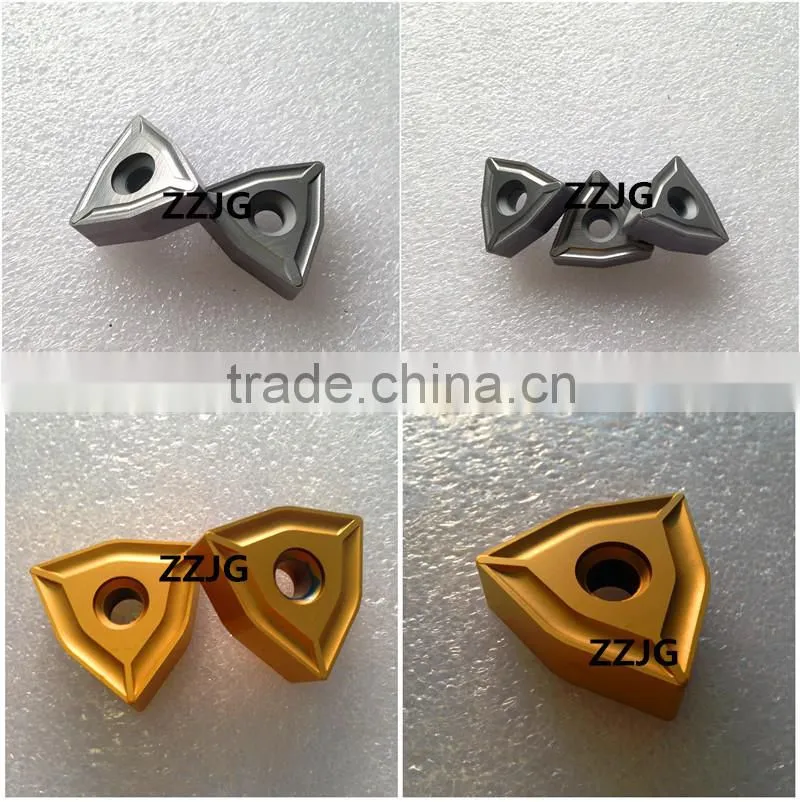

3,Top Quality TNMX 1509-2 CNC Carbide Insert,the product's pictures for your reference:
(Also we can make the goods according to your drawing)
Now we have the following types:
YBC151/YGC251 Coating
TNMX1106-2
TNMX1509-2
TNMX15T916-2
4,For Carbide Insert,the Grade details for your reference:
(also you can tell us what kind of grade you want,we can make it according to your requirement)
| ISO Code | Grade | Density | HRA | TRS |
| K05 | K10UF | 14.70-14.95 | 93.0 | 3000 |
| YG3X | 15.00-15.20 | 92.5 | 1300 | |
| YG3 | 15.15-15.30 | 91.5 | 1400 | |
| K10 | YG6X | 14.70-14.85 | 91.7 | 1860 |
| YG6A | 14.85-15.05 | 92.0 | 1600 | |
| K20 | YG6 | 14.85-15.05 | 90.5 | 1860 |
| K30 | YG8 | 14.60-14.85 | 89.7 | 2060 |
| M05 | YS8 | 13.70-14.10 | 92.5 | 1720 |
| M10 | YW1 | 13.00-13.30 | 92 | 1600 |
| YS2T | 14.25-14.55 | 91 | 2160 | |
| YT03 | 14.75-14.95 | 91.5 | 1860 | |
| M20 | YW2 | 12.90-13.30 | 91.0 | 1680 |
| YW5 | 12.90-13.30 | 90.5 | 1680 | |
| P10 | YT15 | 11.10-11.50 | 91.5 | 1600 |
| P20 | YT14 | 11.20-11.60 | 91 | 1680 |
| YS25 | 12.80-13.00 | 90.5 | 2060 | |
| P30 | YT5 | 12.60-13.00 | 90 | 1750 |
| YC30S | 12.80-13.00 | 89.5 | 1600 | |
| P40 | YC40 | 12.80-13.30 | 89.5 | 1700 |
5,Except for TNMX 1509-2 CNC Carbide Insert,the other produts you might be interested in:
|
|
|
|
| Carbide Dies | Carbide Plates | Carbide Tips | Carbide Mining Tips |
| Top Quality TNMX 1509-2 CNC Carbide Insert | ||||||||
A,Factory Info:
----CLICKING the following picture to get a quik idea of our FACTORY.
Top Quality TNMX 1509-2 CNC Carbide Insert | |||||||
1,Packing:
Regarding to the packing of carbide insert.
we often use:
Inner by neutral plastic box with bubble bag,Outter by Carton Box,or as request by customer.
Also pls see the details of some packing styles from our Factory.
2,Shipping:
As to ZZJG Factory Directly Supply CNC Turning Insert TNMX1509-2:
| Why Choose Us? | ||||||||
As to Top Quality TNMX 1509-2 CNC Carbide Insert,why choose us?
1 We are a REAL factory located in Zhuzhou,which is the tungsten carbide base in China,manufacturingTungsten Carbide Tool Parts with best production capability,best quality control, Best Service with around 200 employees here for over 10 years.
2. We are Alibaba Assessed 4 years Gold Supplier.
3.Our output is over 76 tons per month,fast delviery with competitve price.
4.Certificated by RoHS,ISO 9001:2008,ISO 14001:2004.
5.100% QC inspection Before Shippment
6,Our products are produced by 100% Virgin material.
7,We can produce the non-standard items according to your samples or drawings.
8,We own 8 Invention Patents till now,and our Technical Team is leaded by Doctor Chen,who is the expert of Powder Metalurgy.
| Top Quality TNMX 1509-2 CNC Carbide Insert | ||||||||
Q1,Are you the real reliable factory?
Q2,Can you make the goods according to our drawings and samples?
Q3,Can I get free samples for quality checking?
Q4,What's your MOQ?
