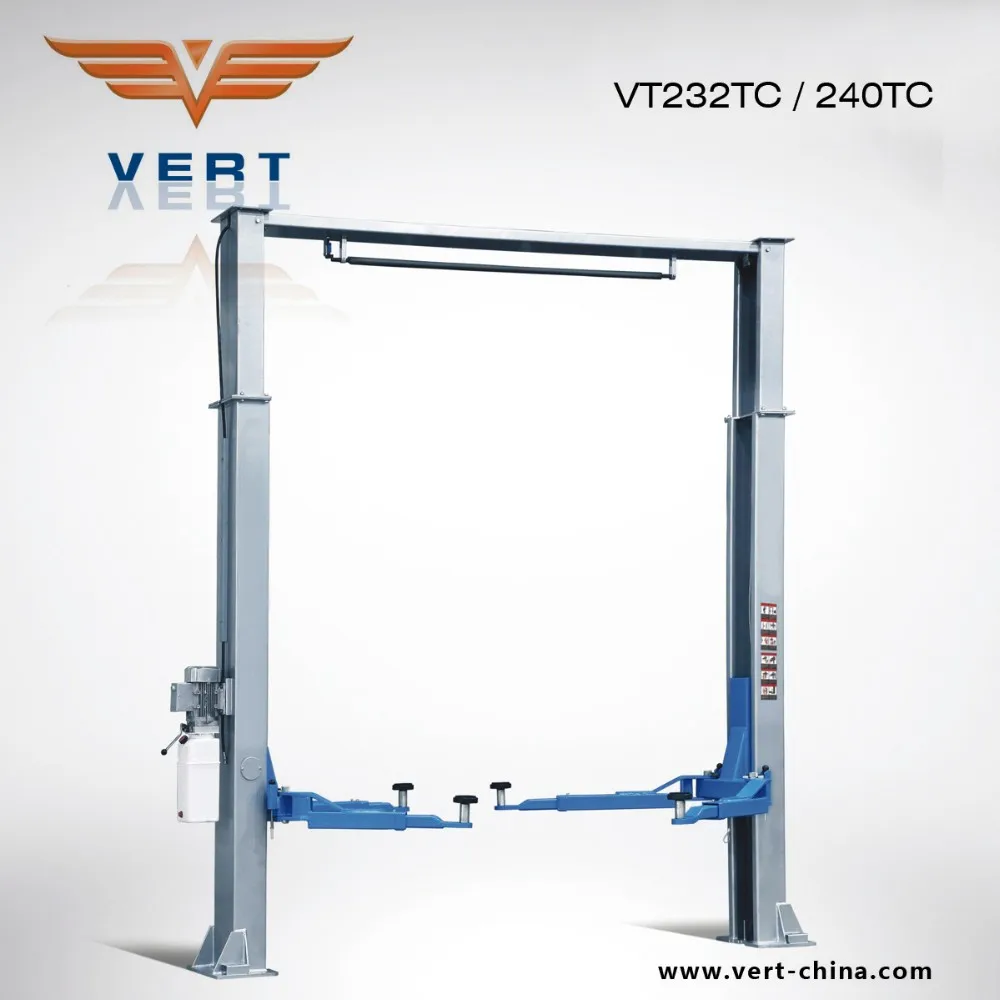

Hydraulic Power Asymmetric Column Clear Floor Lift VT232TC

Hydraulic Power Asymmetric Column Clear Floor Lift VT232TC photo-1
US$ 1,190 - 1,590 MOQ: 1 Set
Key Specifications
Get Latest Price
Design:
Two Post
Type:
Double Cylinder Hydraulic Lift
Certification:
CE
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.
Design Two Post
Type Double Cylinder Hydraulic Lift
Certification CE
Lifting Capacity 3200kgs
Lifting Height(mm) 1990mm
Overall Width(mm) 3420mm
Place of Origin Liaoning, China
Brand Name VERT
Model Number VT232TC
Warranty 1 Years
Product Description
Model No.
VT232TC
Name
Hydraulic power asymmetric column clear floor lif
Lifting capacity
3200kgs
Lifting height
1990mm
Minimum height
110mm
Lifting time
40-45s
Overall height
3726mm
Overall width
3420mm
Width between columns
2820mm
Weight
735kgs
Motor Power
2.2kw
Power Supply
220V, 240V, 380V, 415V
Packing size
290x53x77mm
Loading quantity per 20'GP
22sets

Features:

◆Clear floor designn makes easy working under beneath the vehicle;
◆By two cylinder, plate and wire rope chain balance system, lifting off and landing smooth;
◆Hydraulic power unit configuration throttling device, can always adjust the rate of decline;

◆Manual locked release from two sides;

◆With 24V limit switch; Asymmetric column allows wider drive through clearance;
◆Rubber support pad with spiral adjust the height and in stages adjust the height, optional;
◆Ruber pad door-opening protection;

◆With guard rail, toe protection;

◆Trucks adapters can optional;

◆Have adopted 115% dynamic and 150% static loading tested;
◆CE certificated.

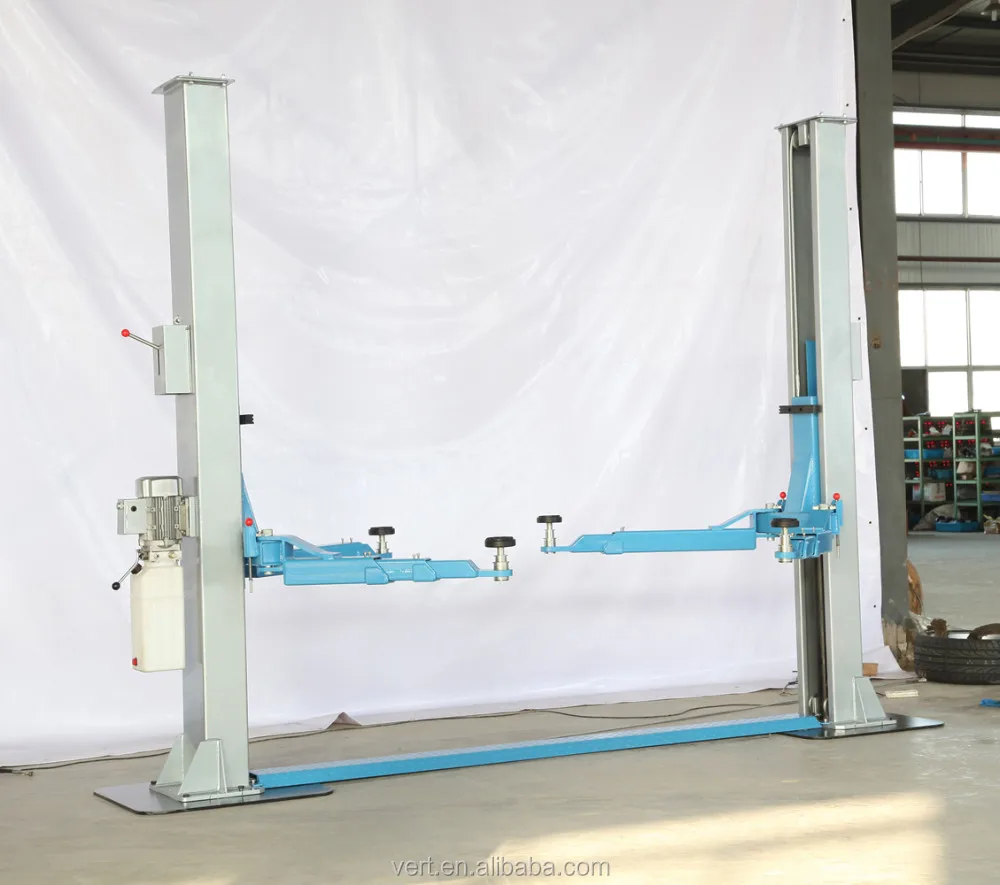

Detailed Images
