Conveyor Belt Roller HDPE Idler 108x1150
- Tianjing or Qingdao
- T/T
You May Like
-
Conveyor Belt Roller HDPE Idler 159x1600
-
The Parts of Coal Mine Conveyor System Hdpe Yellow Conveyor Roller 133x730
-
The Parts of Coal Mine Conveyor System Hdpe Yellow Conveyor Roller 108x195
-
The Parts of Coal Mine Conveyor System Hdpe Yellow Conveyor Roller 108x525
-
The Parts of Coal Mine Conveyor System Hdpe Yellow Conveyor Roller 159x530
-
The Parts of Coal Mine Conveyor System Hdpe Yellow Conveyor Roller 159x800
Product Details
| Place of Origin | Henan, China | Brand Name | Sanyou | |
| Model Number | SY-R04D158 |
Product Description
Specifications
Conveyor Belt Roller HDPE Idler1.Roller specification:60,70,102,127,152,159,114,140
2.High abrasion resistance
3.ISO9001
1.Product Description.
SY Rollers are made from High Density Polyethylene.The versatility of this material ensures that
SY Roller satisfy a range of uses where other plastic and steel roller have failed.
The injection molding process and high quality components result in a superior product
that in recent testing out performed steel rollers.
2.The Advantage of SY HDPE ROLLER
1.Abrasion & corrosion resistant
Comparative Wear Test Result indicate that SY HDPE ROLLER life will outlast steel through wear.
SY HDPE ROLLER are acid and alkaline resistant(no rust shell)
2.Spillage control
Process material does not adhere to or build up on SY HDPE ROLLER,which is the primary cause of belt mis-tracking,spillage and leakage.
3.50% less weight than steel
Reduces the risk of injury to worker by using a roller that is 50% lighter than steel shell rollers.
SY-HDPE ROLLERS are lighter when handling and transporting from store to destination.
SYHDPE ROLLERS are lighter than makes installation into conveyors which are long and
steep in access easier than steel rollers.
4.Asset protection(belts)
When steel roller fail they can produce sharp rotating edges,which can cut and rip conveyor
belts at a very significant cost,causing unplanned down time and interruption to supply.
In turn,a cut conveyor belt travelling at high speed can pose a significant risk to employees working in the vicinity.
3.Product Characteristics
1.Labyrinth Seals
The addition of the multi labyrinth seal, together with a high quality lubricant ensures
no entry of dust or water and enhances the long life and low maintenance of Blue King Rollers.
2.Anti-Static Resistance
The anti-static agent prevents sparking during operation in volatile conditions.
This is a much sought after feature when considering usage such as underground mining
where gas buildup can occur, also in dusty conditions such as grain storage areas,
where conditions can be fatal if ignition occurs
3.Suitable for adverse conditions
Including high humidity and high pollution environments.
· High-density material
· Acid resistant
· Alkaline resistant
· Anti-static
4.Low Maintenance
The design of Blue King Rollers incorporates a surface which resists buildup and bearings
that are sealed for life and do not require lubrication.
These features result in longer belt life, less down time and more cost effective operations.
5.Perfect dynamic balancing
Low friction silent rotation results in damage free belt and cost saving operation.
Due to the high quality injection molding, the concentricity is such that balance and low friction is excellent.
This equates to cost saving low energy usage and an environmentally friendly product.

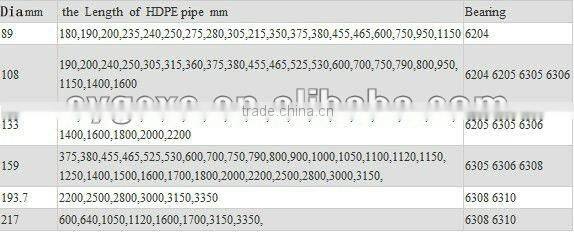

4.Available in the following diameter
Shell Diameter | Shaft Diameter at the Bearing | Bearing Series |
89 | 17mm/20mm | 6203/6204 |
102 | 20mm/25mm | 6204/6205 |
108 | 20mm/25mm | 6204/6205 |
114 | 20mm/25mm | 6204/6205 |
127 | 20mm/25mm/30mm | 6204/6205or6305/6206 |
133 | 20mm/25mm/30mm | 6204/6205or6305/6206 |
140 | 25mm/30mm | 6205or6305/6206 |
152 | 25mm/30mm/35mm | 6305/6206or6306/6207 |
159 | 30mm/35mm/40mm | 6306/6207/6308 |
165 | 35mm/40mm/45mm | 6206or6306/6207/6309 |
Applications:Suitable for use in a wide variety of applications and products such as cement,coal,gravel,fertilisers,ports,chemicals,quarrying,zinc mining,grain. | ||
RollerDiameters: 9mm,102mm,108mm,114mm,127mm,133mm,140mm,152mm,159mm,165mm.
(other sizes available on request)
Shaft:(mild steel/stainless steel)
Seal:Triple Labyrinth Seal
Bearing Type: SKF,FAG,NTN.(other brands available on request.
Roller specification
The technical parameters of conveyor roller
Name | Technical parameter | After dropping parameter |
Radial moving, mm | 0.40-0.50 | <0.70 |
Axial moving mm | <0.70 | <1.50 |
Rotation resistance, N | 1.50-2.50 | <3.75 |
Axial loading, kn | 8.0-10.0 | <10.0 |

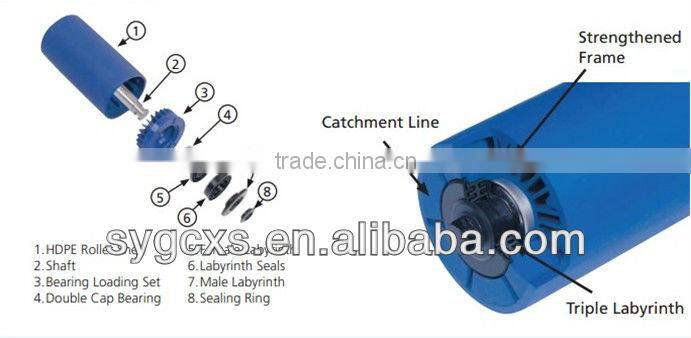

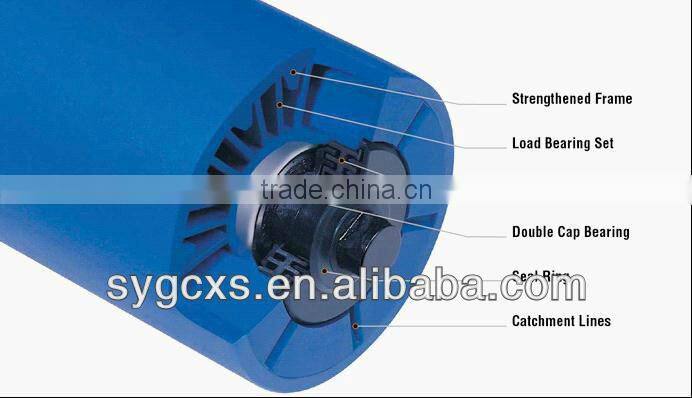

5.HDPE Roller components.

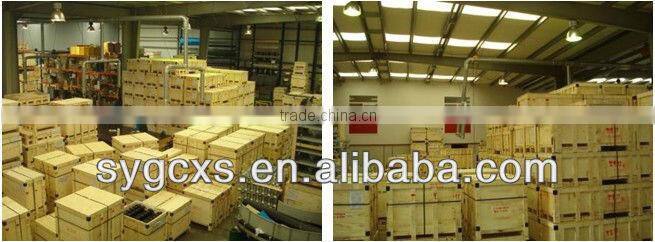

6.Packaging

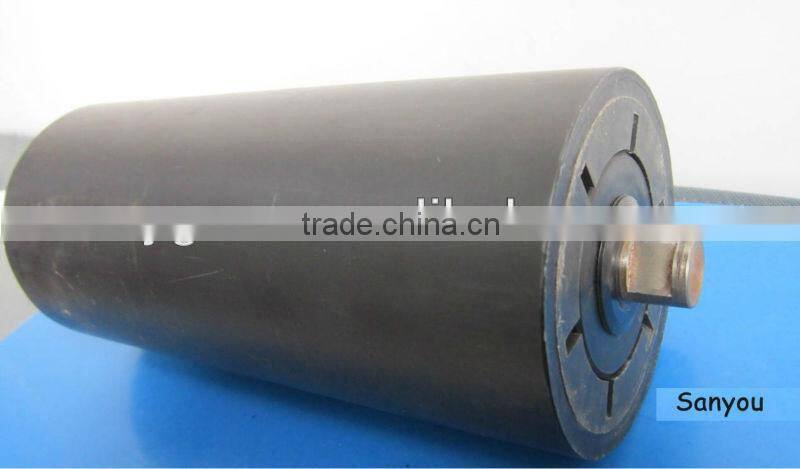

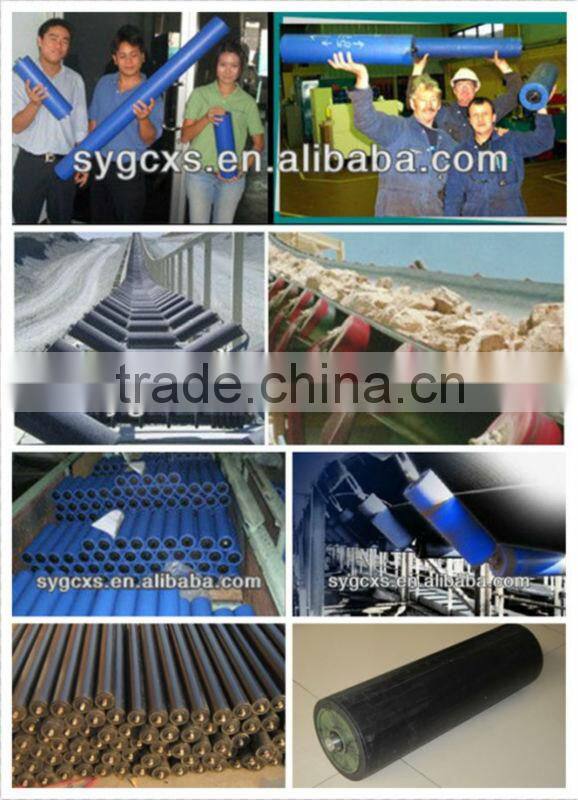

7.The picture of Goods
