Help CenterThe Terminal Manufatuer Supply YG8 Tungsten Carbide Ball
Related Products
-
The Terminal Manufatuer Sell Tungsten Carbide Ball Grinding BallUS$ 47 - 59MOQ: 10 Kilograms -

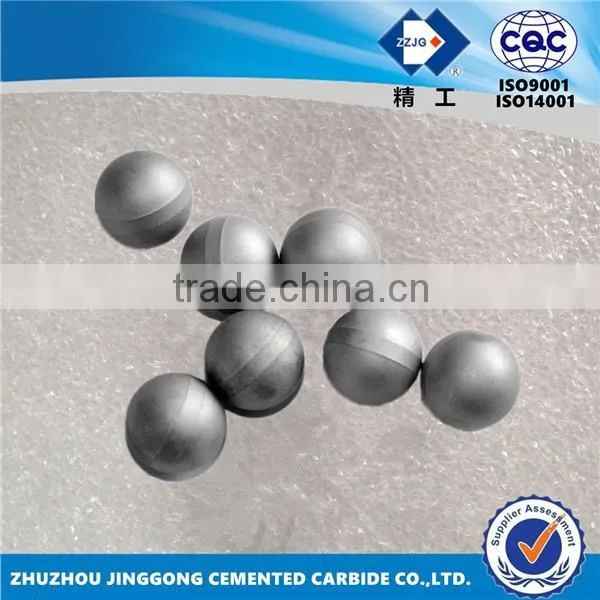

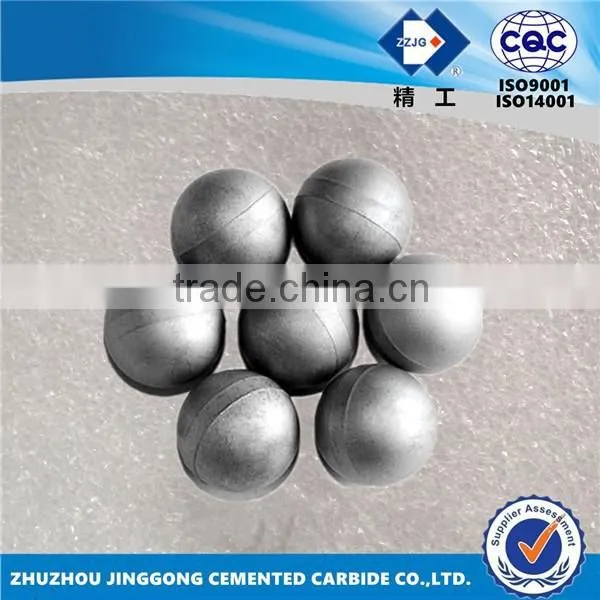

Highly Wearproof Unground Solid Cemented Carbide BallUS$ 47 - 59MOQ: 10 Kilograms
-
Tungsten Carbide Ball for TC Ball Valve Seats and TC BallsUS$ 47 - 59MOQ: 10 Kilograms
-
High Wear Resistant Tungsten Carbide Ball in Different Size AvailableUS$ 47 - 59MOQ: 10 Kilograms
-

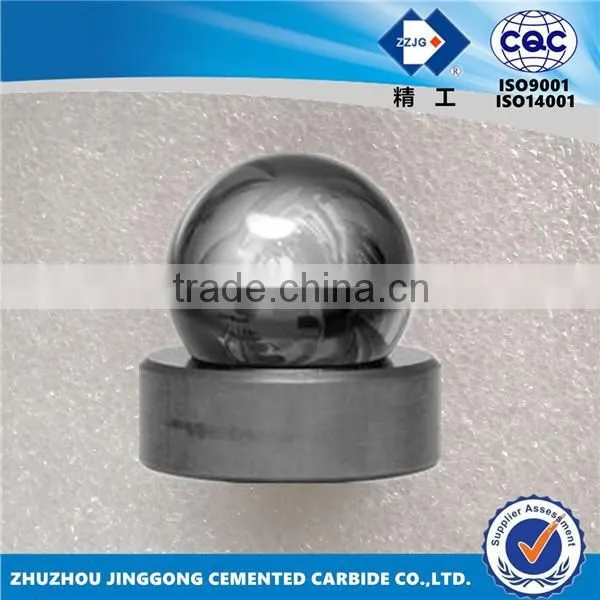

API 11AX Carbide Valve Ball and Valve Seat for Sucker Rod PumpUS$ 47 - 59MOQ: 10 Kilograms
The Terminal manufatuer supply YG8 tungsten carbide ball :
| Why Choose ZZJG's Products ? |
|
1 We are a Real Factory and Ranked in The Top Two tungsten carbide prducts supplier in Zhuzhou City. (where is The world's five largest supply cemented carbide base).
2. Current output is over than 50 Tons per month.
3. 100% QC inspection Before Shippment.
4. We owned 8 Invention Patents, Technical R&D team lead by Doctors and Professors.
5. We accept orders of Special non-standard shaped products from customized designing.
6. We guarantee that all of our products are used with 100% Virgin Raw Material.
7. Certification: ISO 9001, ISO 14001. OHSAS 18001.
|
| The Basic details of we supplied Tungsten Carbide Ball : |
|
— Diameter Range:0.6mm--70mm, Undertake order of non-standard size work.
— The size tolerance can be reached 0.001mm, and the grinding accuracy is between G3-G50 as your required. |

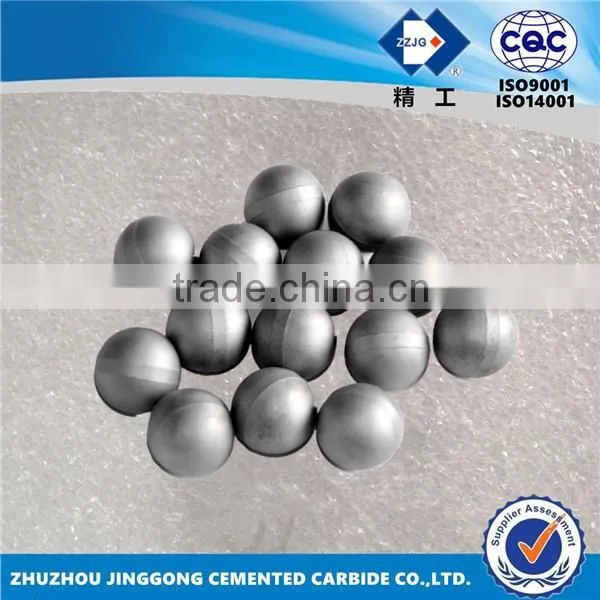

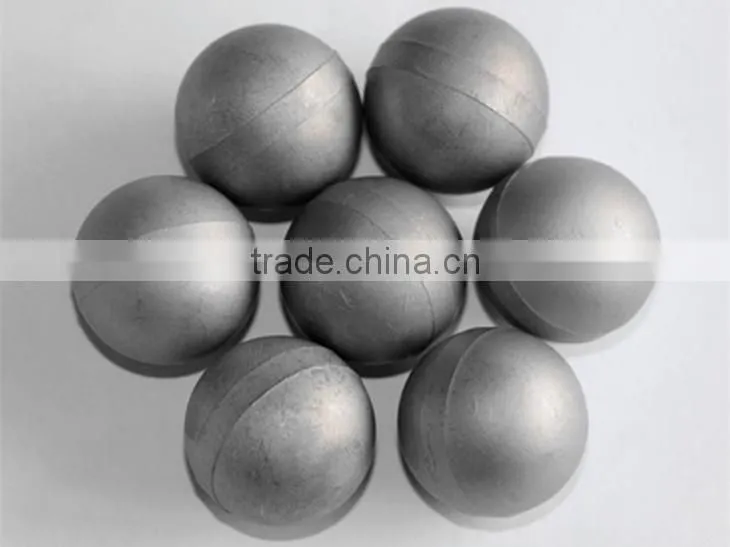

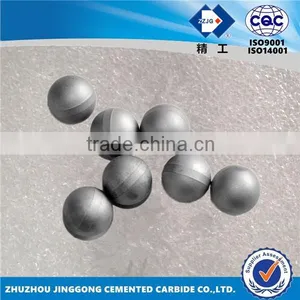

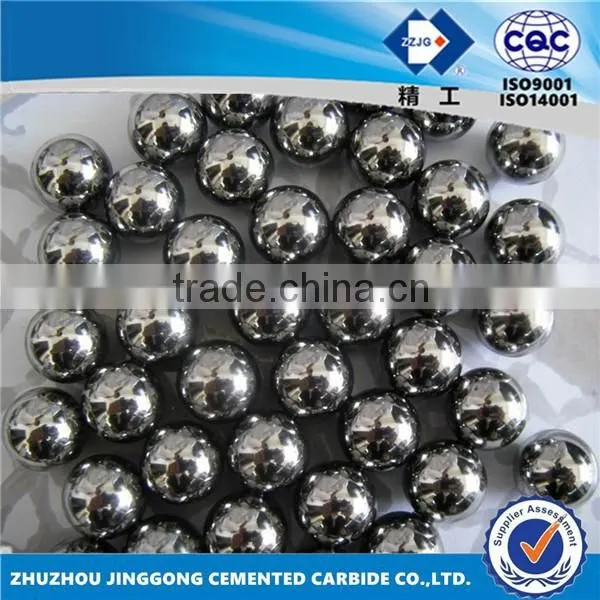

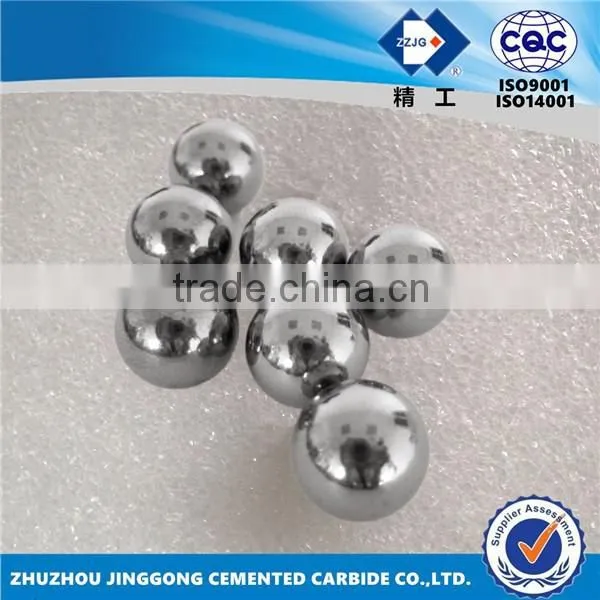

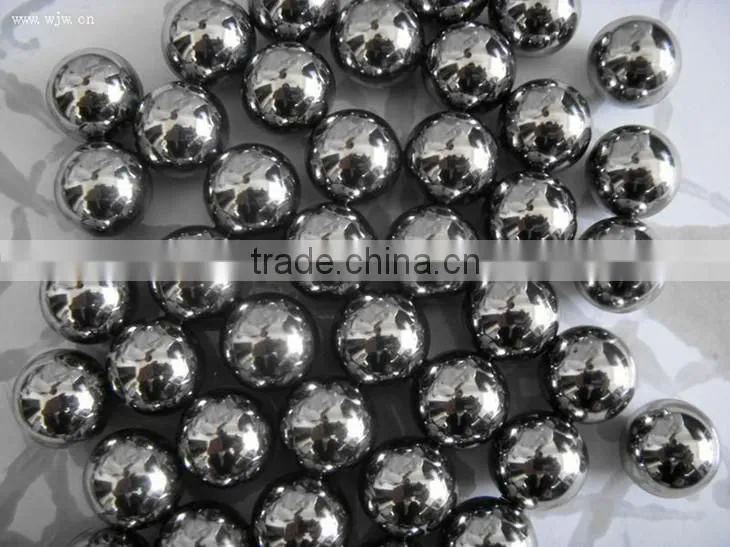

| The Pictures of Tungsten carbide ball : |
|
|
|
|
| Grade | Sphericity | Diameter Tolerance |
Max. Surface Roughness |
| G3 | 0.000003" | +/- 0.00003" | 0.5 |
| G5 | 0.000005" | +/- 0.00005" | 0.8 |
| G10 | 0.000010" | +/- 0.0001" | 1 |
| G25 | 0.000025" | +/- 0.0001" | 2 |
| G50 | 0.000050" | +/- 0.0002" | 3 |
| G100 | 0.0001" | +/- 0.0005" | 5 |
| G200 | 0.0002" | +/- 0.0010" | 8 |
| G500 | 0.0005" | +/- 0.002" | |
| G1000 | 0.001" | +/- 0.005" |
| Grade |
Density (g/cm3) |
Hardness (HRA) |
TRS (N/mm2) |
Applications |
| YG6 | 14.9 | 91 | 2450 | Good Wear resistance, used for hard wood,processing original wood, aluminum section bar,brass rod and cast iron. |
| YG8 | 14.7 | 90 | 2620 | Suitable for the roughening of cast iron and light alloys and also for the milling of cast iron and low-alloy steel. |
| YS2T | 14.45 | 91.5 | 2480 | Fine carbide,high wear resistance,high bending strength,high resistance to bonding, high thermal strength.Machining of refractory alloys, stainless steel and high manganese steel etc.Mainly used for disc cutter and other tools. . |
| YL10.2 | 14.5 | 91.5 | 2880 | Wear resistance and strength comparatively higher,suitable for processing cast iron, non-ferrous metal and non-metalloid materials. |
| YG11 | 14.45 | 86.5 | 2700 | With supper toughness and corresponding wear resistance,suitable for carbide inserts of heavy-duty rock drlling tools and DTH-drilling bits for drilling hard and super hard rock fomations. |
| YG15 | 14.1 | 86.5 | 2400 | Qualified for hard rock drilling, steel bars with high compression ratios, pipe drawing, punching tools, core cabinet of powder metallurgy automatic molders etc. |
| YN6/YN8 | 14.6 | 88.5 | 1850 | This grade with 6-8% nickel binder, it has good wear resistance & corrosion resistance performance, especially used for high pressure environmental, also good for cutting the titanium alloy. |
|
|
|
|
|
| Mining Tools - carbide drill bits and buttons |

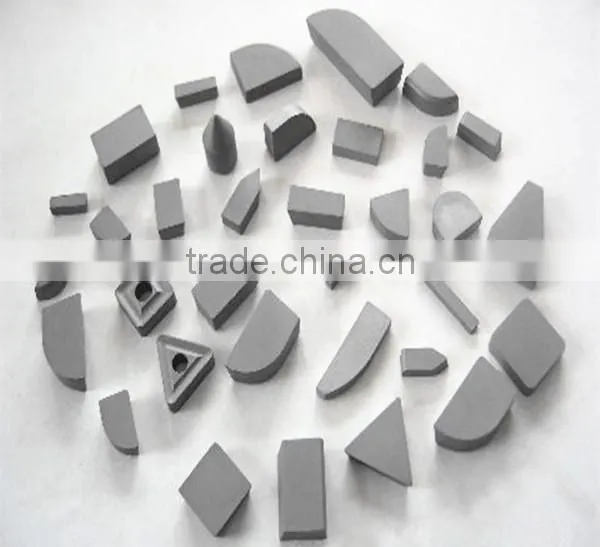

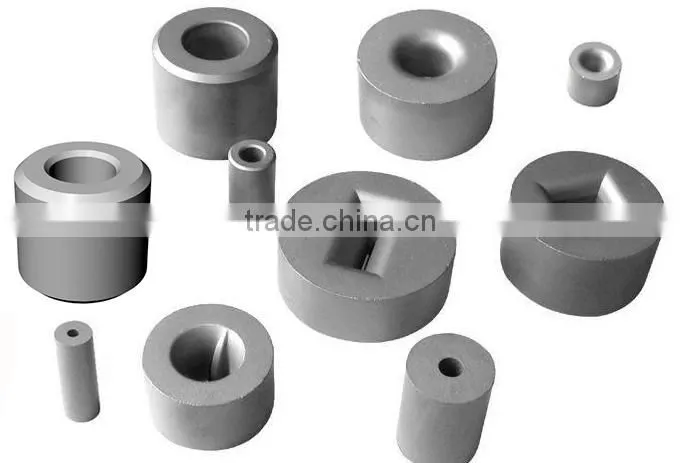

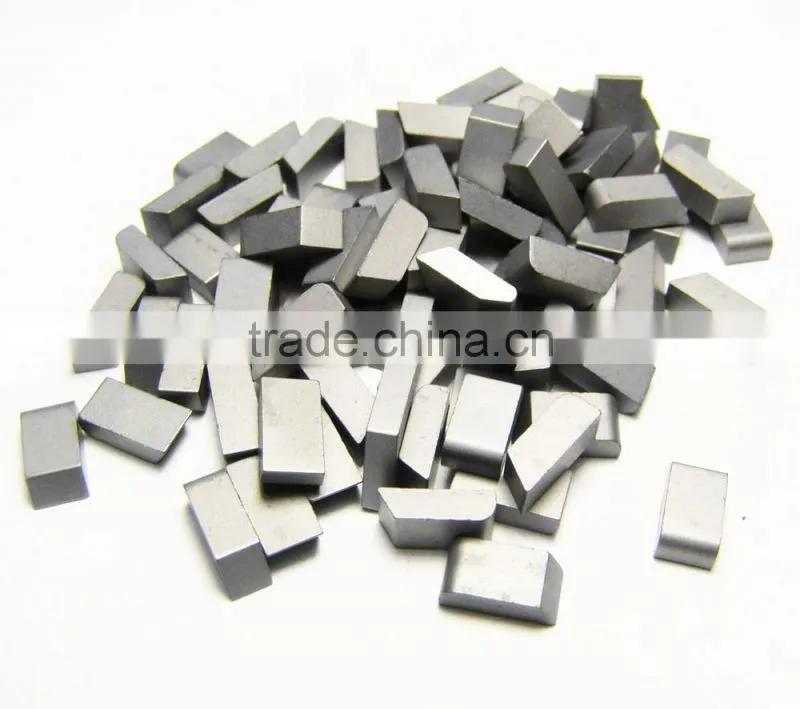

Tungsten carbide rod, strips, Disc, Sealing etc. | Tungsten Carbide Saw Tips | Carbide cold forging dies and wire drawing die |
|
|
|
|
|
|

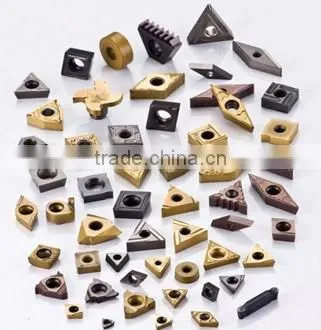

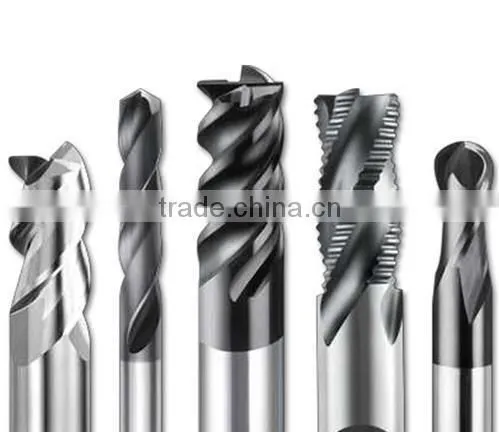

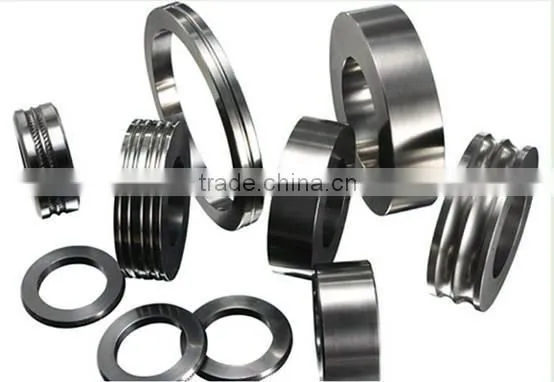

| Tungsten carbide roll | Tungsten Carbide End Mill | Tungsten Carbide Brazed Tips | Tungsten Carbide CNC Insert |
Are you looking for the right cooperative factory for Carbide ball ?
Just please send your Inquiry details as the Belows:
|

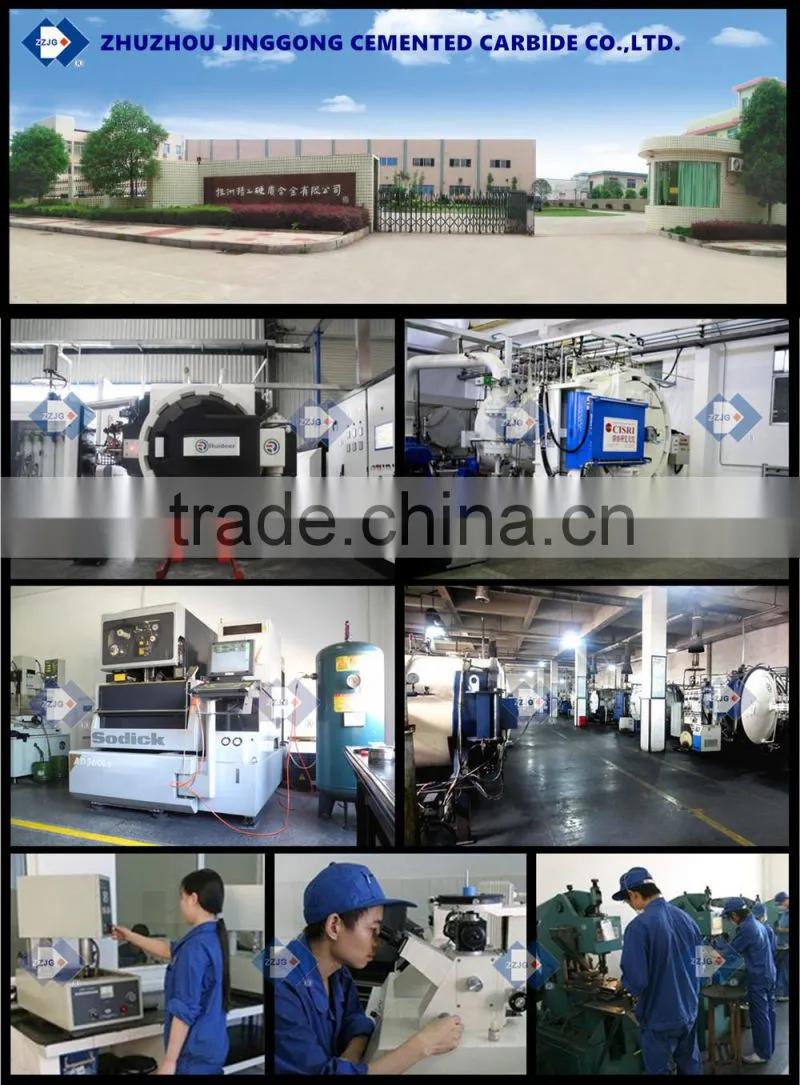

1. Are you the real reliable factory or just a trader company? Re: We are the REAL factory located in Zhuzhou,China, we currently have over than 200 employees,
2. There have many companies called they are 'factory', how can I identified the truth? |
