Specifications
1,FMB Series semiauto corrugated laminate machine2,chain feeding
3,famous components
4,CE and ISO
5. labor effective

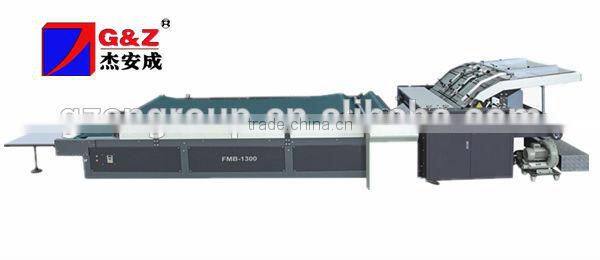

Semi Automatic Laminating Machine For Flute Box
Specification:
Items |
Unit |
FMB- 1000 |
FMB- 1300 |
FMB- 1450 |
FMB-1650 |
Top sheet |
g/m2 |
+ 200 |
+ 200 |
+ 200 |
+ 200 |
Bottom sheet |
gm2 |
A, B, C, D, E, F Flute board, or above 350gsm cardboard |
|||
Maximum sheet Size |
mm |
1000 x 1100 |
1300 x 1100 |
1450 x 1100 |
1650 x 1300 |
Minimum sheet Size |
mm |
320 x 450 |
320 x 450 |
320 x 450 |
320 x 450 |
Speed |
m/min. |
0-90 |
0-90 |
0-90 |
0-90 |
Total Power |
kw |
7 |
7 |
7 |
11 |
Power supply |
|
380V 3Phases 50Hz |
|||
Total Weight |
kg |
2900 |
3200 |
3800 |
4500 |
|
|
|
|
|
|
Feature:
1) FMB Series semiautomatic flute laminator uses vacuum sucking paper conveying type for the bottom paper, and top sheet is fed manually. This type of design is labor effective with low purchasing and production cost, easy operation and maintenance.
2) The glue apply roller is stainless steel material which can prolong the life of the machine.
3) Balance-tested roller and precise assembly make the machine much more stable.
4) The machine adopts automatic glue supply and recyclable glue circulating system.

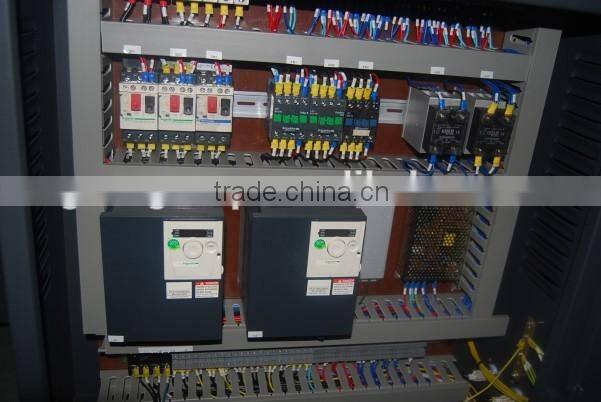

5) Top or bottom detectors are adopted to control the running of the machine. The electric components are worldwide famous brands.
6). The bottom sheet for this machine can be A, B, C, D, E, F flute board. The range of top sheet can be 150-600gsm cardboard.

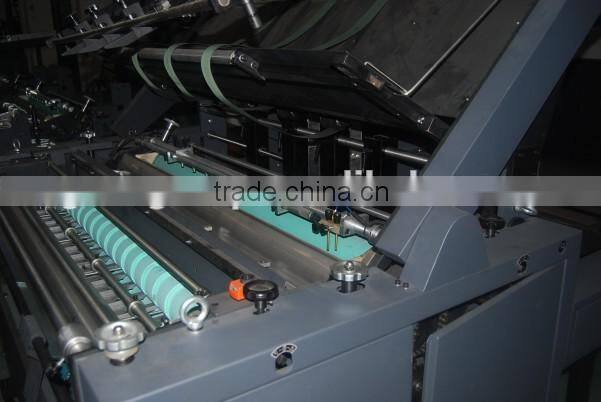

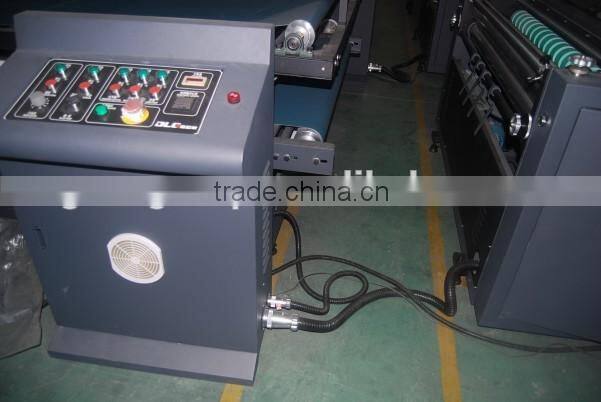

Details:

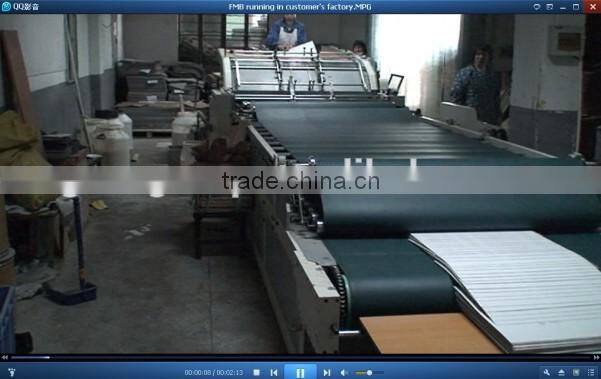

Working Video Available: Feel free to contact us

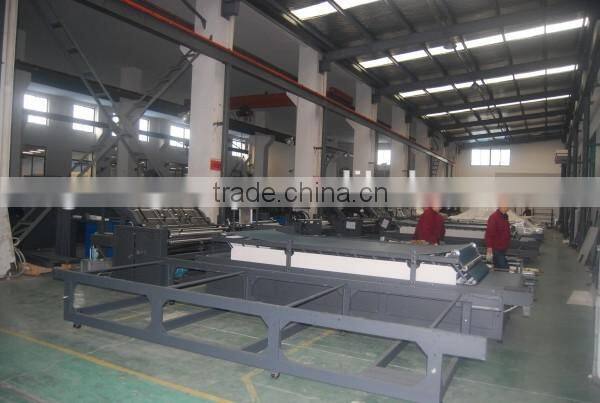

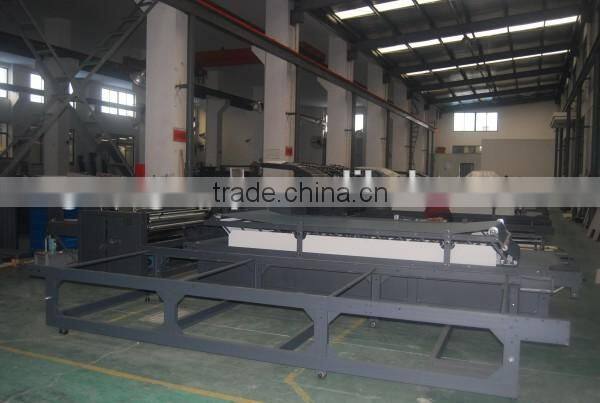

Our Warehouse:
We also sell:
Package and Shipping:
Our Company:
G&Z group is one of leading manufacturers specialized in laminating machines in China, our laminating machines are suitable for the color printed top sheet and corrugated paperboard, and have been installed all of the world, besides of the top machines' quality, we also have earned good reputation on our aftersales services.
