China hot sell wood cutting hand saw
USD $1,400 - $3,000
/ Set
1 Set(Min.Order)
- 300 Set / Sets per Month
- Qingdao Tianjin etc.
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Guangzhou Industrial-Grade High Quality Circular Chain Saws, Electric Lithium Cutting Machine, Welding Machines
-
Log square saw log push table saw machine band saw infrared edge saw double end head saw
-
Sawdust Dryer Machine
-
PCD Saw Blades for Woodworking
-
wood log cutting machine industrial table saw
-
Woodworking wood cutting machine sliding table panel saw wood saw machines
Product Details
| Condition: | New | Type: | Table Panel Saw | Use: | Woodworking |
| Style: | Horizontal | Place of Origin: | Shandong, China | Brand Name: | Sange |
| Model Number: | SG-2837 | Usage: | Woodworking | Voltage: | 220V/380V |
| Power(W): | 5.5kw | Dimension(L*W*H): | 2800*375mm | Weight: | 500KG |
| Certification: | CE,ISO | Warranty: | 12 Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
China hot sell wood cutting hand saw
Features of woodworking sliding table saw:
1. Max. adjustable angle of main saw blade: 45° or 90°

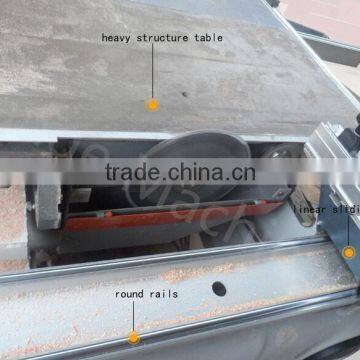

2. Slide rail type: Altendrof structure (A), round rod structure(D) or linear structure(Z).
3. Saw blade lifting and tilting system (manual or electric)
4. Sliding table length from 1500mm to 3800mm (usually we have 1600, 2200, 2600, 2800, 3000, 3200, 3800mm).
5. All the sliding table saw have CE certification.
Technicial Parameter:
| Dimension of sliding table | 2800*375mm |
| Gross cut capacity | 2800mm |
| Width of cut between saw blade and rip fence | 1250mm |
| Saw blade diameter | 300mm(250-300) |
| Height of cut (diameter:300mm) | 85mm |
| Height of cut with saw blade 300mm at 45 angle | 55mm |
| Speed of main saw spindle | 4000/6000rpm |
| Main spindle diameter | 30mm |
| Tilting saw blade | 45 degree |
| Main motor | 5.5kw |
| Scoring saw blade diameter | 120mm |
| Speed of scoring saw blade | 8000r/min |
| Scoring spindle diameter | 20mm |
| Scoring motor | 0.75kw |
| Net weight | 800kg |
| Gross weight(with wooden package) | 950kg |
| Overall dimensions | 2800*3150*900mm |
Applications:
The woodwoking sliding table saw is apply to processing all kinds of fiberboards,flake boards,
wood-based panels,ABS boards,PVC boards,acryl glass board and the solid wood etc,or the
panels with similar hardness.
