Specifications
High Quality Folding Carton Box Machinenvenient operation.
2.Fast shift,auto feeding
3.Automatic strapping
4.labor save

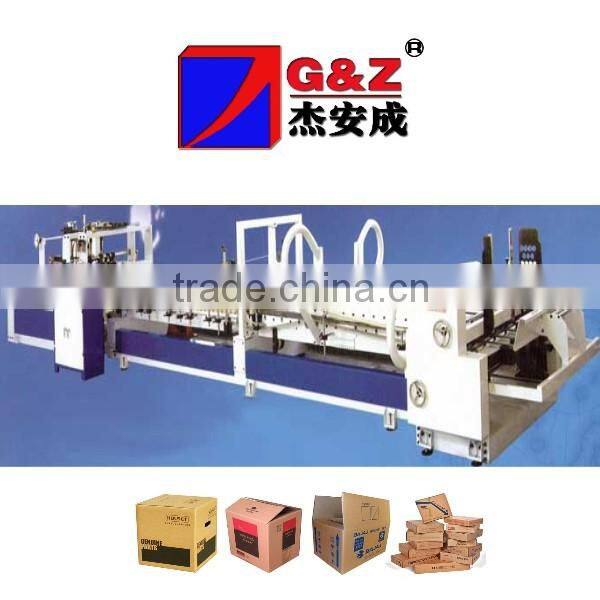

High Quality Folding Carton Box Machine
Specification:
TYPE | AG-2400 | AG-2800 |
Max. size (mm) | 1200×2400 | 1400×2800 |
Min. size (mm) | 300×800 | 300×800 |
Machine size (mm) | 3200×11500 | 3600×12000 |
Power (kw) | 12 | 12 |
AG-2400 automatic folder gluer consists of automatic feeding section, gluing and folding section and counting and stacking section. Touch screen input. The normal speed is 120 sheets/min.; and max. speed is 160 sheets/min.
Details:
1) feeding section
1. suction belt front edge feeding, accurate and reliable;
2. high quality electromagnetic clutch and brake system, and this section can be controlled along, easy operation;
3. the height of the pressing wheel can be adjusted; suitable for 2-10mm thickness of carton board;
4. linking action with folding section, speed is adjusted by VFD, feeding speed: 0-150 sheet/min;
5. the positions of the front baffle and the feeding belts can be adjusted;
2)gluing and folding section
1. the main motor is VFD speed adjustment; without noise, flexible speed adjustment, stability;
2. imported transportation belts;
3. stainless steel glue wheel;
4. there are paperboard and creasing correction devices;
5. paperboard specification: max. 1200X2400mm, min. 300X800mm;
6. high advanced edge alignment device, servo motor drive, PLC control, having patent right;
C. Count and ejector
1. PLC and touch screen digital control, can input parameters without stopping the machine; automatic counting and stacking;
2. having stacking ordering function;
3. pneumatic counting and stacking;
4. carton delivered by bottom belt and top synchronous pressing belt; pile height: 8-25 pcs of carton sheets;
5. separate VFD stacking speed adjusting 0-140m/min
Working Video Available: Feel free to contact us
Our Warehouse:
We also sell:

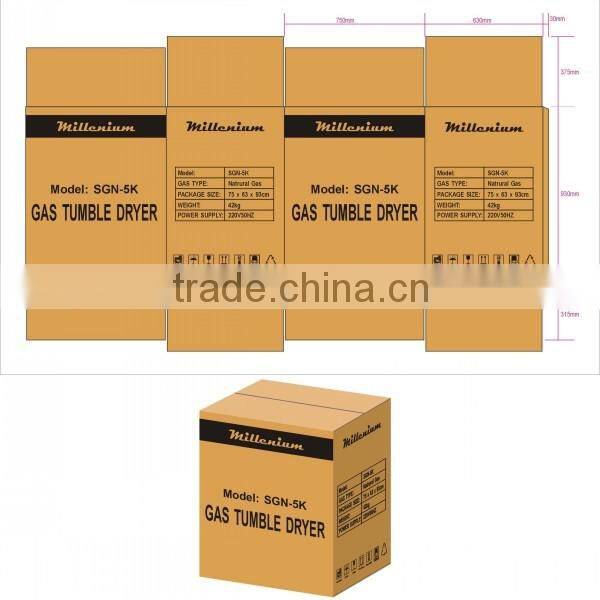

Carton Boxes:
Package and Shipping:
Our Company:
G&Z group is one of leading manufacturers specialized in laminating machines in China, our laminating machines are suitable for the color printed top sheet and corrugated paperboard, and have been installed all of the world, besides of the top machines' quality, we also have earned good reputation on our aftersales services.
