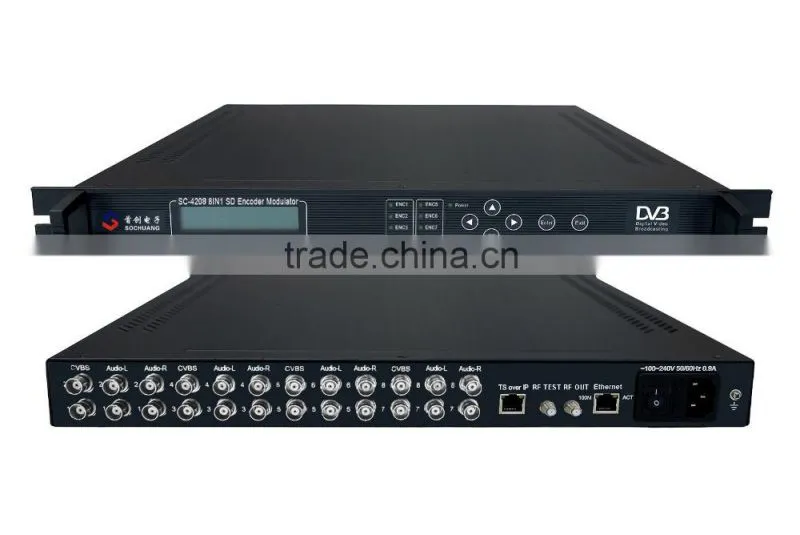

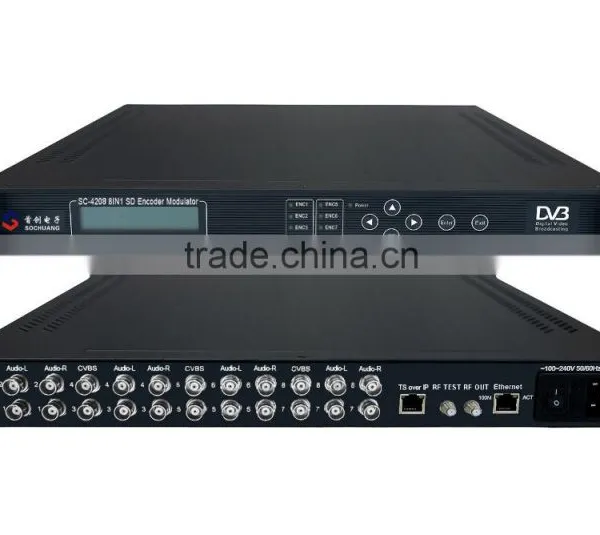

Help CenterSC-4208 8in1 MPEG-2 Encoder DVB-T Modulator
Related Products
-
SC-4174 4in1 ASI MUX-Scrambler QAM ModulatorNegotiableMOQ: 1 Set -
32 IP QAM Modulator / Iptv to Catv ModulatorUS$ 650 - 700MOQ: 1 Set
-
32 IP QAM ModulatorUS$ 650 - 680MOQ: 1 Set
-
Dvb-s/s2 to Dvb-c ModulatorUS$ 1 - 780MOQ: 1 Piece
-
Asi Scrarmbler Dvb-c Modulator (ASI in and DVB-C RF Out)US$ 1 - 450MOQ: 1 Unit
Overview
SD Encoder Modulator supports 8×CVBS and 8 pairs of unbalanced audio and IP input and 1×RF output. After coded and modulated, the input signal can be directly output or mixed output with original TV signal. It can be widely used in home entertainment, security and protection monitoring, hotel LCD panels, shopping mall advertising and other similar places.
Feature
u Integrated encoder and modulator
u 8CVBS+Audio and IP input
u DVB-T RF out
u RF Range: 36-900Mhz
u Keyboard+LCD control and network management
Technical Specification
Input |
Video Signal |
8×CVBS, BNC interface, level 1.0 Vp-p |
||
Audio Signal |
8 pairs of unbalanced audio, BNC interface, level 2.0 Vp-p |
|||
IP |
IP pass-through |
|||
Video Coding |
comply with ISO11172 (MPEG-1) & ISO13818 (MPEG-2) |
|||
MPEG-2 coding adopt MP@ML (4:2:0) | ||||
MPEG-2 Adaptive Field Frame (AFF) | ||||
MPEG-2 Field-Based (FB) | ||||
Resolution |
720×576 (PAL); 720×480 (NTSC) |
|||
Bit Rate |
1.0~15Mbps continuously adjustable per channel |
|||
Audio Coding |
Sampling |
32KHz, 44.1KHz, 48KHz |
||
Code Rate |
64, 96, 128, 256, 384Kbps |
|||
Property |
MPEG-1, Layer 1/2 |
|||
Output |
1×DVB-T RF (36-900MHz), F-head |
|||
DVB-T Modulation |
Frequency Range: 36~900MHz, 1KHz step |
Output Level: 60~90dB |
||
Constellation: QPSK, 16 QAM, 64 QAM |
Bandwidth: 6M, 7M, 8M |
|||
Baudrate: 1/2, 2/3, 3/4, 5/6, 7/8 |
Transmode: 2K, 8K |
|||
Protection Interval: 1/32, 1/16, 1/8, 1/4 |
MER: ≥42dB |
|||
Level Attenuation Range: 0~30dB | ||||
General Features |
Size |
482mm×410mm×44mm |
||
Temperature Range |
0~45°C (operation); -20~80°C (storage) |
|||
Power |
100-240VAC, 50Hz, 25W |
|||

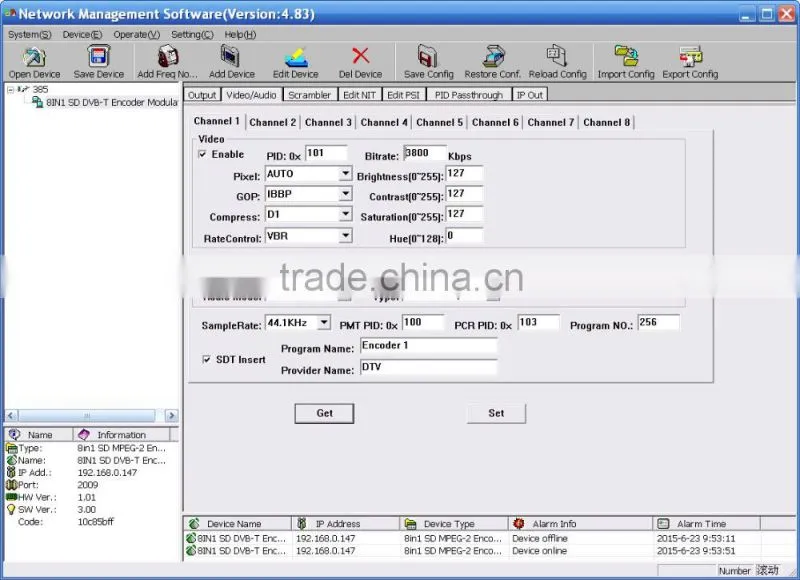

Network Management Software
l Free pre-sales and after-sales technical support
l 3 years warrantly
l Remote online support and training
l Hardware/Software upgrade support
