4in1 satellite  dvb-s2 dvb-c transmodulator(DisEqc/22KHz,8*DVB-S/S2+4*ASI in,4 QAM RF out)
Support multiplexer,scrambler









8*DVB-S/S2 to 4×QAM modulator with multiplexer-scrambler







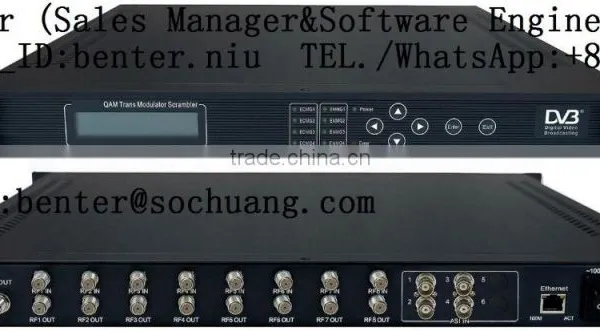

Overview



DVB-S2 to 4×QAM Trans-modulator support 6/8*DVB-S/S2 (QPSK/8PSK) transponders and 6/4/3*ASI input multiplex, and scramble 4*MPTS to output selected programs through 4×QAM RF channels. It provides a cost-effective and stable solution for TV operators to re-distribute programs via HFC network. It suits 1U rack and can be configured by front panel LCD and NMS (network management software).



Technical Specification



Input

RF

6*DVB-S/S2 or 8*DVB-S/S2 Tuners

ASI

6/4/3*ASI (BNC)

Frequency

950~2150 MHz

Symbol Rate

1~45 Msps

Output

Interface

F-head

IP(option)

Gigabit,4*MPTS TS UDP/Multicast

Impedance

75Ω

Frequency

47~870Mhz, 1khz step

Constellation

16, 32, 64, 128, 256 QAM

Standard

EN300429/ITU-T J.83A

Symbol Rate

5.0~9.0Msps, 1ksps step

Error-Correcting

RS code188/204

MER

≥40dB

BER

0

Output Level

85~105dBV

Level Attenuation

-20dBm~0dBm (per carrier), 0.5dB step

Scrambler

support 4×CAS/SMS DVB simulcrypt (ETSI TS 103 197 V1.4.1)

Control

IP remote

NMS (Ethernet Port, RJ-45), 10/100m base-TX,

Front panel

Keyboard + LCD

General

Features

Size

482mm×410mm×44mm

Temperature

0~45°C(Operation); -20~80°C(Storage)

Power

100-240VAC, 50Hz, 25W






Order Guide



4125

6*DVB-S2 to 4QAM TransModulator with Scrambler(6*DVB-S/S2+6*ASI in,4*DVB-C RF out)

4135

8*DVB-S2 to 4QAM TransModulator with Scrambler(8*DVB-S/S2+4*ASI in,4*DVB-C RF out)

4165

8*DVB-S2 to 4QAM TransModulator with Scrambler(8*DVB-S/S2+3*ASI in,4*MPTS-IP/DVB-C RF out)

4174

8*ASI to 4QAM Modulator with MUX-Scrambler(8*ASI IN,4*DVB-C RF out)

4154

IP/multicast to 4QAM Modulator with MUX-Scrambler(TS IP/multicast gigabit in,4*DVB-C RF out)














  Network management software



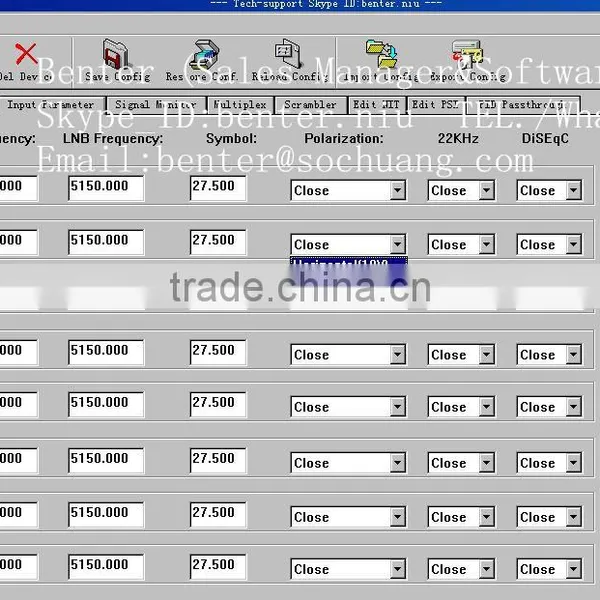

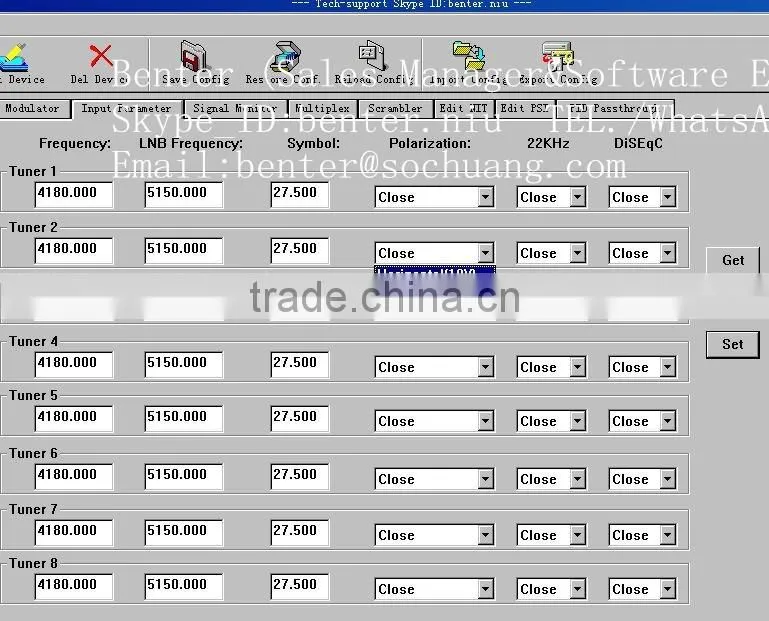

 Satellite parameter setting:

4in1 satellite dvb-s2 dvb-c transmodulator(DisEqc/22KHz,8*DVB-S/S2+4*ASI in,4 QAM RF out)



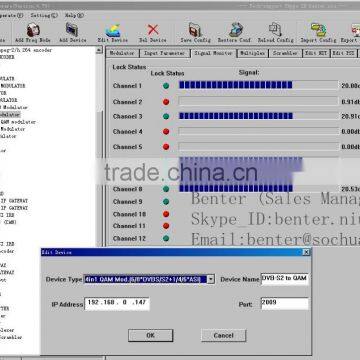

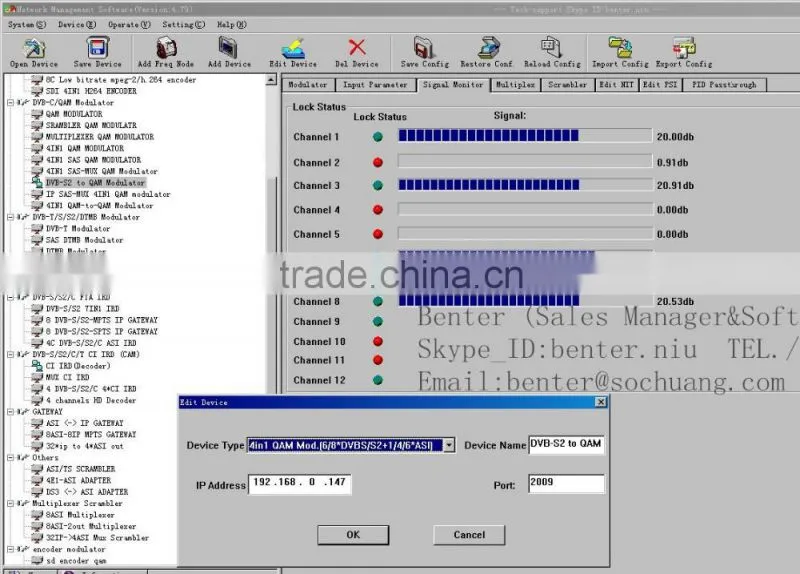

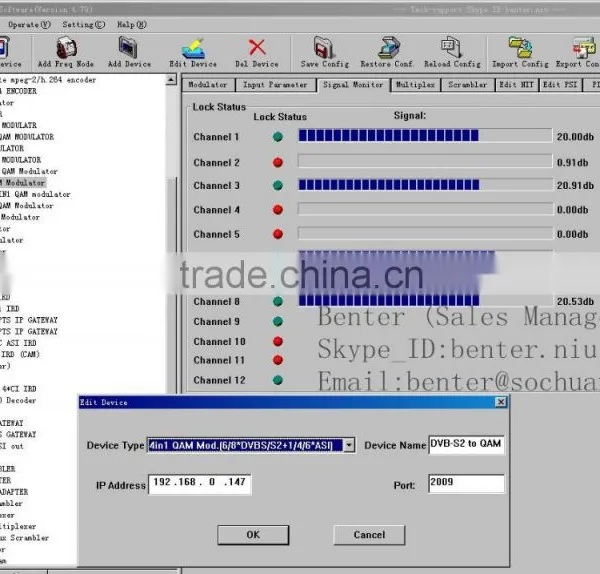

satellite signal monitor:

4in1 satellite dvb-s2 dvb-c transmodulator(DisEqc/22KHz,8*DVB-S/S2+4*ASI in,4 QAM RF out)





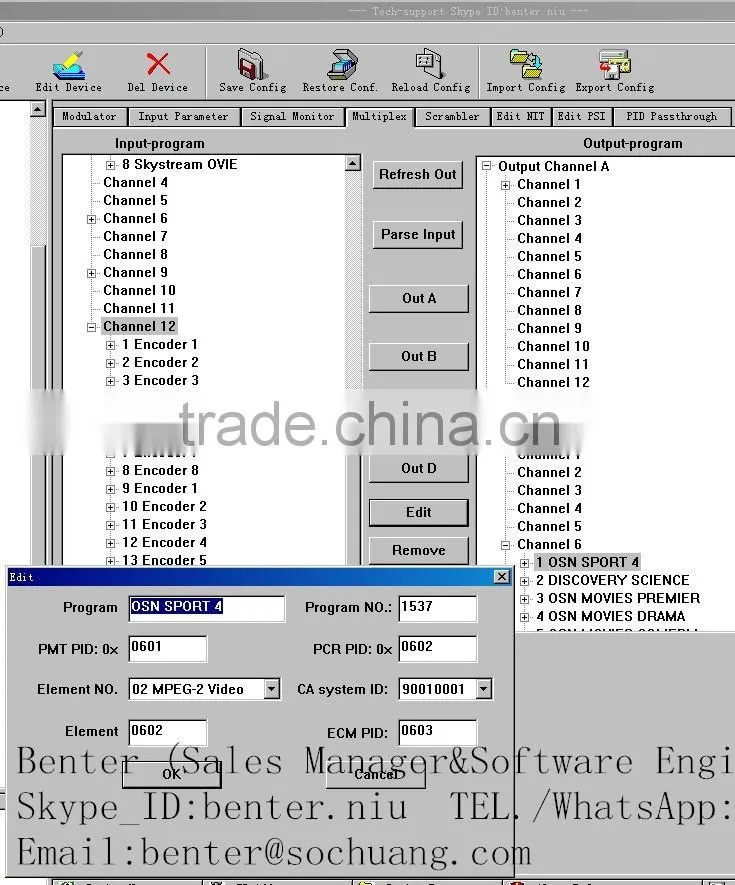

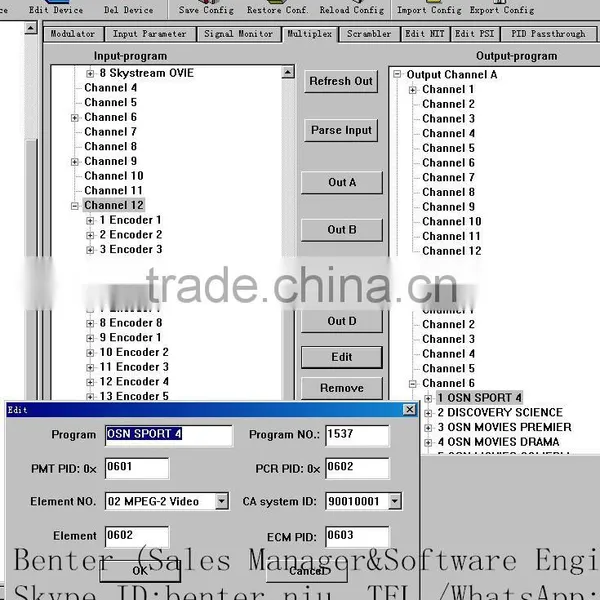

programs multiplex setting:

4in1 satellite dvb-s2 dvb-c transmodulator(DisEqc/22KHz,8*DVB-S/S2+4*ASI in,4 QAM RF out)





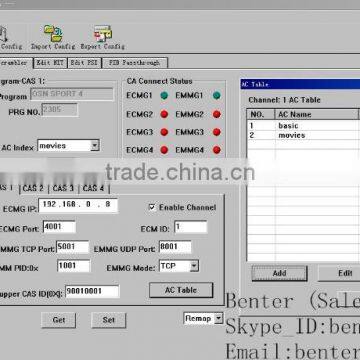

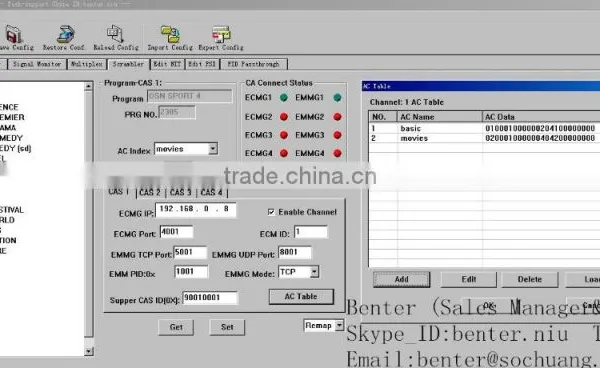

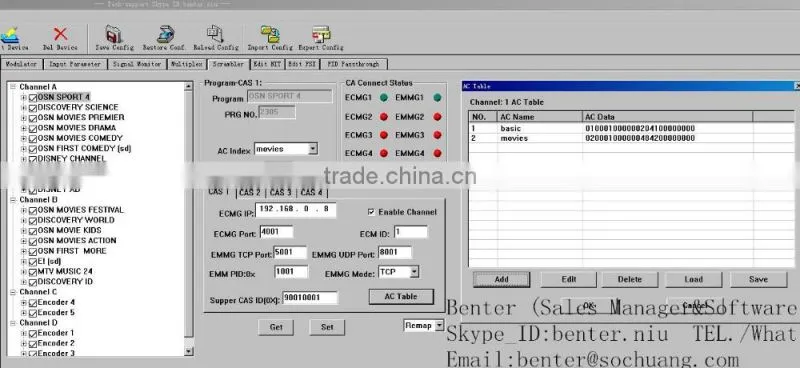

 Scrambler CAS/SMS Setting:4in1 satellite dvb-s2 dvb-c transmodulator(DisEqc/22KHz,8*DVB-S/S2+4*ASI in,4 QAM RF out)









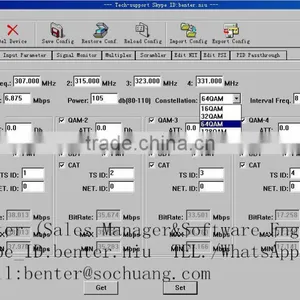

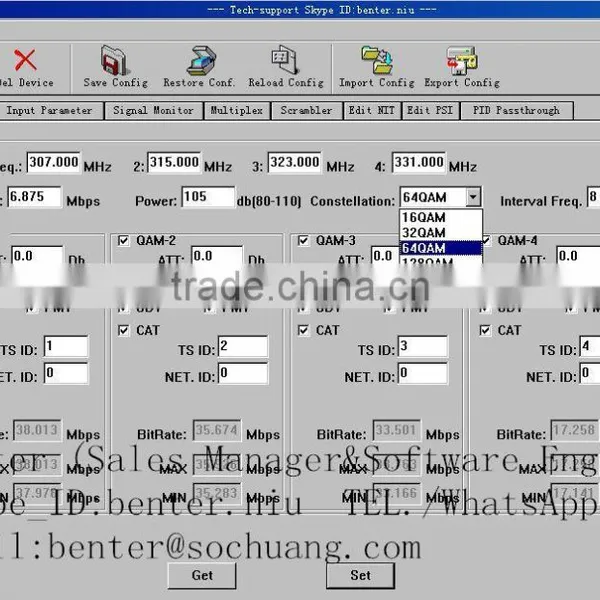

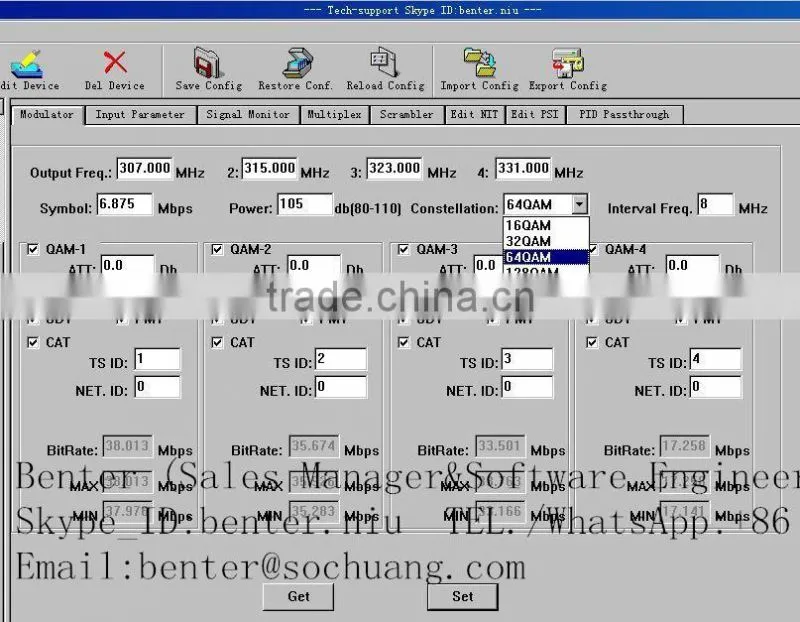

qam modulator output setting:
