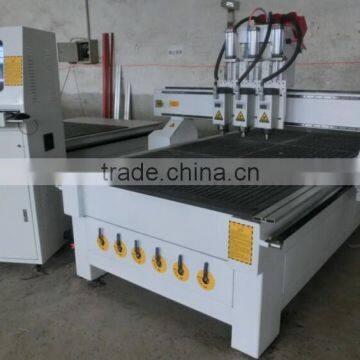

Help CenterHot Sale New Cnc Router Lathe Woodworking Wood Engraving Cutting Machine With Three Heads/made in China Senke Manufacture
Related Products
-
New Cnc Router Lathe Atc Engraving Carving Woodwooking Cutting Machine Milling/wood MDF/good Service/quality/high SpeedUS$ 722 - 11,500MOQ: 1 Set -
New Cnc Router Lathe Woodworking Engraving Cutting Machine/mulity Heads/for MDF PVC From Senke for Export/CE ISOUS$ 611 - 11,344MOQ: 1 Set
-
Hot Sale New Cnc Router Lathe Wood Woodworking Engraving Cutting Machine With Three Heads Spindles/high Speed for Export CE ISOUS$ 645 - 11,143MOQ: 1 Set
-
New Three Heads Spindles Cnc Router Lathe Engraving Carving Woodwooking Cutting Machine Milling/wood MDF Cheap Sale/CE ISOUS$ 650 - 11,500MOQ: 1 Set
-
New Cnc Router Lathe Woodworking Engraving Cutting Machine With Three Heads Spindles/good Quality/for Sale Export CE ISO COUS$ 680 - 11,344MOQ: 1 Set
woodworking cnc machine with three spindles
Model |
SKW-1325 |
Working area (X*Y*Z) |
1300*2500*200mm |
Table size |
1750*3050*1740mm |
Body structure |
Thicken steel made |
X, Y Structure |
Taiwan Miko rack and pinion |
rails |
Taiwan hiwin square rails |
Z Structure |
Taiwan TBI ball screw |
X, Y Resolution |
<0.01mm |
Max Moving Speed |
40000mm/min |
Max Engraving Speed |
20000mm/min |
XYZ traveling positioning accuracy |
±0.01mm |
XYZ repositioning accuracy |
±0.01mm |
Spindle power |
3.2KW HQD brand water cooling(4.5KW/5.5KW optional) |
collect |
ER25 |
Spindle Speed |
0-24,000rpm |
Voltage |
220v/single or 380v/3phase or as customer needed |
Drive type |
Stepper motors and leadshine drivers |
Working Dictate |
G Code |
Operating system |
DSP (A11 model)/(NC-studio,mach3 optional) |
Interface |
USB |
Flash memory |
128M |
software |
Artcam 8.1(free supply) |
Tool sensor |
Yes,included |
Auto oil lubricator |
Yes,included |
Wire protect |
Yes,included |
Running Environment |
Temperature: 0℃~45℃ |
package |
Export wooden box |
After packed size |
3.2*2.1*1.89M |
G.W |
1200kgs |
Advertising industry: advertising materials such as PVC, acrylic, double color plate processing
Operation
all senke machine sending with software CD,software manual,teaching video,machine operate manual,packing list,if you want view first,please kindly contacted we seller directly,we send by email
Videos
if you want check,how the machine work,please kindly contact we seller,we will send to you senke router working video.
Training
we senke team was constituted by skilled staff,anyone of them with years experience,can operate all style control system machine skilled and adept,if you needed,we engineer oversea services available,detailed charges please contacted we seller,also if you like,welcome to us,in we factory,the training service itself free.
Laser cutting machine cut on wood :https://youtu.be/2EzHKQHgP_w
Cnc moulding&engraving machine on foam :https://youtu.be/Jr_A_vw51FY
Cnc router with ATC in disk engraving machine: https://youtu.be/sYuP-4dlJuU
Cnc machine with ATC in linear engraving on wood :https://youtu.be/2aBXJwkOpbM
Cnc cutting machine professional for glass:/watch?v=4BLk3XsURvU
Cnc multi heads engraving on sofa leg:/watch?v=iKvj7Nd86hQ
Cnc with three spindles auto tool change: /watch?v=4urGnn33B64
Package&shipping
This product is not what you want?
The more you want to contact us!
Details pls find below
If you have the need and interested, please contact Kelly!!
