muds dvb-s dvb-s2 modulator (ASI/IP IN,DVB-S2 RF out,950-2150mhz 17.2-39.9mbaud/s,qpsk&8psk)
ASI DVB-S/S2 Modulator (950-2150 MHz)
Overview
ASI DVB-S/S2 modulator supports ASI input,RS coding,convolution interleaving and DVB-S(QPSK)/DVB-S2(QPSK/8PSK) modulation channel processing, it gives RF signal output.
Technical Specification
Input Interface |
1* ASI IN, (DVB standard, BNC interface) |
|
1*100mbps IP(TS over UDP) port | ||
Output Interface |
RF, option: F-head or N-head |
|
Modulation Mode |
DVB-S(QPSK)/DVB-S2(8PSK) |
|
DVB-S2 |
QPSK: 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 |
|
DVB-S |
QPSK: 1/2, 2/3, 3/4, 5/6, 7/8 |
|
Roll-off Factor |
0.2, 0.25, 0.35 |
|
Impedance |
75Ω |
|
Output Frequency |
950~2150MHz (1khz step) |
|
Symbol Rate |
17.2~39.99 Mbaud/s |
|
Error-Correcting Codes |
RS code188/204 |
|
MER |
≥35Db |
|
Output Level |
80~104Dbv |
|
Level Attenuation |
-20dBm~0dBm (0.5db step) |
|
Management |
network RJ-45, 10/100M |
|
Keyboard+LCD | ||
|
General Features |
Size |
410mm×280mm×44mm |
Temperature |
0~45°C (Operation); -20~80°C (Storage) |
|
Power |
100-240VAC, 50Hz, 25W |
|
Order Guide
4112 |
ASI in, DVB-S/S2/QPSK/8PSK RF out (950-2150MHz,1-45mbaud/s) |
4122 |
ASI/IP in,DVB-S RF out(950-2150MHz,17.2-39.9mbaud/s,qpsk/8psk) |
Network Management:
Modulator setting:
Developing :
Assembling :
Packing:

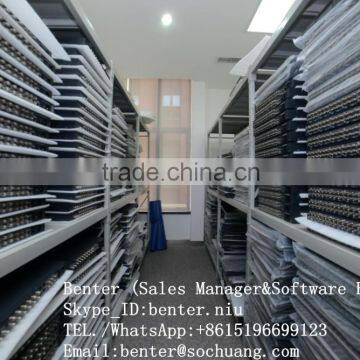

Stocking:
Company information:
Certificate&Exhibition:
