China Factory Supply Three Spindle Head Pneumatic Tool Changer Cnc Router for Wood Carving , Cnc Wood Machine 1325

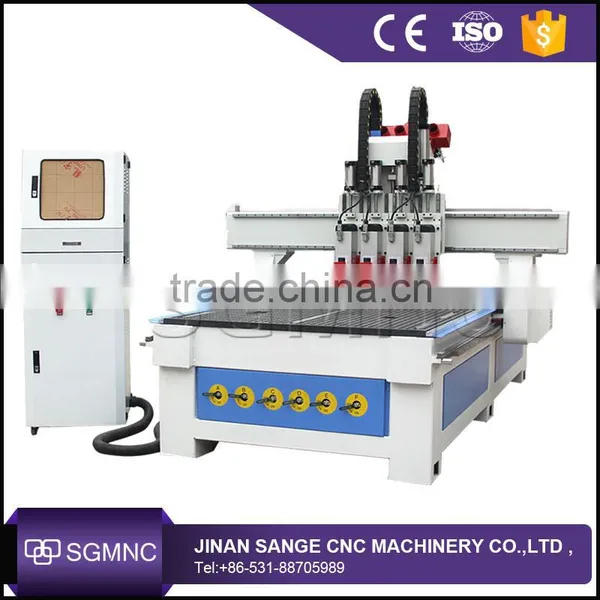

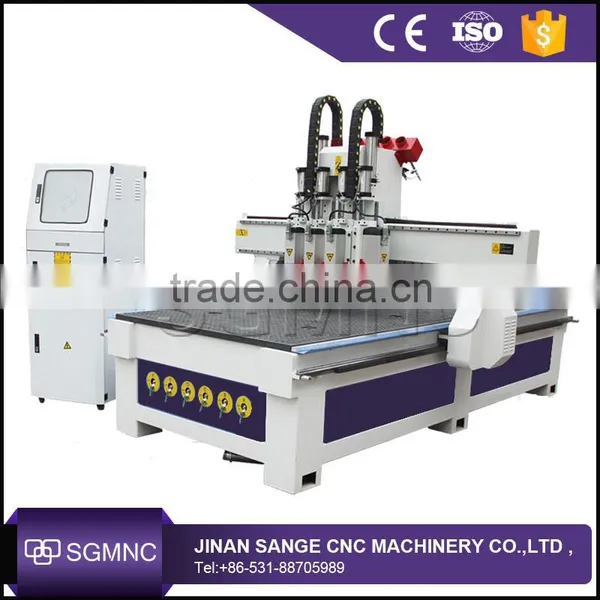

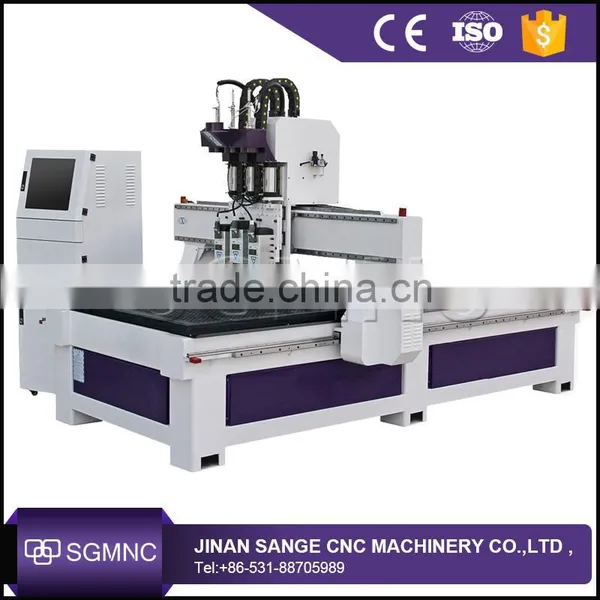

China Factory Supply Three Spindle Head Pneumatic Tool Changer Cnc Router for Wood Carving , Cnc Wood Machine 1325 photo-1

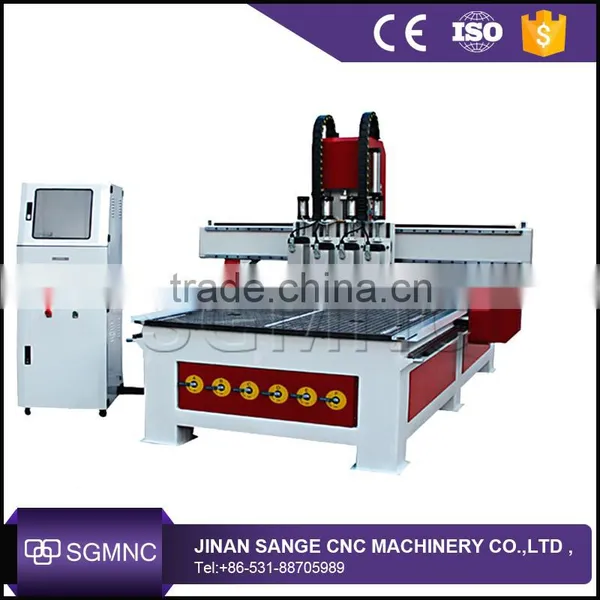

China Factory Supply Three Spindle Head Pneumatic Tool Changer Cnc Router for Wood Carving , Cnc Wood Machine 1325 photo-2
China Factory Supply Three Spindle Head Pneumatic Tool Changer Cnc Router for Wood Carving , Cnc Wood Machine 1325 photo-3
China Factory Supply Three Spindle Head Pneumatic Tool Changer Cnc Router for Wood Carving , Cnc Wood Machine 1325 photo-4
China Factory Supply Three Spindle Head Pneumatic Tool Changer Cnc Router for Wood Carving , Cnc Wood Machine 1325 photo-5
US$ 8,000 - 12,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Condition New
CNC or Not CNC
Place of Origin Shandong, China
Brand Name Sange
Model Number SG-1325-3
Voltage 3phase AC380V/50HZ
Power(W) 4.5KW
Dimension(L*W*H) 1300*2500*200mm
Weight 1800KG
Certification CE ISO9001,FDA,SGS,CIQ
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

China factory supply three spindle head pneumatic tool changer cnc router for wood carving , cnc wood machine 1325

This cnc wood  carving machine for decorative wood mouldings specialize in processing wooden door,cabinets,automatic change 2,3or 4 spindles with higher performance

Application

1.Furniture: wooden door and furniture, windows, tables and chairs,cabinets and panels, 3D wave plate,MDF,computer desk,musical instruments,etc

2.Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,light-box mold,stamp,mound,etc

3. Board processing:  insulation, plastic chemical components, PCB, car body, bowling track, ABS, PP, PE, etc.

4. Decoration:  Acrylic, PVC, MDF, glass, plastic and soft metals such as copper and aluminum.

Main Features.

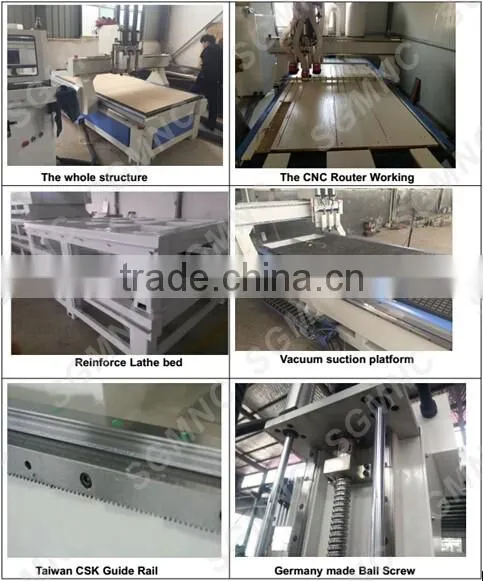

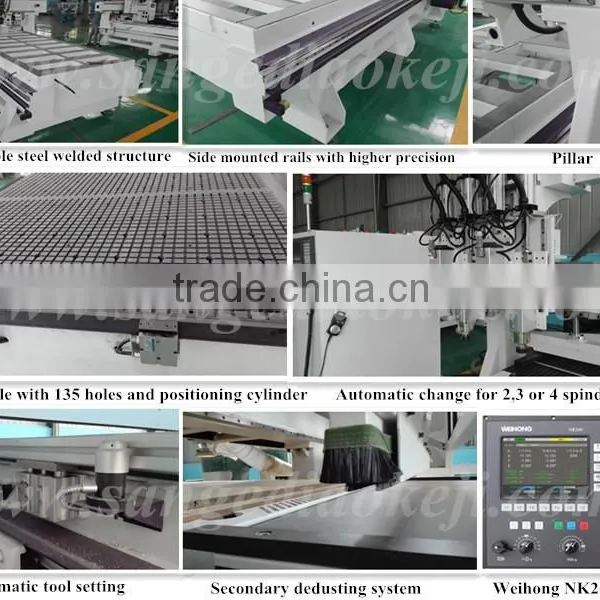

1)This cnc wood carving machine with 3 spindles bed structure using generous walled tube T-type structure,tempering and vibration aging treatment with import 5 axis metal milling precision machining centers.

2)The whole structure with side mount rails,with high performance and precision,dust-proof design of the whole structure of the rack rails with sub-type structure ,rail replacement without professionals,more convenient.

3)Three spindles can automatic change to save time and only set origin one time,avoid tool marks.

Item
Parameter for cnc wood  carving machine
X,Y,Z Working Area
1300x2500x200mm
Table Size
1340×3640mm
X,Y,Z Traveling Positioning Accuracy
±0.03/300mm
X,Y,Z Re-positioning Accuracy
±0.03mm
Table Surface
Vacuum and  T-slot Combined (Option: T-slot Table)
Frame
Welded Structure
X, Y Structure
Rack and Pinion Drive, Taiwan CSK Rail Linear Bearings
Z Structure
Taiwan CSK Rail Linear Bearings
Max. Rapid Travel Rate
50000mm/min
Max. Working Speed
25000mm/min
Spindle Power
4.5kw *3(optional:6kw/7.5KW)
Spindle Speed
0-18000RPM

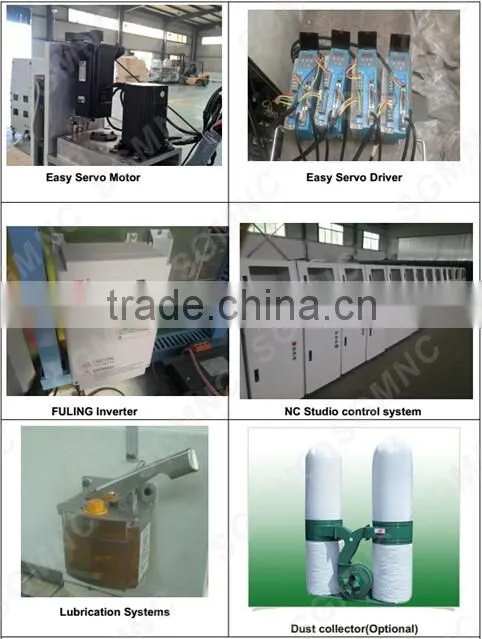

Drive Motors
Servo motor and drive( Japan YASKAWA/Panasonic)
Working Voltage
AC380V/50/60Hz,3PH (Option: 220V))
Command Language
G code
Operating System
Original NC studio controller system  (options: Taiwan Syntec )
Collect
ER25
X,Y Resolution
<0.03mm
Software Compatibility
Type3/Artcam/  Software (Option: UcancameV9 Software)
Dust collector
YES
Our Service

1)The engineers are available to go to your country for overseas’ after-sale service in time and professionally.

2)24 hours heart to heart service on-line or mobile.

3)We offer free training in our factory

4)The warranty of machine decorative wood mouldings is 12 months, small broken parts could be freely replaced at any time, spare parts are delivered with machine for customer convenience.

5)We offer you best agent price and distributor price for our further cooperation.

6) we can offer special custom-made according to your request.

FAQ

Q1: Are you factory or trading company?We are manufacturer of machine decorative wood mouldings with 14 years experiences, have three workshops and over 18,000 square meters,180 employees
 (including 55 technical personnel), more than 60 sets processing equipment s.

Q2: How can I get the best machine decorative wood mouldings ?Just tell me your requirements on the machine, we will provide the best suitable product for you.

 Also, we have designer team to meet any of your requirements.

Q3: This is the first time I use this kind of machine, is it easy to operate?The Operation Manual will be send to you with the machine, it's in details, if you still confused, we can provide training or  specialized teaching video for you.

Q4: If the machine has problem in my place, how could I do?We offer remote assistance in 24 hours, ensure that solve your problem in time. or change damage parts for free during warranty.
