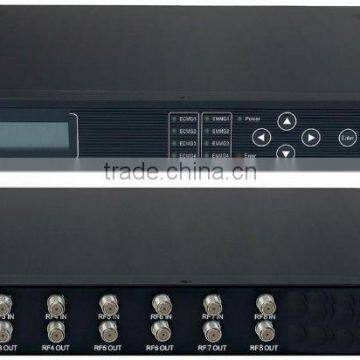

DVB-S to DVB-T Modulator (8*DVB-S/S2 In,3*DVB-T RF Out)

DVB-S to DVB-T Modulator (8*DVB-S/S2 In,3*DVB-T RF Out) thumbnail-1
DVB-S to DVB-T Modulator (8*DVB-S/S2 In,3*DVB-T RF Out) thumbnail-2
DVB-S to DVB-T Modulator (8*DVB-S/S2 In,3*DVB-T RF Out) thumbnail-3
DVB-S to DVB-T Modulator (8*DVB-S/S2 In,3*DVB-T RF Out) thumbnail-4
DVB-S to DVB-T Modulator (8*DVB-S/S2 In,3*DVB-T RF Out) thumbnail-5
DVB-S to DVB-T Modulator (8*DVB-S/S2 In,3*DVB-T RF Out) thumbnail-6
DVB-S to DVB-T Modulator (8*DVB-S/S2 In,3*DVB-T RF Out) photo-1
DVB-S to DVB-T Modulator (8*DVB-S/S2 In,3*DVB-T RF Out) photo-2
DVB-S to DVB-T Modulator (8*DVB-S/S2 In,3*DVB-T RF Out) photo-3
DVB-S to DVB-T Modulator (8*DVB-S/S2 In,3*DVB-T RF Out) photo-4
DVB-S to DVB-T Modulator (8*DVB-S/S2 In,3*DVB-T RF Out) photo-5
DVB-S to DVB-T Modulator (8*DVB-S/S2 In,3*DVB-T RF Out) photo-6
US$ 1 - 880 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
sochuang
Model Number:
SC4126
Contact Supplier Request Quote Chat Now
Chengdu Sochuang Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
chengdu
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Sichuan, China
Brand Name sochuang
Model Number SC4126

DVB-S to DVB-T Modulator (8*DVB-S/S2 in,3*DVB-T RF out)









8*DVB-S/S2 to 3*DVB-T modulator

DVB-S to DVB-T Modulator (8*DVB-S/S2 in,3*DVB-T RF out)

Overview

DVB-S2 to DVB-T Trans-modulator support 8*DVB-S/S2 (QPSK/8PSK) transponders input multiplex, and output selected programs through 3*DVB-T RF.

Technical Specification

Input

Frequency

950~2150 MHz

Symbol Rate

1~45 Msps

RF Tuner in

8*DVB-S/S2 Transponders/Tuners

Output

RF

3in1 DVB-T F-head

Frequency Range

36~900MHz, 1KHz step

Output Level

60~90dB

Constellation

QPSK, 16 QAM, 64 QAM

Bandwidth

6M, 7M, 8M

Baudrate

1/2, 2/3, 3/4, 5/6, 7/8

Transmode

2K, 8K

Protection Interval

1/32, 1/16, 1/8, 1/4

MER

≥40dB

Level Attenuation Range

0~30dB

Control

Front panel

NMS (Ethernet Port), Keyboard + LCD(front panel)

General

Features

Temperature

0~45°C (Operation); -20~80°C (Storage)

Size

482mm×410mm×44mm

Power

100-240VAC, 50Hz, 25W


Order Guide

4126

8×DVB-S2 to DVB-T TransModulator(8*DVB-S/S2 in,3*DVB-T RF out)

4208

8×AV in, DVB-T RF out

4202

4IN1 H.264 HDMI DVB-T Modulator(4HDMI in,DVB-T RF out)

4106

DVB-T Modulator(ASI IN,DVB-T RF out)












  Network management software

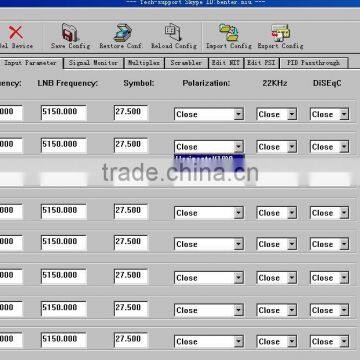

Satellite input parameter setting:

DVB-S to DVB-T Modulator (8*DVB-S/S2 in,3*DVB-T RF out)

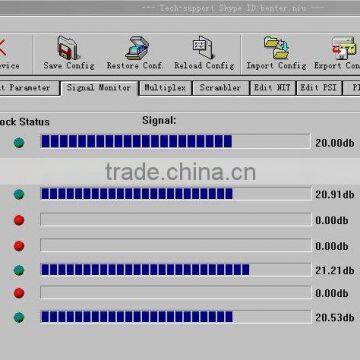

satellite signal monitor:

DVB-S to DVB-T Modulator (8*DVB-S/S2 in,3*DVB-T RF out)

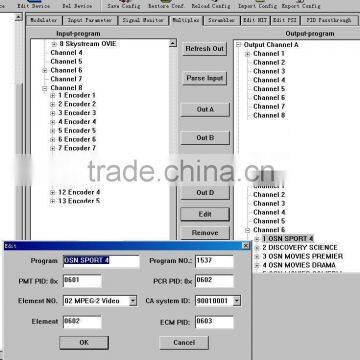

programs multiplex setting:

DVB-S to DVB-T Modulator (8*DVB-S/S2 in,3*DVB-T RF out)

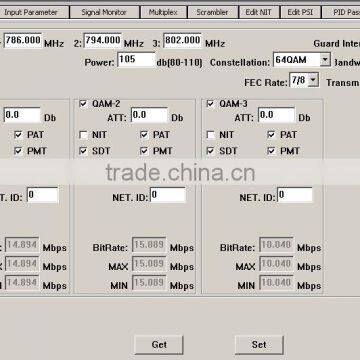

DVB-T modulator output setting:

DVB-S to DVB-T Modulator (8*DVB-S/S2 in,3*DVB-T RF out)

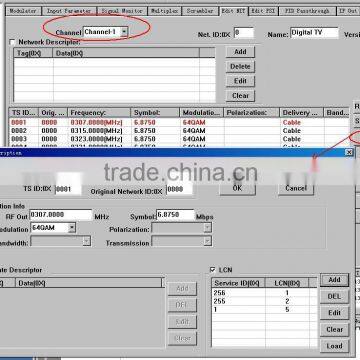

Nit table edit and insert:

DVB-S to DVB-T Modulator (8*DVB-S/S2 in,3*DVB-T RF out)







 DVB-S to DVB-T Modulator (8*DVB-S/S2 in,3*DVB-T RF out)




Assembling :

DVB-S to DVB-T Modulator (8*DVB-S/S2 in,3*DVB-T RF out)







  Packing:

DVB-S to DVB-T Modulator (8*DVB-S/S2 in,3*DVB-T RF out)





Stocking:

DVB-S to DVB-T Modulator (8*DVB-S/S2 in,3*DVB-T RF out)











Company information:                                                   DVB-S to DVB-T Modulator (8*DVB-S/S2 in,3*DVB-T RF out)





Certificate&Exhibition:



DVB-S to DVB-T Modulator (8*DVB-S/S2 in,3*DVB-T RF out)



 DVB-S to DVB-T Modulator (8*DVB-S/S2 in,3*DVB-T RF out)
