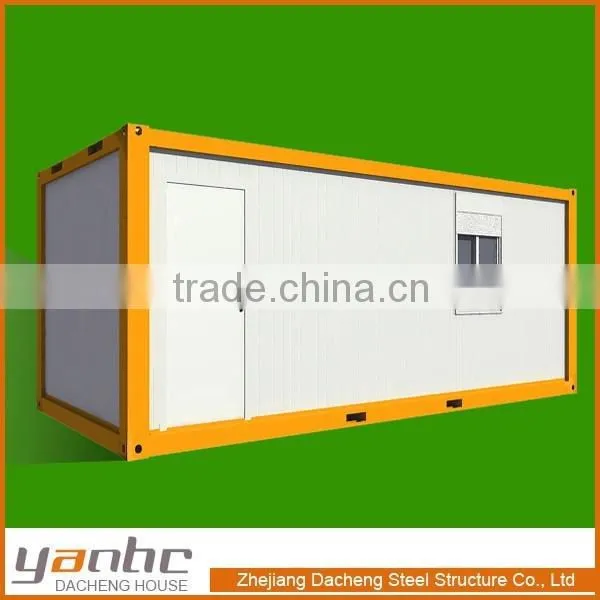

Prefabricate Flatpack Modular Prefabricated Houses South Africa For Dwelling Accommodation

Name: Prefabricate Flatpack Modular Prefabricated Houses South Africa For Dwelling Accommodation
Brand: Dacheng
Price: USD $2,800 - 4,500 / Set

FOB Price

USD $2,800 - $4,500 / Set

5 Sets(Min.Order)

Supply Ability 200 Set / Sets per Month
Port shanghai
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Zhejiang, China	Brand Name:	Dacheng	Model Number:	DC-FP-009
Material:	Other, Steel, Hot dip galvanized steel	Use:	Hotel, House, Other, Office, Shop, Toilet, Villa, Hotel, House, Kiosk,Booth, Office, Sentry Box,Guard House, Shop, Toilet, Villa, Workshop,Plant

Product Description

Container House , 20ft Sandwich Panels House , Sandwich Panel House, Container Panel House, Pre Assembled House

Product Description

Prefabricate Flatpack Modular Prefabricated Houses South Africa For Dwelling Accommodation

1. Enviromental Friendly
2. Long life span
3. Convenient to move,
4. Prefabricated Steel container
5. Easy to install

Name	Type	Material	Size
Wall Panel	1.Wall panel with steel sheet on both external and internal sides 2. Wall panel with steel sheet on external side and chipboard on internal side	1.EPS 2.Mineral Wool 3.PU 4.Glass Wool	Width:1150mm Thickness : Customizable (rang from 75mm to 100mm)
Door	1.Steel Door 2.Aluminum Door 3.Aluminum Alloy Door 4.PVC Door 5.Fireproof Door 6.security door	1.Honeycomb Paperboard 2.EPS 3.PU	Ordinary Size: 9501995mm 8702040 Customizable
Window	1.Sliding Window 2.Tilt & Turn Window	1.PVC 2.Aluminum Alloy	Ordinary Size: 945 x 1,200 mm 800 x 1,100 mm Customizable
Electrical Installation	Switch and Socket	1. CE Standard 2. Australia Standard 3. UL Standard
Electrical Installation	Electrical Circuit

1. Materials Description:

Components	Long beam	3mm galvanized
	Short beam	2.5mm galvanized
	Column	3mm galvanized
	Wall panel	75mm EPS sandwich board
	Roof panel	75mm PU sandwich board
	Secondary beam	Z-shaped galvanized steel iron
	Roof insulation	75mm polyurethane
	Floor panel	18mm plywood panel+12mm laminated floor or 20mm cement-fiber +2mm PVC
	Door	Steel Security door,740mmx1950mm
	Window	PVC Sliding window with Rolling shutter,1100mmx800mm
	Electricals, water supply and drainage	according to the local law
	Furniture and Appliance	Customized-made to your requirements

2. Advantages

Construction Efficiency	1 Unit installed by 2 workers within 1 day
Long life time	Max. 20 years
Roof load	0.5KN/sqm (can reinforce the structure as required)
Wind speed	Designed wind speed: 210km/h
Seismic resistance	Magnitudes 8
Temperature	suitable temperature.-50°C~+50

Layout Designs

3. Hot Dip Galvanized Steel Frame

The seamless welded light steel frame is firstly Hot Dip Galvanized and then painted with Anti-Corrosive paints which makes the house more firm and more durable.

The roof of the container house is integrated with PU (steel parts+colored steel sheet on both sides+PU foaming), it has best water proofing performance. Bearing capacity is 0.5t. As for the wires, they are firstly installed in the roof which will make the house installation more convenient and more safe.

The wall system is consists of sandwich panel (colored steel sheets on both sides and thermal insulation, or stainless steel sheet with thermal insulation). As for the insulation, you can choose EPS, PU, XPS, ROCK WOOL(density: 100kgm³). The thickness of the external wall is 75mm or 100mm, and generally the thickness of the partition board is 50mm. The window and door are fitted on the wall panel, so you can easily adjust their position by exchanging the place of the wall panel. you can also add more windows and doors. The bottom of the container house is fitted with fork lift holes, providing the option to move it. The standard floor will be laminate floor or PVC floor, in order to get more comfortable living place, you can also add more insulation such as rockwool.

4. Installation

5. Inside Facilities

6. Packing & Shipment

20Ft: 6 Units/1x40'HC 40Ft: 3 Units/1x40'HC

Our Services

DACHENG HOUSE serial container house is a kind of modular house, consisting of light steel frame and thermal insulation material. It is a new type of energy conservation and environment protection house which is easy and convenient to install. Currently, the DACHENG HOUSE serial container houses have been exported to more than 70 countries all over the world, such as Brazil, South Africa, Dubai, Japan etc.

Except the standard 20’ container house, DACHENG HOUSE can also offer you 10’, 16’, 40’ container house and other sizes according to your demands. What’s more, the different sizes container house can be combined. It can be 4 layer in the vertical, and it can be combined with any quantity or any position in the horizontal. DACHENG HOUSE is trying its best to solve the housing problem for clients.

Our Factory:

Contact Us:

---------------------------------------------------------------------------------------------------------------------------------------------------------

Zhejiang Dacheng Steel Structure Co., Ltd.
Busisiness scope: Container house, Light steel villa, Steel structure house, Prefabricated house, Building Materials, Sandwich panels, Corrugated steel sheets, Steel Coil, Refrigerators
Add: District for Economy and Technology Development of Xiaoshan, Hangzhou, Zhejiang , China
Tel: +86 573 87610068 Mob: +86 18868880808

....

Contact Us

Zhejiang Dacheng Steel Structure Co., Ltd.: Contact nameDacheng Steel; Phone86-573-87610068; AddressEast of Xiaoshan Economic-Technological Development Area, Xiaoshan District, Hangzhou City,ZheJiang Province,China(Mianland) Hangzhou,Zhejiang
