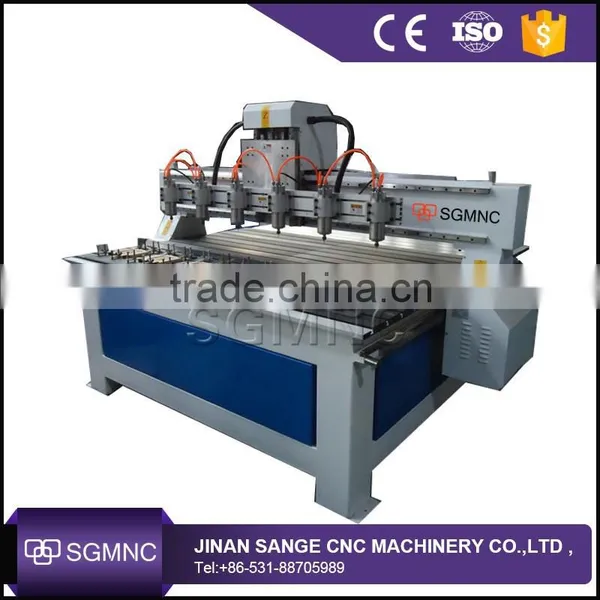

Multi-head 3d wood cutting cnc machine

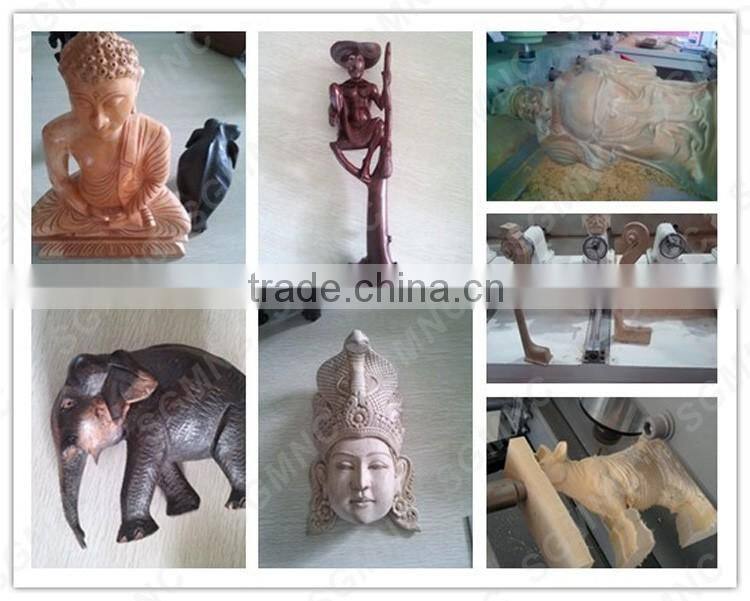

----This machine is suitable for batch production of wood mascot, ornaments, small crafts.
It can save time and improve the work efficiency.
Standard Features:
1. Whole machine is welded with seamless steel structure, with aging treatment.
2.Taiwan HIWIN high precision linear orbit. X and Y axes adopt rack and pinion transmission, fast working, high efficiency . Z axis adopts Germany and Taiwan ball screw,with high precision and long life time.
3. Well compatibility: CAD/CAM designing software e.g. Type 3/ Artcam/ Castmate/ Wentai etc.
4. 6 or 8 spindles can working on same time , fast speed, improve the working efficiency.
5.The machine can choose updated DSP or Original Nc Studio computer control system.
6. Perfect oil-inject system makes maintenance much easier.
7. We provide the DSP operating instruction in English, a set of cutters, software, necessary tools and accessories for free.
Technical Specifications:
Configurations |
SG-1625 |
Working Area (X Axis) |
1600mm |
Working Area (Y Axis) |
2500mm |
Drive System (Z Axis) |
200mm |
Spindle |
2.2kw water-cooled |
Spindle Speed |
Adjustable 0-18,000 rpm |
Tool Change |
Manual Tool-Change |
Drive System (X & Y Axes) |
Helical Rack & Pinion |
Drive System (Z Axis) |
Taiwan ball screw |
Drive Motors |
Stepper Motors |
Inverter |
FULING |
Driver |
Leadshin Driver |
Command |
G code |
Cutter diameter |
φ3.175-φ12.7mm |
Maximum Travel Speed |
35m/min |
Table Top |
vacuum table tops with absorption function |
Vacuum pump |
5.5kw water cooled |
Controller |
DSP handle |
Power Requirements |
3-phase 380V/50HZ, 220V optional |
Application:
Application Industries:
Wood processing: processing of various furniture such as door, window, cabinet, craft wood door, screen and so on.
Advertisement: engraving and cutting various labels and number plate.
Art craft: engraving characters of any languages and graphics on souvenirs.
Applicable materials:
Wood, aluminium board, plastic, density board, wave board, PVC, acrylic,crystal, light marble and other nonmetal materials ect...
Prccessing effect:
It can manufacture the following effects: relief, shadow, enchasement and so on.
Hot sale machines
|
|
|
| Advertising cnc router | Economic cnc router | Carousel atc cnc router |
|
|
|
| Linear atc cnc router | Multi spindle cnc router | 4 axis cnc router |
If you are interested in our products
Click here to send us the message
We have someone who tell you solutions Products!
Packaging and shipping:
Packaging : 1.Outside package:Standard marine export plywood cases
2.Inner package:Stretch film and plastic film for humidity
Shipping: Maritime transport,air transport,land transport and the logistics transport
FAQ:
Q1: Are you factory or trading company?
We are manufacturer of cnc routers with 14 years experiences, have three workshops and over 18,000 square meters,180 employees
(including 55 technical personnel), more than 60 sets processing equipments.
Q2: How can I get the best machine ?
Just tell me your requirements on the machine, we will provide the best suitable product for you.
Aslo, we have desinger team to meet any of your requirements.
Q3: This is the first time I use this kind of machine, is it easy to operate?
The Operation Manual will be send to you with the machine, it's in details, if you still confused,
we can provide training or specialized teaching video for you.
Q4: If the machine has problem in my place, how could I do?
We offer remote assistance in 24 hours, ensure that solve your problem in time. or change
damage parts for free during warranty.
Factory Show:
Welcome to visit our factory!
Inquiry us now for 20% discount!
