dvb-t2 to ts ip udp decoder (DVB-T/T2+ASI+IP in,2*CI,AV+HDMI+SDI(1080i/720p/576i)+YPbPr+IP+ASI out)
in:asi ts dvb-t/t2
out:asi ts,hdmi,sdi,av
mpeg-4/h264
DVB-S/S2(DVB-C/QAM)(DVB-T/T2) SD/HD Decoder with CI
Overview
SD/HD decoder with CI slot has 1×DVB-S/S2(DVB-C/QAM)(DVB-T/T2) RF and 1×ASI input interfaces and supports MPEG4 AVC/H.264 and MPEG2 video encoding. The input DVB-S(DVB-C/QAM)(DVB-T/T2) signal will be demodulated to TS stream and output by ASI, SDI, HDMI or IP interface. It has 2 CI slots, supporting 2 CAM cards. It’s one of the main digital head-end equipments for receiving and encrypted satellite programs.
Technical Specification
Input |
Model 5301 |
RF, F-head 75Ω;DVB-S/S2:950-2150MHz; |
Model 5302 |
RF, F-head 75Ω; DVB-C/QAM:47-870MHZ; |
|
Model 5311 |
RF, F-head 75Ω; DVB-T/T2:36-900MHZ; |
|
ASI |
DVB standard,BNC interface |
|
IP |
100mbps RJ45 port, TS over UDP,Multicast/Unicast |
|
CI |
2*CI slots(don’t support BISS-1,BISS-E) |
|
Search |
Manual search base on frequency |
|
Output |
ASI |
2×ASI(1 as mirror),DVB standard,BNC interface |
SDI |
DVB standard,BNC interface,only support 1920*1080*50i,1280*720*50p and 720*576i |
|
HDMI |
1×HDMI 1.3 |
|
IP |
100mbps RJ45,TS over IP/UDP |
|
AV |
CVBS/Audio,RCA interface; |
|
YPbPr |
BNC interface |
|
|
Video Decoding |
Decode |
SD: MPEG-2 SD 4:2:0 MP at ML |
SD: MPEG-4 AVC SD MP at L4 | ||
HD: MPEG-4 AVC HD MP at L5.0/HP at 5.0 | ||
Format |
PAL(720*576)/ NTSC(720*480) |
|
|
Audio Decoding |
Decode |
MPEG-1 layer2/MP3 |
Dolby Digital (AC-3); Dolby Digital Plus (E-AC-3) | ||
MPEG-4 AAC /AAC Plus (HE-AAC v1/2) | ||
Mode |
Mono, Dual, Stereo channel |
|
Control |
|
1>front panel; 2>NMS by IP; 3>upgrading by IP; |
|
General Features |
Size |
482mm×240mm×44mm |
Temperature |
0~45°C (Operation); -20~80°C (Storage) |
|
Power |
100-240VAC, 50Hz, 25W |
|
Don’t support 4:2:2;biss;FEC;AES/EBU; | ||
Order Guide
| 5301 | DVB-S/S2 HD Decoder(DVB-S/S2+ASI+IP+2*CI in,AV+HDMI+SDI(1080i/720p/576i)+YPbPr+IP+ASI out) |
| 5311 | DVB-T/T2 HD Decoder(DVB-T/T2+ASI+IP+2*CI in,,AV+HDMI+SDI(1080i/720p/576i)+YPbPr+IP+ASI out) |
| 5302 | DVB-C HD Decoder(DVB-C+ASI+IP+2*CI in,AV+HDMI+SDI(1080i/720p/576i)+YPbPr+IP+ASI out) |
Network software Setting

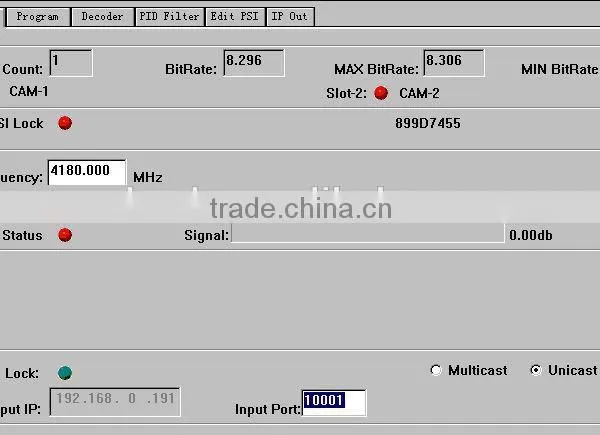

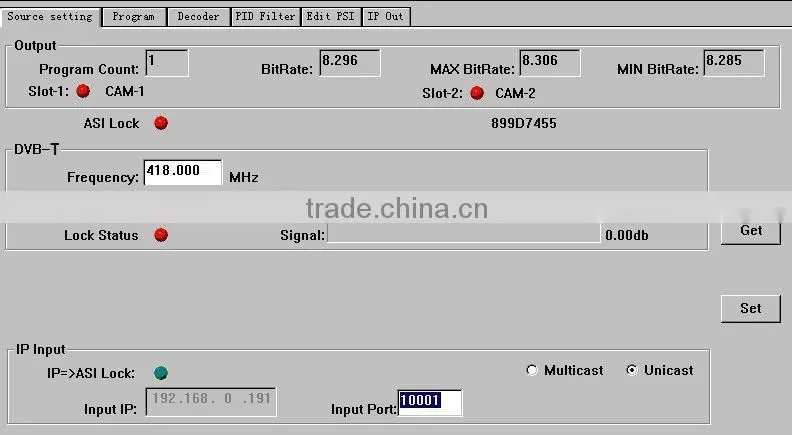

dvb-t/t2/ip input setting:

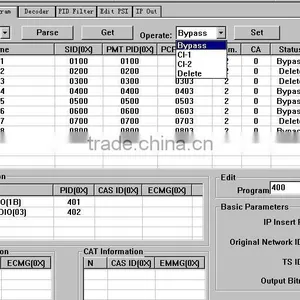

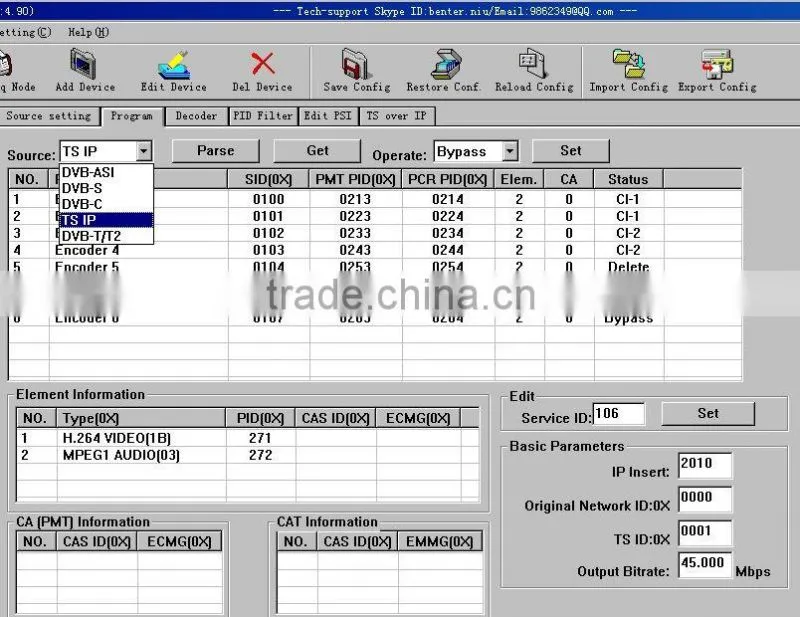

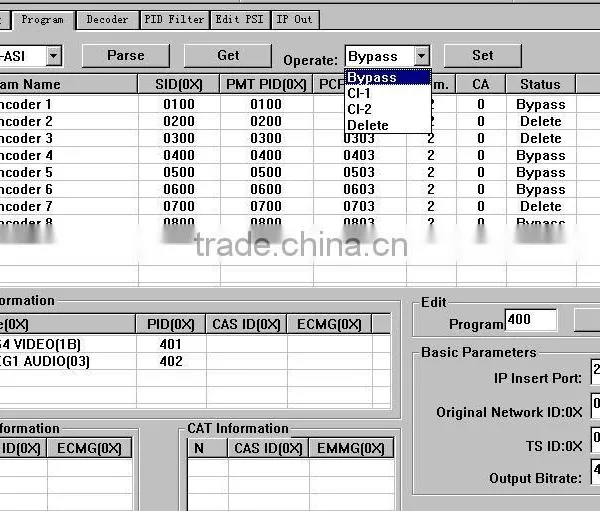

Program setting:

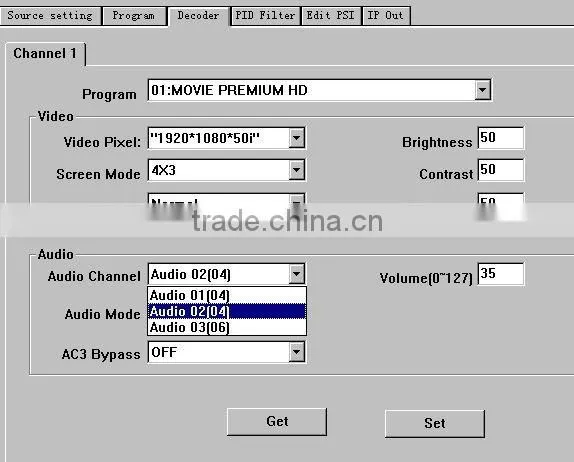

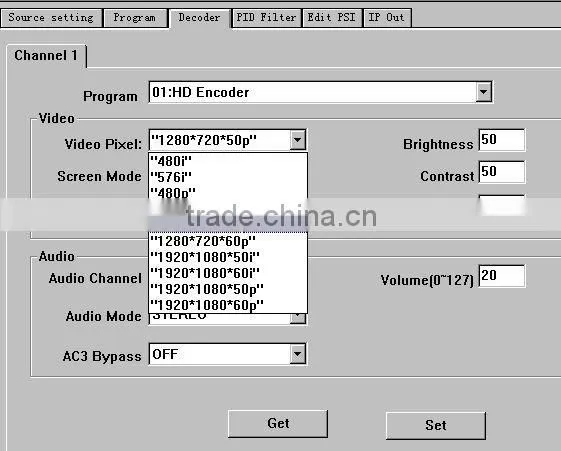

decoder setting:

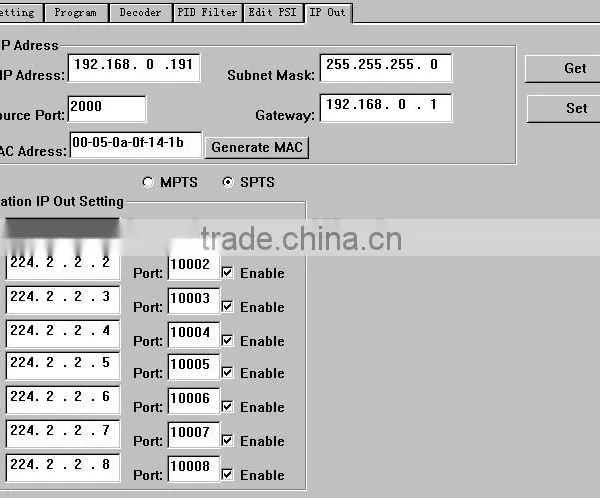

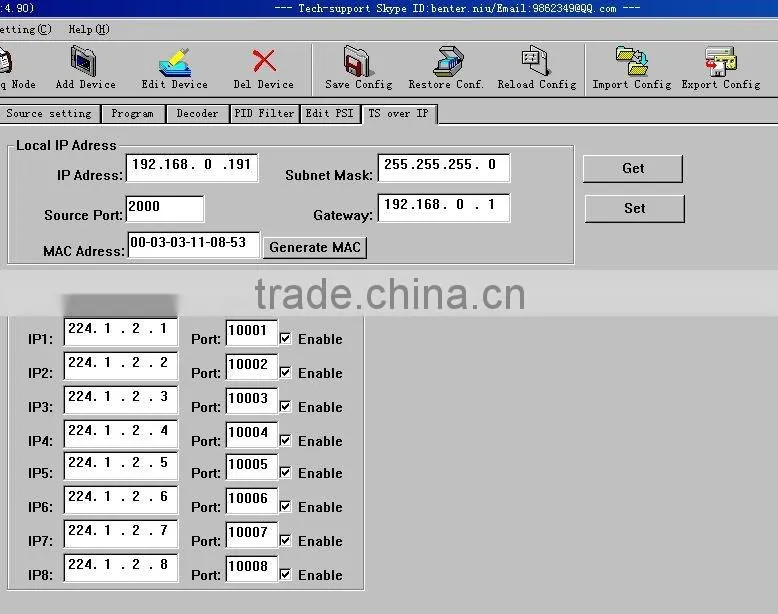

TS over UDP output setting:

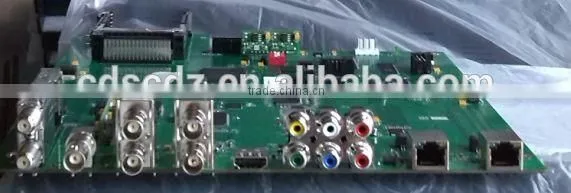

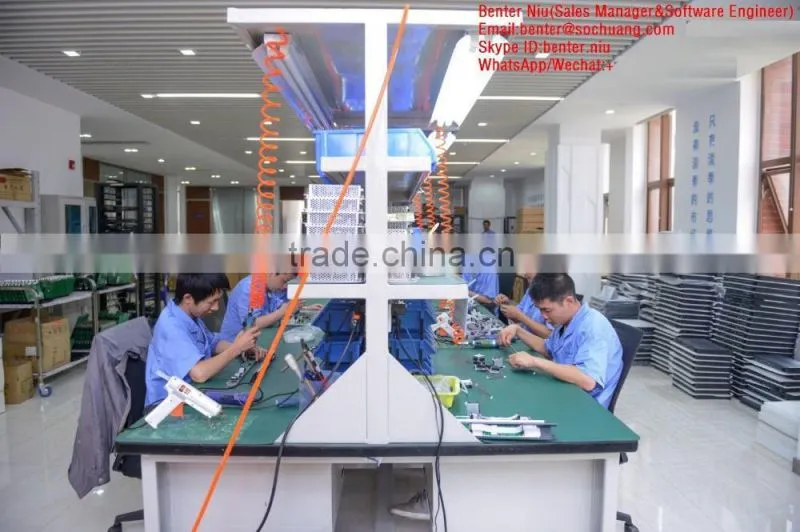

Assembling :

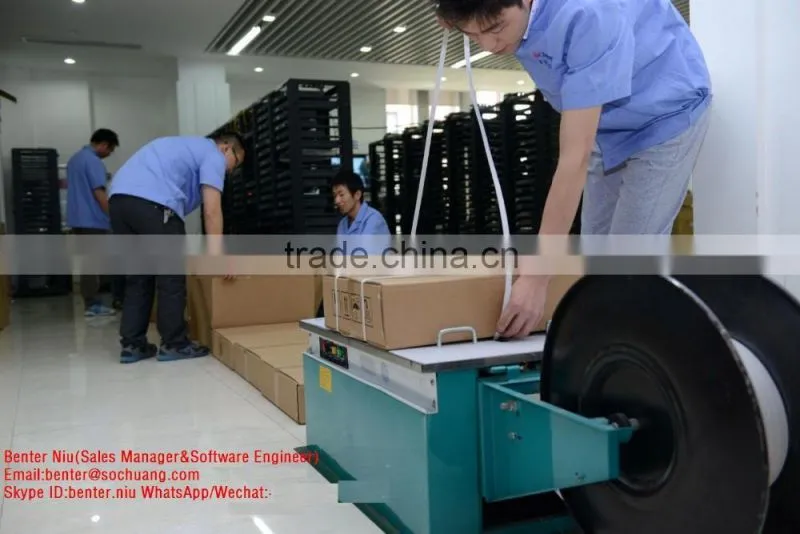

Packing:

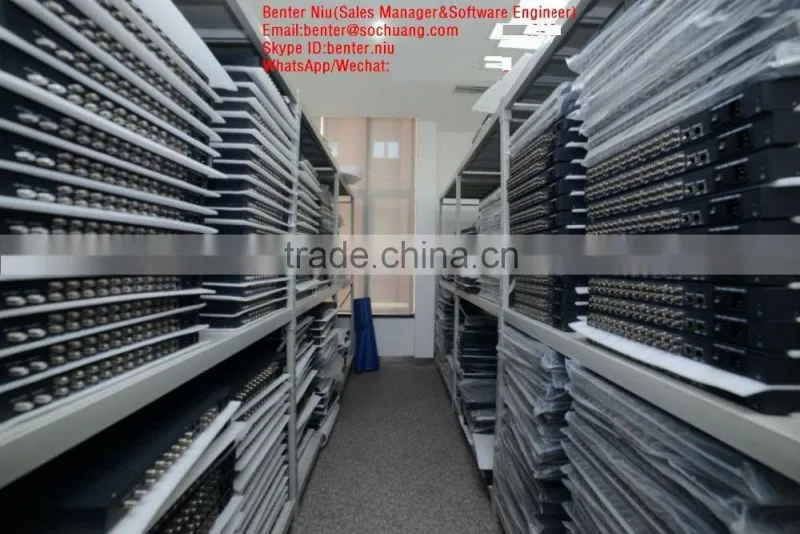

Stocking:

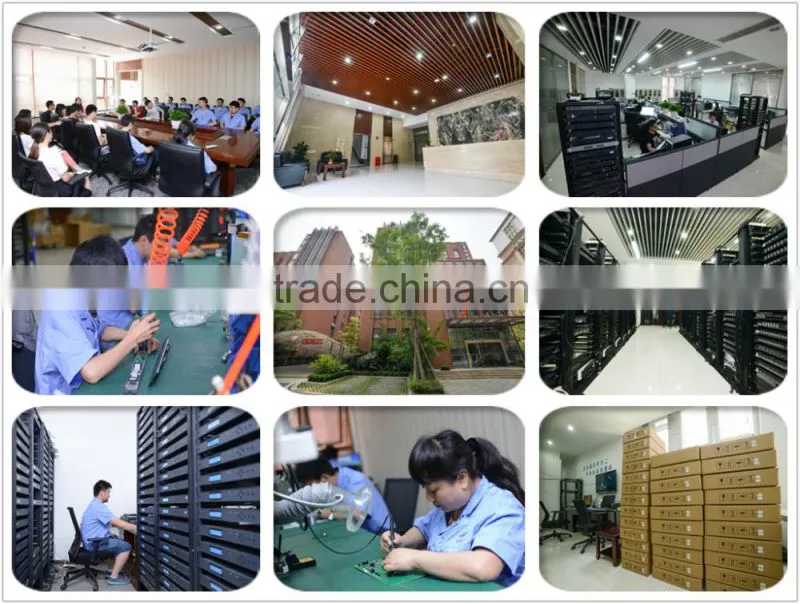

Company information:
Certificate&Exhibition:
