Home > Products > CNC Router--Wood cnc router > Reseller Wanted Cnc Milling Machine
Reseller Wanted Cnc Milling Machine
- tianjin
- T/T Credit Card
You May Like
-
Perennial Professional to Provide Wood/stone/metal/glass Cutting Machinery
-
Double Heads, Work Efficent Mould Plastic Cutting Machine
-
Mulit-head,1825 Large Size for Stone Cnc Router
-
1325 Woodworking Cnc Router Cnc Wood Drilling Machine
-
High Precision China Professional Wood Cnc Balsa Wood Cutting Machine
-
1325 Cnc Router for Woodworking Cnc Machine Wood Price
Product Details
| Condition | New | CNC or Not | CNC | |
| Place of Origin | Shandong, China | Brand Name | senke | |
| Model Number | SKW-1325 | Voltage | 220v/880v | |
| Power(W) | 2.0-5.0KW (According to the model) | Dimension(L*W*H) | 1300*2500mm | |
| Certification | CE,FORMA,FTA | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
cnc milling machine1.CO/FROM A/FROM E avaliable
2.agency wanted
3.OEM/ODM
cnc milling machine
Features:
1 Integrally cast lathe bed, firm and non-deforming, high rigidity and high accuracy, good performance and durability.
2 Unique multi-spindle design, quantity of machine heads and power of spindle can be selected according to the customer's requirements. The distance between spindles can be freely adjusted according to the work piece being processed.
3 One machine can complete the workload of several machines at the same time, saving production time and cost, enhancing the working efficiency
Technical parameter :
Discription | Parameter | |||
SKW-1325 | SKW-1525 | SKW-2040 | Option | |
Working Area (X*Y*Zmm) | 1300*2500*300mm | 1500*2500*300mm | 2000*4000*300mm | Sizes customized |
Body structure | welding | |||
X, Y Structure | Miko rack and pinion drive | |||
Z Structure | Germany ballscrew | |||
X, Y Resolution | <0.01mm | |||
Max Moving Speed | 35000mm/min | |||
Max Engraving Speed | 18000mm/min | |||
XYZ traveling positioning accuracy | ±0.03/300mm | |||
XYZ repositioning accuracy | ±0.03mm | |||
Spindle power | 2.2KW/3.0KW//4.5KW/7KW(can be choices) | |||
Spindle Speed | 0-24,000rpmrpm | |||
Table style | Double use vacuum table | |||
Dust collection | yes | |||
Voltage | 380V/50Hz/60HZ | |||
Drive type | Stepper/Option:servo | |||
Working Dictate | G Code | |||
Operating system | DSP System/option syntec or LNC | |||
Interface | USB | |||
Flash memory | 128M(U Disk) | |||
Running Environment | Temperature: 0°C~45°C | |||
Parts:

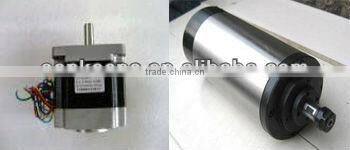

motor and spindle

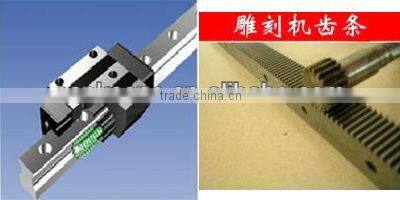

gear rack and square rail

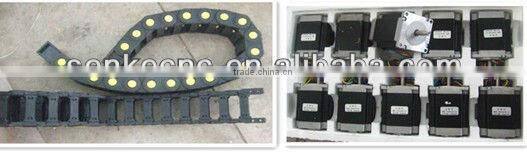

other parts
package and tranport:
we other machine
Application
1. Furniture: plate, office furniture, doors, cabinets.
2. Wood products: speakers, games cabinets, computer tables, sewing machines, musical instruments.
3. Board processing: insulation, plastic chemical components, PCB, car body, bowling track, ABS, PP, PE, etc.
4. Decoration: Acrylic, PVC, MDF, glass, plastic and soft metals such as copper and aluminum.
samples:
other samples
After sale-service
Contact Us
- Jinan Senke CNC Machine Co., Ltd.
- Contact namesenkecnc wang Chat Now
- Phone86-531-88099059
- AddressSouth Of Liugudian Village, Hehua Road Street, Licheng District
