Place of Origin Sichuan, China
Brand Name SoChuang
Model Number SC5417

4in1 DVB-T IP TS UDP MPTS IRD(4 DVB-C RF in,4*CI,4 ASI+IP 4*MPTS*multicast out)

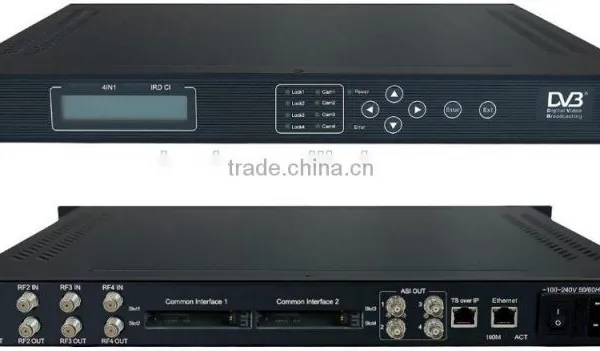

DVB-T/T2 4in1 ASI/IP IRD with CI

4in1 DVB-T IP TS UDP MPTS IRD(4 DVB-C RF in,4*CI,4 ASI+IP 4*MPTS*multicast out)

Overview

DVB-T/T2 4in1 IRD with CI supports 4xDVB-T/T2 RF input. It has 4×CI interfaces and supports multi-type of CAM cards. It can output 4×ASI and IP (TS over UDP). It suits 1U rack and provides front panel LCD operation and NMS (Network Management Software) controlling.

Technical Specification

Input

RF

4xDVB-T/T2(30-900MHz),F-head

Output

4×ASI

DVB standard, 4xBNC interface

IP(5417)

32*SPTS,7xTS,TS over UDP,

1000M/gigabit IP port;

8*SPTS per Tuner;

IP(5419)

4*MPTS,7xTS,TS over UDP,

1000M/gigabit IP port;

1*MPTS per Tuner;

CAM

1*CAM per 1*Tuner

CAM1 work with RF1…….

CAM4 work with RF4

Control

IP remote

NMS (Ethernet Port, RJ-45),

10/100m base-TX,

Front panel

Keyboard + LCD

General Features

Size

482mm×410mm×44mm

Temperature

0~45°C (Operation); -20~80°C (Storage)

Power

100-240VAC, 50Hz, 25W

Order Guide

5417

4×RF/DVB-T/T2, 4*ASI +IP 4*MPTS out


5419

4×RF/DVB-T/T2, 4*ASI +IP 32*SPTS out

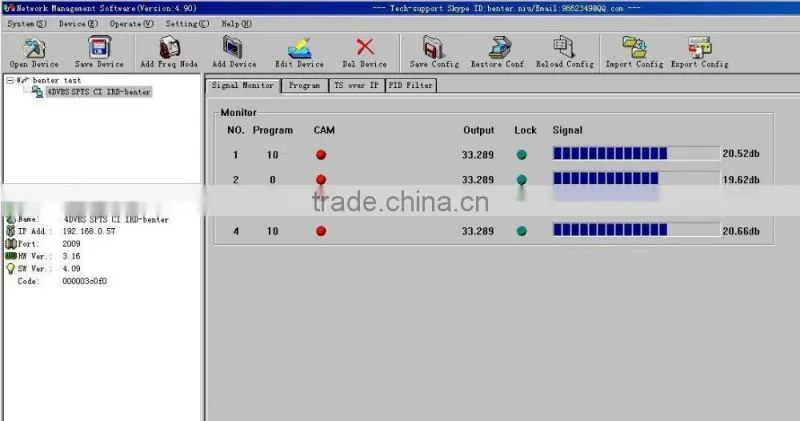

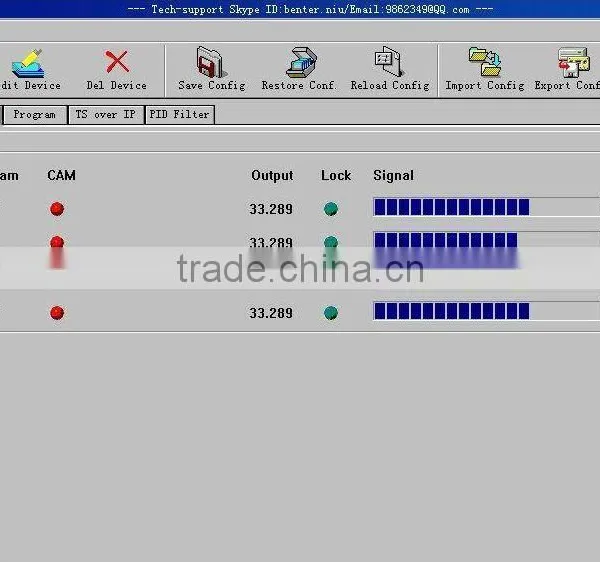

Network Management Software



DVB-T/T2 frequency input:

4in1 DVB-T IP TS UDP MPTS IRD(4 DVB-C RF in,4*CI,4 ASI+IP 4*MPTS*multicast out)

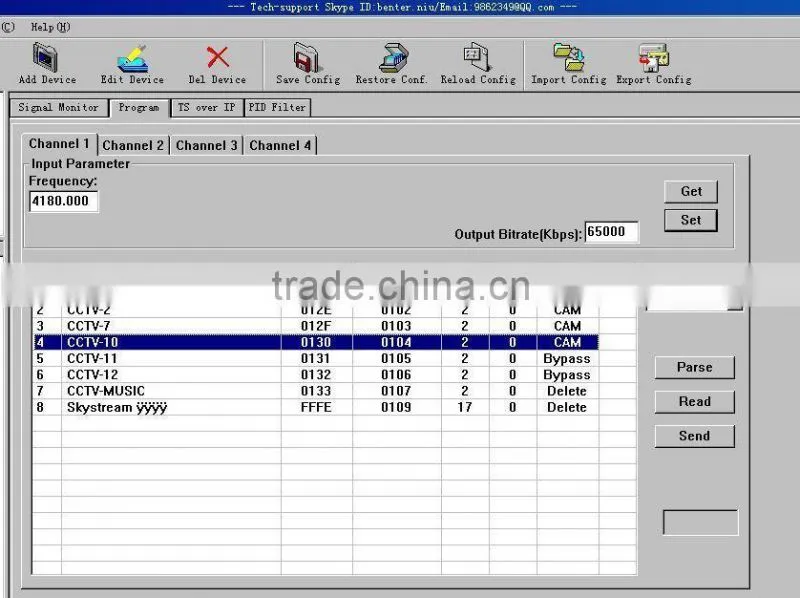

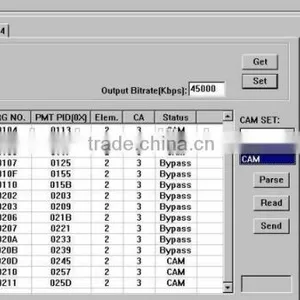

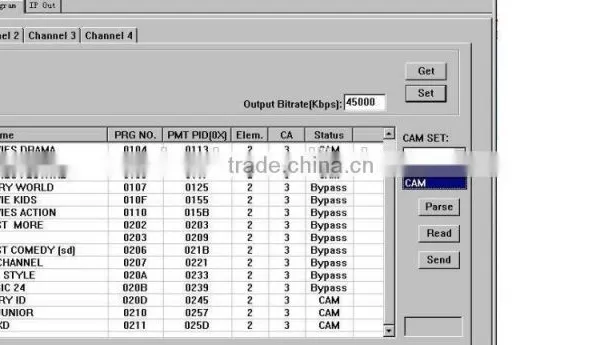

channels output setting:

4in1 DVB-T IP TS UDP MPTS IRD(4 DVB-C RF in,4*CI,4 ASI+IP 4*MPTS*multicast out)

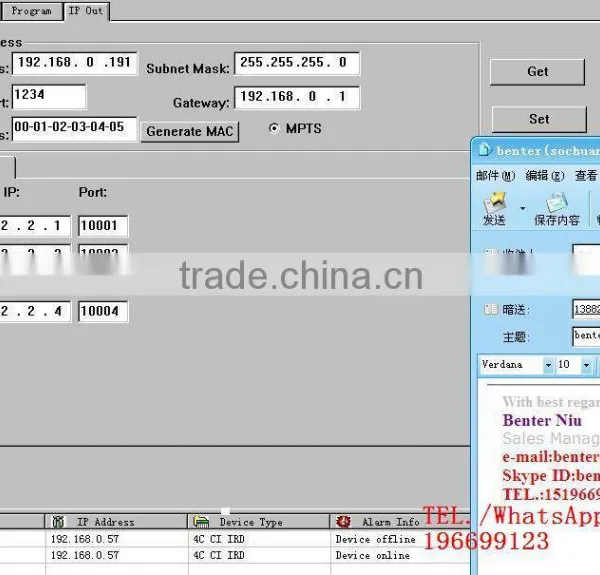

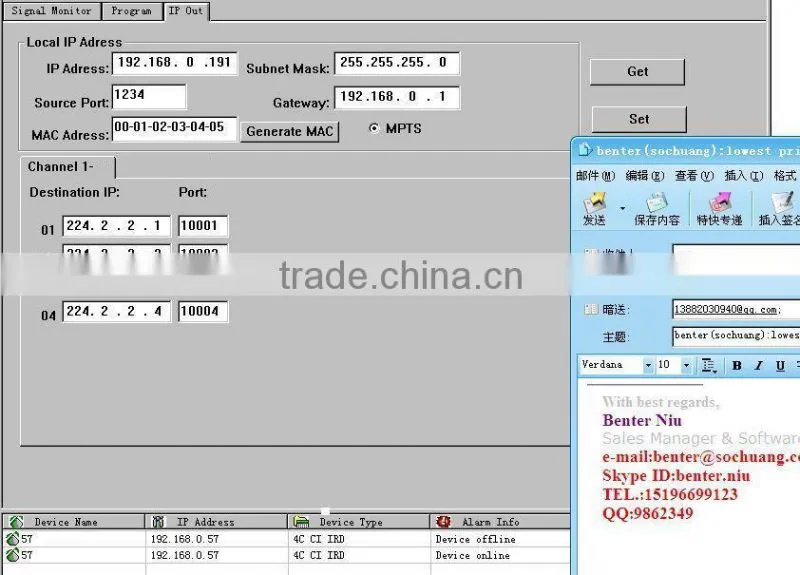

TS over IP output setting:

4in1 DVB-T IP TS UDP MPTS IRD(4 DVB-C RF in,4*CI,4 ASI+IP 4*MPTS*multicast out)

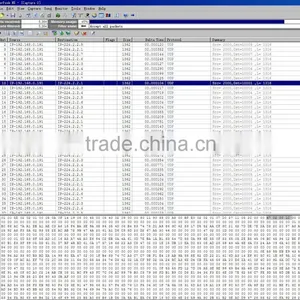

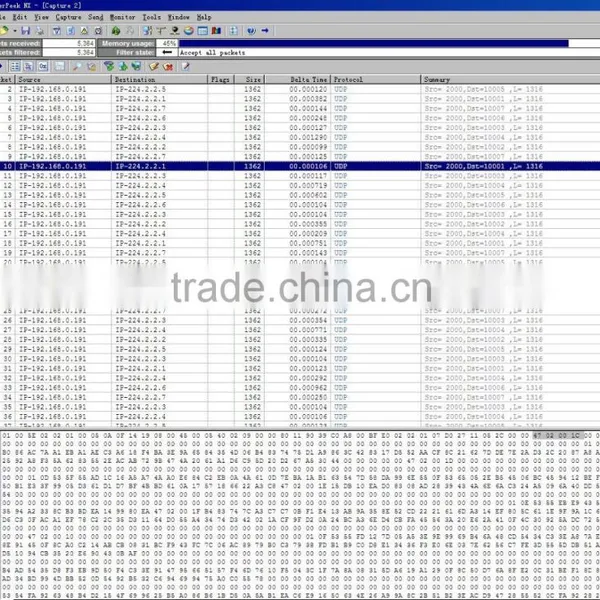

TS over UDP:

4in1 DVB-T IP TS UDP MPTS IRD(4 DVB-C RF in,4*CI,4 ASI+IP 4*MPTS*multicast out)

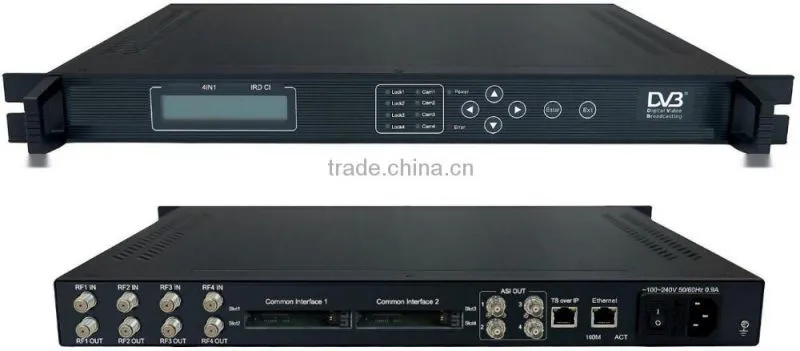

Assembling :

4in1 DVB-T IP TS UDP MPTS IRD(4 DVB-C RF in,4*CI,4 ASI+IP 4*MPTS*multicast out)



  Packing:



4in1 DVB-T IP TS UDP MPTS IRD(4 DVB-C RF in,4*CI,4 ASI+IP 4*MPTS*multicast out)





Stocking:

4in1 DVB-T IP TS UDP MPTS IRD(4 DVB-C RF in,4*CI,4 ASI+IP 4*MPTS*multicast out)





Company information:                                                   4in1 DVB-T IP TS UDP MPTS IRD(4 DVB-C RF in,4*CI,4 ASI+IP 4*MPTS*multicast out)



 4in1 DVB-T IP TS UDP MPTS IRD(4 DVB-C RF in,4*CI,4 ASI+IP 4*MPTS*multicast out)





Certificate&Exhibition:

4in1 DVB-T IP TS UDP MPTS IRD(4 DVB-C RF in,4*CI,4 ASI+IP 4*MPTS*multicast out)



 4in1 DVB-T IP TS UDP MPTS IRD(4 DVB-C RF in,4*CI,4 ASI+IP 4*MPTS*multicast out)
