asi scrambler
Overview:
TS Stand alone simulcrypt scrambler aims to DVB simulcrypt scrambling on input transport streams, embedded control
generator,can send fixed or variable control word scrambling focus on transport stream; scrambling machine inside
synchronouscontroller send control word and access conditions and exchange information with ECMG. Co-ordination with
the CAsystems, through the rational control of scrambling cycles (CP), scrambling machine aims to facilitate the proper
decoderto decrypt control word, descrambling transport stream. Scrambling machine is a highly integrated device, which
is mainlyused in digital television scrambling.
Features:
u 8 Mbytes caches, anti-burst stream;
u 63 sets of programs can be scrambled, each program supports 32 elements;
u 2 channel inputs, real-time hot backup;
u Support EPG data insertion;
u Commonly Used DVB Scrambling system description ETR289, Commonly used Scrambling System
description;
u DVB scramble on specified program or basic transport stream;
u Meet the DVB Commonly Used Scrambling Algorithm, support simulcrypt model, compatible with
multiple conditional access (CA) system;
u Provide a comprehensive analysis of MPEG stream function;
u Provide TS stream PSI / SI information re-processing functions;
u Provide input and output ASI transport stream channel protection;
u Provide input and output ASI ode stream channel protection;
u Support r remote real-time monitoring of transport streams;
u Support automatically switching on input backup function;
u Package format: automatically adapt to 188/204 package format;
u Through the network system for status monitoring;
u PCR correction.
Technical Specification:
Input |
DVB/ASI |
2 ASI in |
|
Output |
DVB/ASI |
2 ASI out |
|
Output bit rate |
1-60Mbps |
||
CAS/SMS |
Support 4 CAS/SMS |
||
Multiplexer |
Delete/change programs |
||
Management |
Network RJ-45 10/100M base-T TX |
||
Keyboard, LCD | |||
General Features |
Size |
40mm*484mm*240mm |
|
Environment |
0-45(Operating);-20~80 (Storage) |
||
Power |
220VAC(-+10%),50Hz,25W |
||

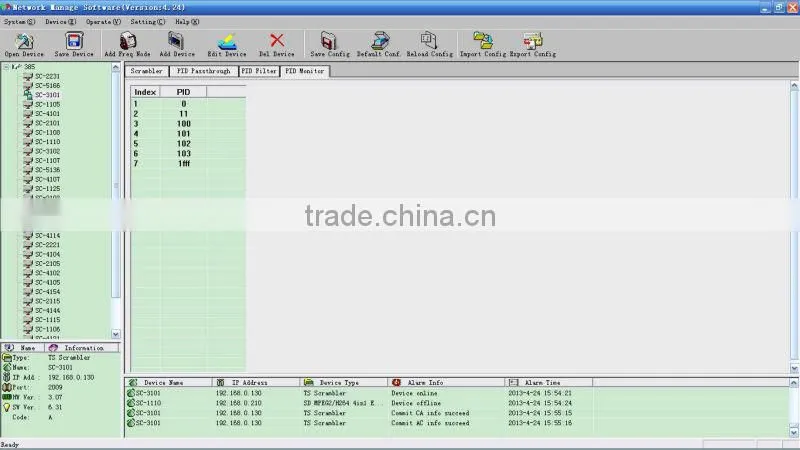

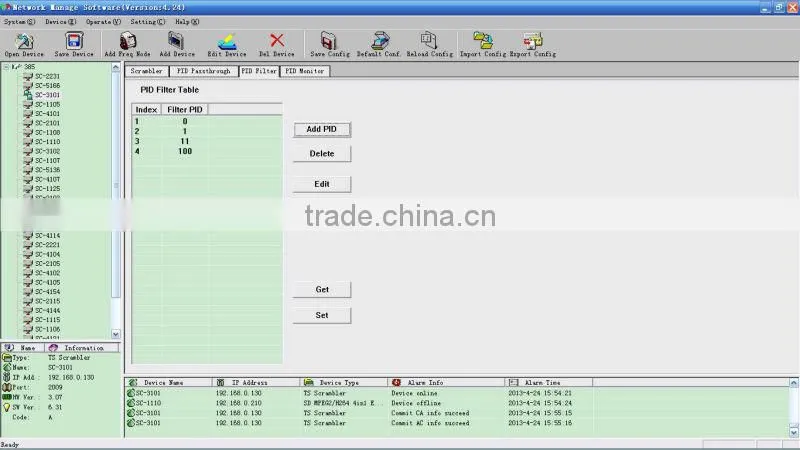

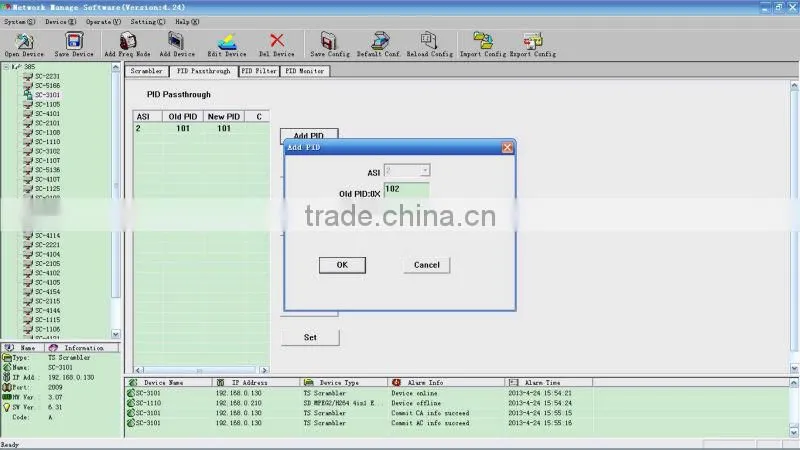

Network Management:

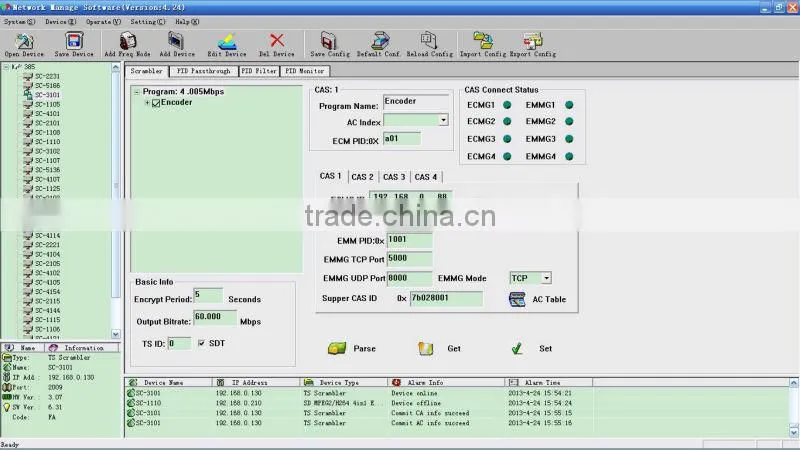

P1: stand alone scrambler-config
P2:stand alone scrambler-AC config
l Free pre-sales and after-sales technical support
l 3 years warrantly
l Remote online support and training
l Hardware/Software upgrade support
