4 Channels Mux Scrambler/ 4 Channel IP-ASI Gateway

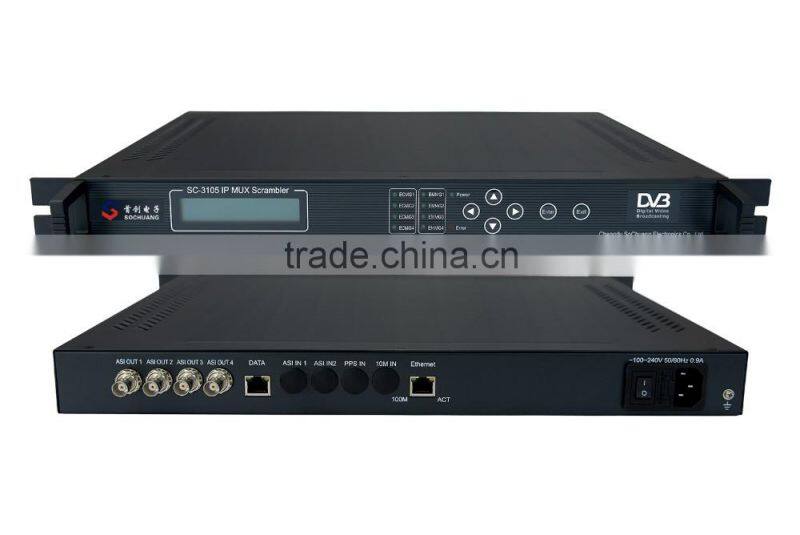

Name: 4 Channels Mux Scrambler/ 4 Channel IP-ASI Gateway
Brand: Sochuang
SKU: 116109303
Availability: InStock

US$ 1 - 1,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Sichuan, China

Brand Name:

Sochuang

Model Number:

SC-3105

Chengdu Sochuang Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Chengdu

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Sichuan, China

Brand Name Sochuang

Model Number SC-3105

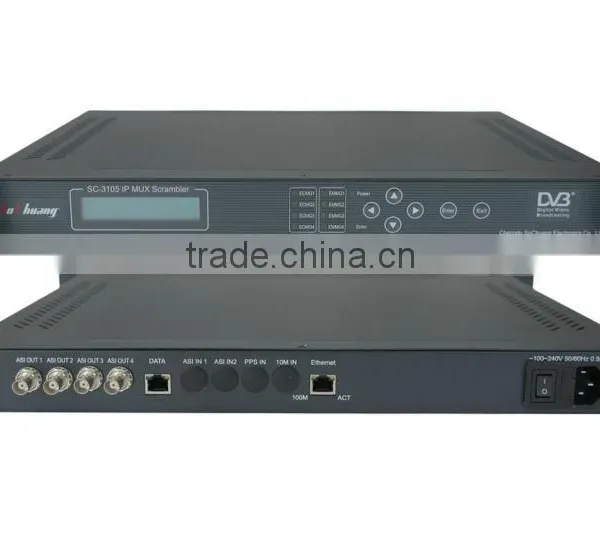

4 ASI Output IP MUX Scrambler

Overview

4in1 IP MUX-Scrambler is a cost effective integrated IP multiplexer and Scrambler .It is designed by SoChuang Company.

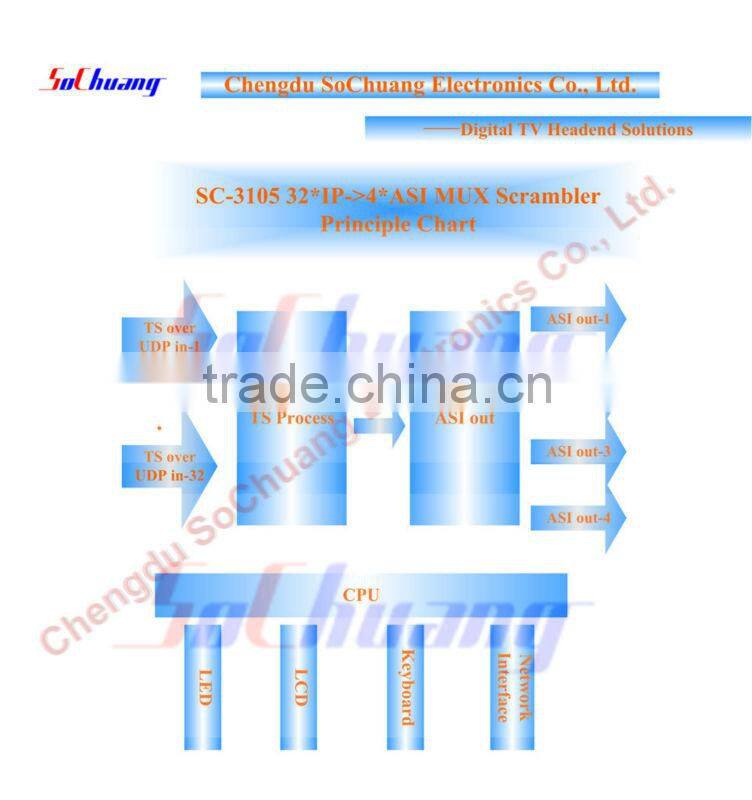

This device support 64 IP input. And IP signal has been sent to signal processor after synchronized process. After

multiplex and Scramble of the signal processor, then 4*2 ASI output directly. It supports 64 channel IP inputs. Hence

,one peice 4 in 1 IP MUX-Scrambler can work as 4 stand alone scrambler, significantly reducing the network operators’

head-end cost. Also it can support local and remote control to set its working parameters.

Features

u Meet DVB standard channel coding;

u 8M cache, anti-burst stream;

u Meet the DVB Commonly Used Scrambling Algorithm, support simulcrypt model, compatible with multiple

conditional access (CA) system

u Configurable PID filter, re-mapping, PSI, SI information synchronization update;

u Support NIT table inserts;

u Through the network system for status monitoring;

u Support rate adaptive, PCR re-adjustment function and re-marking function;

u Package format: automatically adapt to 188/204 package format;

u Local and remote control;

u LCD display in Chinese and English, easy and flexible to operate;

u High reliability design, stable operation;

Technical Specifications

Input		IP in	1000mbps ip port(64 ip in)
Output		DVB/ASI	4 Channels, BNC port
Multiplexer			From 64 IP in
Scrambler			Support 4 CAS/SMS ; Head-end implementation of DVB SimulCrypt (ETSI TS 103 197 V1.4.1)
General Features	Size		44mm280410mm
	Environment		0 ~ 45(Operating); -20 ~ 80(Storage)
	Power		100-240VAC(-+10%), 50Hz, 25W
Management			Network RJ-45 10/100 M
			Keypad+ LCD
