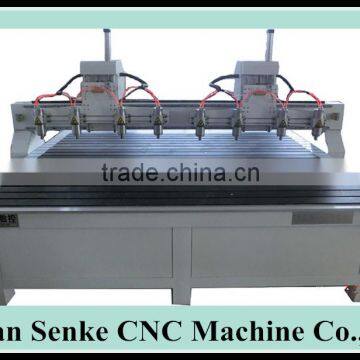

1325 Multi-head CNC Woodwoking Machine Cnc Router Machine 3dUS$ 2,010 - 8,700MOQ: 1 Set
-
Jinan Woodwoking Cnc Gantry Milling Cnc Machine Wood PriceUS$ 2,010 - 8,700MOQ: 1 Set
-
Woodworking Engraving Machine, 4 Axis Cnc Router Rotary China Cnc Wood MachineUS$ 2,010 - 8,700MOQ: 1 Set
-
Seek Agent 1325 3Axis CNC Engraver/Router Woodwoking Machine Cnc Machine WorkUS$ 2,010 - 8,700MOQ: 1 Set

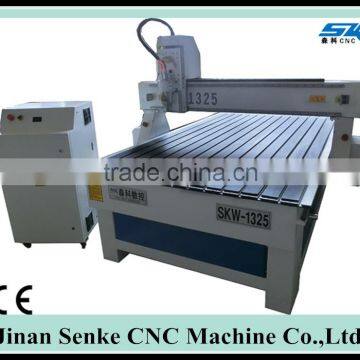

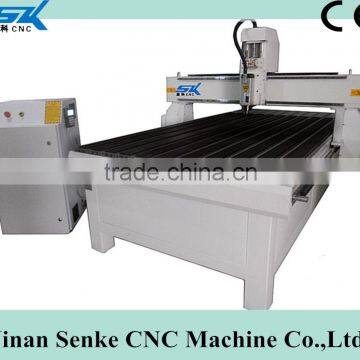

cnc router wood furniture making / wood cnc machinery
Features:
1.Imported italy 9.0kw HSD aircooling spindle, high accuracy, long service time, steady movement and good starting performance, great torque, fulfilling the advantage of working with fast speed and low noise.
2. Welded structure by thick profiled steel stabilized under high temperature, ensures
minimum distortion, excellent rigidity and powerful strength
3. Imported control system, separated keyboard control, color LCD display add machine
more versatility.4. Auto lubricating system, one touch can finish periodic maintenance easily
Technical parameters:
Discription |
Parameter |
|||
SKW-1325 |
SKW-1530 |
SKW-2040 |
Option |
|
Working Area (X*Y*Zmm) |
1300*2500*230mm |
1500*3000*230mm |
2000*4000*230mm |
Sizes customized |
Body structure |
Steel tube/ T-Steel tube |
|||
X, Y Structure |
rack and pinion drive |
|||
Z Structure |
Ball Screw,linear bearing |
|||
ATC style |
In Linear |
|||
Control system |
Syntec/option LNC |
|||
Spindle |
9.0kw italy HSD aircooling |
|||
Table style |
Vacuum table |
|||
Dust collection |
yes |
|||
Motors |
Imported japan servo motors |
|||
X, Y Resolution |
<0.01mm |
|||
Max Moving Speed |
32000mm/min |
|||
Max Engraving Speed |
20000mm/min |
|||
XYZ traveling positioning accuracy |
0.03/300mm |
|||
XYZ repositioning accuracy |
0.03mm |
|||
Spindle Speed |
0-24,000rpmrpm |
|||
Voltage |
AC220V/50Hz |
|||
Working Dictate |
G Code ,HPGL |
|||
Interface |
USB |
|||
Flash memory |
128M(U Disk) |
|||
Software Compatability |
Type3/Ucancam Artcam |
|||
Running Enviroment |
Temperature: 045 |
|||
Applicable industrial:
Wood industry,it is a professional wood door making and furniture making machine.
Advertising industry,breastplate,doorplate
Applicable materials:
Wood,organic glass,PVC board,KT board,Acryl ,etc
Guarantee & After Sales Service:
1.Two years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge when problems happened during the warranty period.
2.Free training course at our plant.
3.24 hours on line service (MSN,Skype,Email ) every day, free technical support.
4.Machine has been adjusted before delivery , operation disk was included
What do we do for customer
Firstly, it is better for you to tell us your budget, your carving demand details as followings:
1) what is your materials name
2) what is your materials size or dimension
3) what do you want to do on your materials
Secondly, It is better to send us your materials (If materials is special) or We will make an effort to look for materials same as yours, Then we do a sample and test for you. Pictures or videos taken for your reference after that.
Thirdly, our team will supply best professional solutions, then quote you with suitable configurations and reasonable price. Machine color is up to you!
Professional production, quality assurance, affordable, welcome to inquire, all factory direct sales, look forward to building cooperate with you wholeheartedly!
