CNC wood router machine with drilling units for furniture cabinet vertical drilling

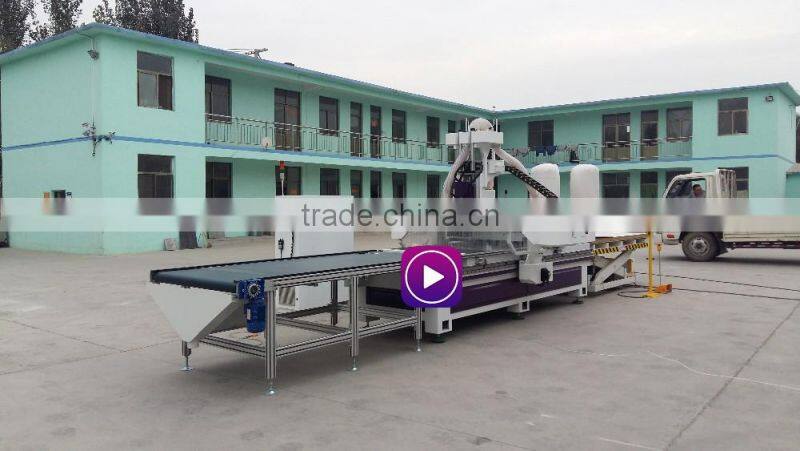

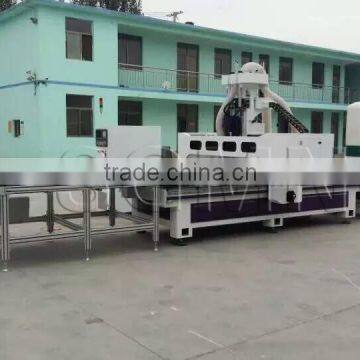

The furniture production line auto loading cnc wood carving machine SG-1325 for furniture production line widely used in home decoration, shop and office furniture.

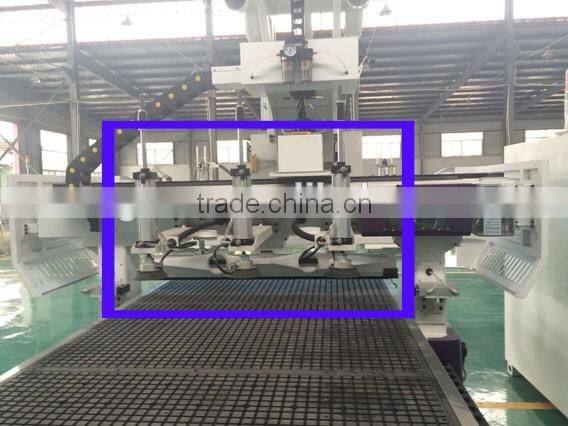

With fast material automatic nesting, loading and unloading,multi-function drilling with vertical, side, single and group drilling, etc
Main Features
1)Perfect Function,automatic feeding,drilling,slot,cutting,automatic unloading in one step.
2)Saving time and labor,materials,replace traditional CAD draftsmen,splitting worker,cutting worker,only need 8 minutes to input size and design and split.Automatic layout optimization,improve material utilization.
High quantity,automatic design,automatic typesetting,no human intervention.
minimizing error rate to minimum,ensure the quality of the order.

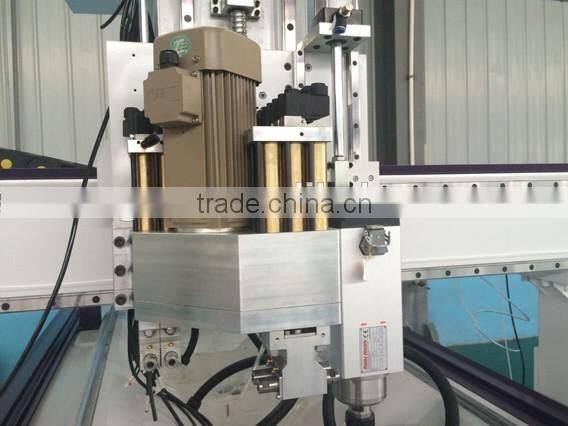

3)9.0KW Italy HSD spindle and boring head with High quality and long life, good after sale service
4)High efficiency:advanced automatic tool change program,without human intervention,program automatically.

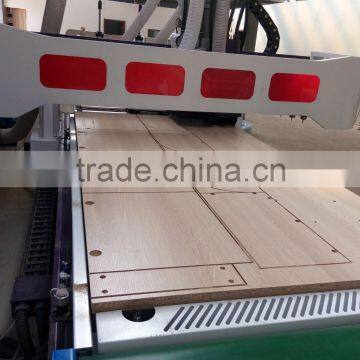

5)Strong two layers vacuum table with 1325 vacuum holes to suck tightly of the work piece,24 partition design,strong adsorption materials of different area,greatly improve the work efficiency.
Technical Parameter:
Model |
SG-1325XC3 |
Working Area (X,Y,Z Axis) |
1300*2500*200mm |
spindle |
Italy Protec air cooling spindles |
drilling head |
9kw HSD |
software |
KD Cabinet design software (optional) |
spindle speed |
Adjustable 0-18,000 rpm |
optional: tool changer |
Auto Tool-Change |
Working accuracy |
±0.02 |
Maximum Travel |
60m/min |
Speed Inverter |
FULING/delta |
Drive System (X & Y Axis) |
Rack and pinion transmission,Taiwan CSK square Guide rail |
Drive System (Z Axis) |
Taiwan TBI rolling ball screw,Taiwan CSK square guide rail |
Electrical parts |
Schneider |
Motor and Driver |
Japan Yaskawa Servo Motor and Drive |
Working table |
Vacuum table |
Vacuum pump |
7.5kw Water cooling |
Lubrication Systems |
Automatic oiling system |
Control system |
Taiwan Syntec control system |
Power Requirements |
AC380V/50HZ-3 Phase (Optional:220V) |
Command |
G code (HPGL,U00,mmg,plt) |

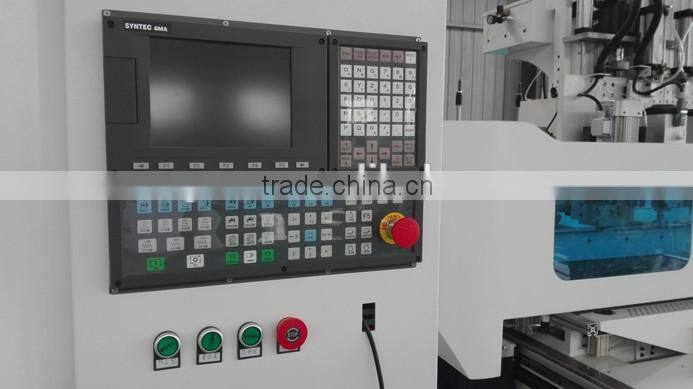

1.Syntec controller system
2. 9.0KW Italy spindle and boring head with High quality and long life, good after sale service
3. Vacuum chuck to load materials

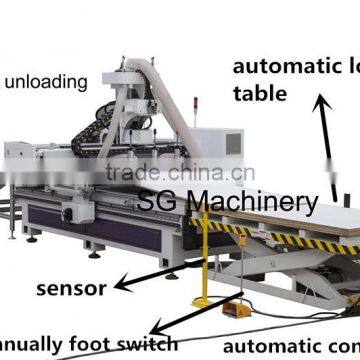

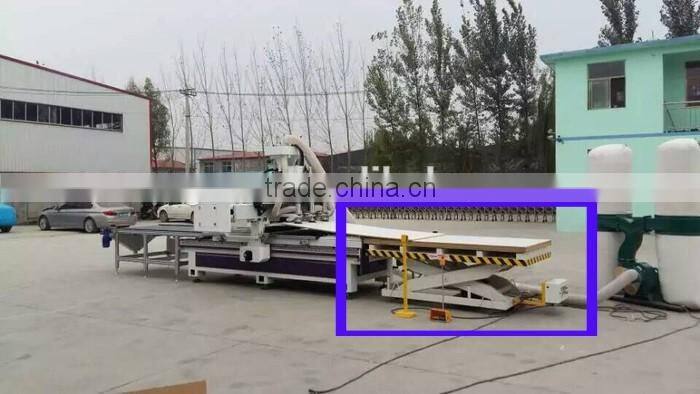

4. Auto loading table with auto up and down pump

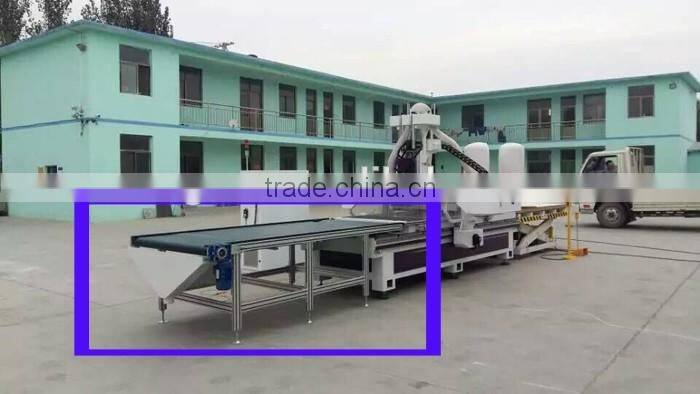

5. Auto unloading table
Application
1. Furniture: wooden door and furniture, windows, tables and chairs,cabinets and panels, 3D wave plate,MDF,computer desk,musical instruments,etc
2. Advertising: billboard, logo,sign,3D characters cutting,acrylic cutting,LED/neon channel,literal-hole cut,light-box mold,stamp,mound,etc
3. Board processing: insulation, plastic chemical components, PCB, car body, bowling track, ABS, PP, PE, etc.
4. Decoration: Acrylic, PVC, MDF, glass, plastic and soft metals such as copper and aluminum.

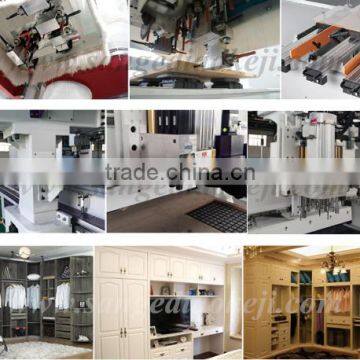

Working samples:
Certifications
Packaqing and shipping
Our Service
1)The engineers are available to go to your country for overseas’ after-sale service in time and professionally.
2)24 hours heart to heart service on-line or mobile.
3)We offer free training in our factory for automatic loading and unloading cnc nesting machine , wood cutting cnc router for Kitchen or arcade cabinets production line
4)The warranty of cnc for furniture production line auto loading cnc wood panel cutting machine is 12 months, small broken parts could be freely replaced at any time, spare parts are delivered with machine for customer convenience.
5)We offer you best agent price and distributor price for our further cooperation.
6) we can offer special custom-made according to your request.
Welcome to visit our cnc router machine factory
