Specifications
DVB-S/S2 Standard
Multiplexer and 3 DVB-T Modulation
3 DVB-T RF Channels
Overview

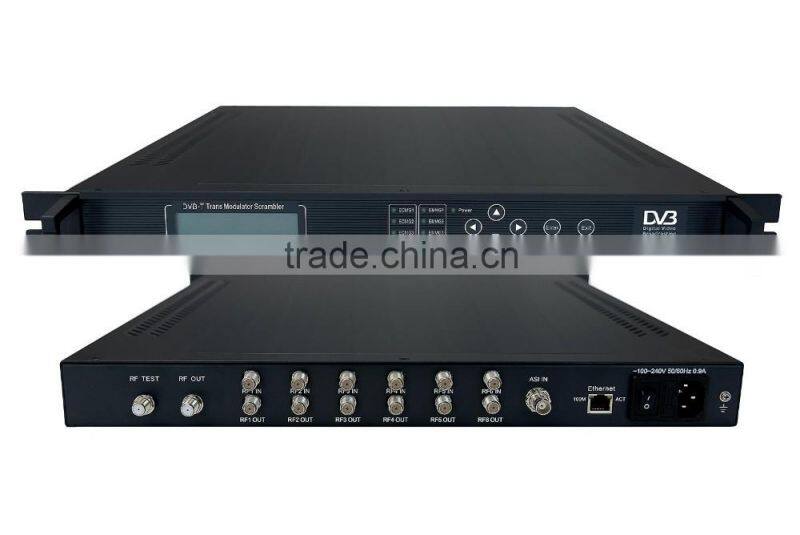

SC-4126 DVB-S/S2 to 3DVB-T Transmodulator can receive digital programs from 8 QPSK/8PSK satellite RF signal and demodulating, multiplexing and scrambling,then outputing the selected programs to one of 3DVB-T RF channels .SC-4126 rovides a cost-effective solution for TV operators to re-distribute its content via wireless network. ( DVB-T Transmodulator with Scrambler )
Features
- Complying DVB standard signal channel coding
- Input 8 QPSK/8PSK- RF channels and 4 ASI
- Output 3 DVB-T RF channels
- 100Base-TX, RJ45 for managemnt,monitoring
- Support program selection and remultiplexing
Technical Specification
Input |
8 tuner inputs(DVB-S/S2) , 4 ASI input(BNC) |
|
Modulation |
DVB-T channel |
3 |
Standard |
DVB-T (EN300744) |
|
Transmode |
2k, 8k |
|
Constellation |
QPSK,16,64 QAM |
|
Protection Interval |
1/4, 1/8, 1/16, 1/32 |
|
Bandwidth |
6M,7M,8M |
|
Baudrate |
1/2, 2/3, 3/4, 5/6, 7/8 |
|
|
RF Output |
Port |
F Type,75Ω impedance |
Frequency range |
36~900MHz, 1Khz step |
|
Output level |
-26dbm~+3dbm (0.1db step) |
|
MER |
≥42db |
|
System Function |
LCD/Key board, network management, Chinese and English language |
|
Ethernet software upgrade | ||
General |
Dimensions (WxDxH) |
44.5mm×483mm×410mm |
Weight |
4.5kg |
|
Temperature range |
0~45°C(operation),-20~80°C(storage) |
|
Power Requirements |
AC110V±10%,50/60Hz orAC220V±10%,50/60Hz |
|
Power consumption |
≈25W |
|
NMS
3 years warranty. oem, odm support
