US$ 100 - 680 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
sochuang
Model Number:
SC5119
Contact Supplier Request Quote Chat Now
Chengdu Sochuang Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
chengdu
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Sichuan, China
Brand Name sochuang
Model Number SC5119

4in1 QAM CI IP SPTS Multicast IRD (4 DVB-C RF in,4 CI,4 ASI+IP 32 SPTS Multicast UDP out)











DVB-C/QAM 4in1 CI ASI/IP IRD

4in1 QAM CI IP SPTS Multicast IRD (4 DVB-C RF in,4 CI,4 ASI+IP 32 SPTS Multicast UDP out)

Overview

DVB-C/QAM 4in1 CI IP IRD supports 4xDVB-C/QAM RF input. It has 4×CI interfaces and supports multi-type of CAM cards. It can output 4×ASI and IP (TS over UDP). It suits 1U rack and provides front panel LCD operation and NMS (Network Management Software) controlling.

Technical Specification

Input

RF

4xDVB-C/QAM(47-870MHz),

F-head

Output

4×ASI

DVB standard, 4xBNC interface

IP

SC5117:4xASI+4xMPTS,7xTS,

1000M/gigabit IP port

SC5119:4xASI+32xSPTS,7xTS,

1000M/gigabit IP port

Control

IP remote

NMS (Ethernet Port, RJ-45),

10/100m base-TX,

Front panel

Keyboard + LCD

General Features

Size

482mm×240mm×44mm

Temperature

0~45°C (Operation);

-20~80°C (Storage)

Power

100-240VAC, 50Hz, 25W

Order Guide

SC-5130

DVB-C ASI/IP CI IRD(RF+ASI in,

ASI+IP/1*MPTS/8*SPTS(multicast) out)

SC-5117

4in1 DVB-C CI IRD(4 DVB-C RF in,4*CI,

4 ASI+IP/4*MPTS out)

SC-5119

4in1 DVB-C CI IRD(4 DVB-C RF in,4*CI,

4 ASI+IP/32*SPTS out)









Network management software

input signal setting:

4in1 QAM CI IP SPTS Multicast IRD (4 DVB-C RF in,4 CI,4 ASI+IP 32 SPTS Multicast UDP out)



Channel Decrypt ci cam setting:

4in1 QAM CI IP SPTS Multicast IRD (4 DVB-C RF in,4 CI,4 ASI+IP 32 SPTS Multicast UDP out)





MPTS multicast IP output setting:

4in1 QAM CI IP SPTS Multicast IRD (4 DVB-C RF in,4 CI,4 ASI+IP 32 SPTS Multicast UDP out)

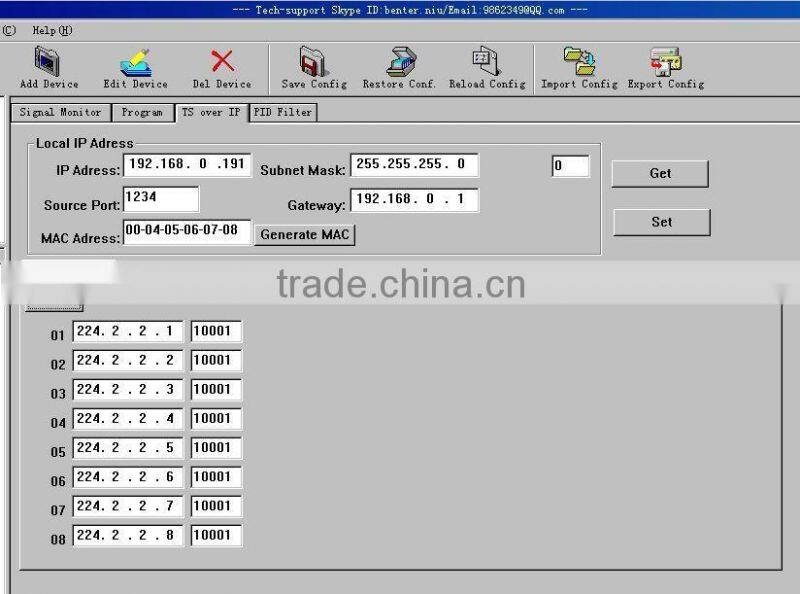

TS over UDP:

4in1 QAM CI IP SPTS Multicast IRD (4 DVB-C RF in,4 CI,4 ASI+IP 32 SPTS Multicast UDP out)








Assembling :

4in1 QAM CI IP SPTS Multicast IRD (4 DVB-C RF in,4 CI,4 ASI+IP 32 SPTS Multicast UDP out)



  Packing:



4in1 QAM CI IP SPTS Multicast IRD (4 DVB-C RF in,4 CI,4 ASI+IP 32 SPTS Multicast UDP out)





Stocking:

4in1 QAM CI IP SPTS Multicast IRD (4 DVB-C RF in,4 CI,4 ASI+IP 32 SPTS Multicast UDP out)





Company information:                                                   4in1 QAM CI IP SPTS Multicast IRD (4 DVB-C RF in,4 CI,4 ASI+IP 32 SPTS Multicast UDP out)



 4in1 QAM CI IP SPTS Multicast IRD (4 DVB-C RF in,4 CI,4 ASI+IP 32 SPTS Multicast UDP out)





Certificate&Exhibition:

4in1 QAM CI IP SPTS Multicast IRD (4 DVB-C RF in,4 CI,4 ASI+IP 32 SPTS Multicast UDP out)



 4in1 QAM CI IP SPTS Multicast IRD (4 DVB-C RF in,4 CI,4 ASI+IP 32 SPTS Multicast UDP out)
