Three Spindle Wood Milling Machine SKW-1325 CNC Router Cnc Router Machine for Aluminum
US$ 5,000 - 13,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
8 Pieces Auto Tool Changer Cnc Router With Atc in LineUS$ 8,000 - 19,000MOQ: 1 Set -
Cabinet Door,window Engraving,cutting Use Three Heads Atc Cnc Router MachineUS$ 4,000 - 7,000MOQ: 1 Set
-
Italy Hsd Spindle Act Cnc Router Machines With Servo Motor Artcam Design Software 3d Wooden Works EngraverUS$ 2,000 - 24,600MOQ: 1 Set
-
High Precision 3/4 Axis 3d Woodworking Auto Tool Changer Cnc Router Wood Cnc Router 1325US$ 2,310 - 24,600MOQ: 1 Set
-
Servo Motor With Economic Style 9.0KW HSD Air Cooling Spindle Engraver Cutter Panels/instruments Carving Lathe MachineUS$ 2,800 - 24,600MOQ: 1 Set
Condition
New
CNC or Not
CNC
Place of Origin
Shandong, China
Brand Name
senke
Model Number
atc
Voltage
customizable
Power(W)
standard
Dimension(L*W*H)
standard
Weight
standard
Certification
CO,form A,form E,FTA etc
Warranty
1.5 year
After-sales Service Provided
Engineers available to service machinery overseas

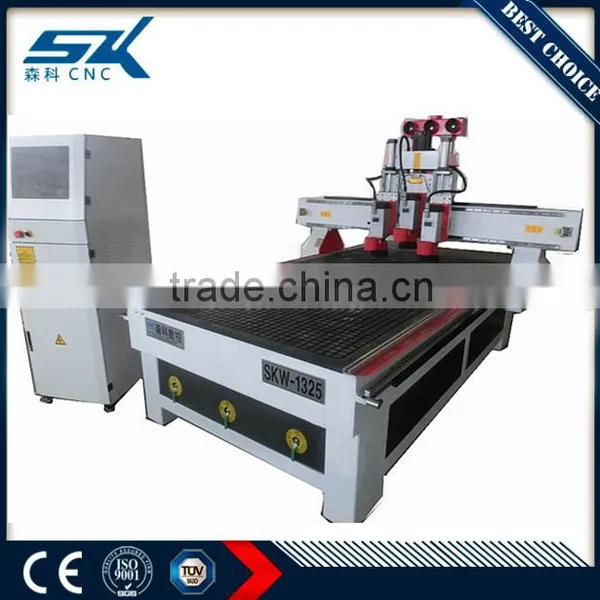

Three spindle Wood milling machine SKW-1325 CNC Router cnc router machine for aluminum
Product Description
Features:
1. X,Y axes transmission with gear rack, Z Germany ball screws, ensures stable and smooth movement of the machine.
2. High power spindle, water cooling/air cooling for choose, working vigorously with low noise.
3. The Vacuum Adsorption Woodworking Machine Series: adopt vacuum system, configured with vacuum pump of strong adsorption which can adsorb materials with different size.
2. High power spindle, water cooling/air cooling for choose, working vigorously with low noise.
3. The Vacuum Adsorption Woodworking Machine Series: adopt vacuum system, configured with vacuum pump of strong adsorption which can adsorb materials with different size.
4. Automatic lubrication system fulfills the periodic lubrication maintenance just by a slight press
Techncial parameters:
Discription |
Parameter |
|||
SKW-1325 |
SKW-1530 |
SKW-2040 |
Option |
|
Working Area (X*Y*Zmm) |
1300*2500*200mm |
1500*3000*200mm |
2000*4000*200mm |
Sizes
customized
|

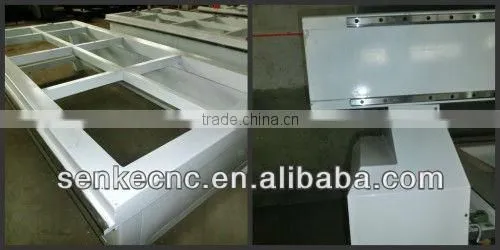

Body structure |
Steel tubes |
|||
X, Y Structure |
rack and pinion drive |
|||
Z Structure |
Ball Screw/option gear wheel |
|||
X, Y Resolution |
<0.01mm |
|||
Max Moving Speed |
32000mm/min
|
|||
Max Engraving Speed |
20000mm/min
|
|||
XYZ traveling positioning accuracy |
0.03/300mm |
|||
XYZ repositioning accuracy
|
0.03mm |
|||
Spindle power |
3kw/4.5kw/5.5KW/8KW(can be choices) |
|||
Spindle Speed |
6000-18,000rpmrpm
|
|||
Table style |
Fixture/option vacuum table |
|||
Dust collection |
Can add or not |
|||
Voltage |
AC220V/50Hz |
|||
Drive type |
Stepper/Option:servo |
|||
Working Dictate |
G Code ,HPGL |
|||
Operating system |

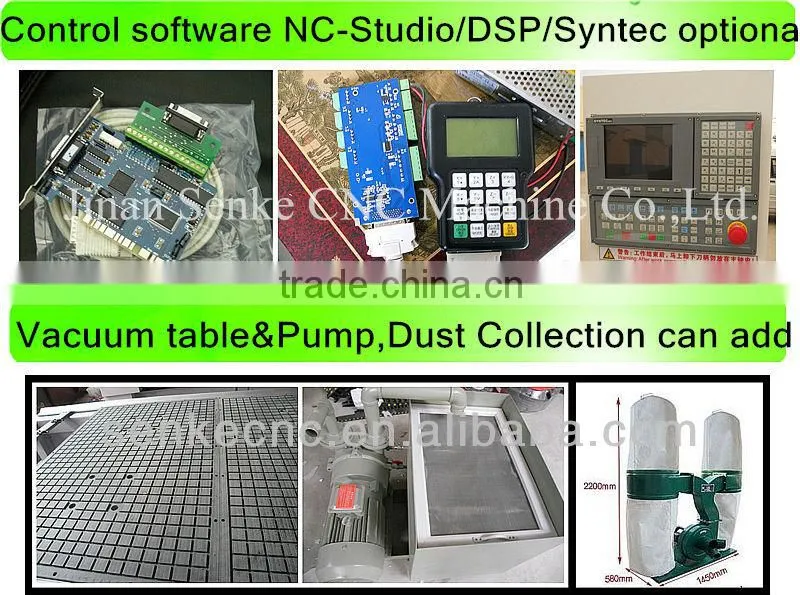

Dsp System/option syntec or LNC |
|||
Interface |
USB |
|||
Flash memory |
128M(U Disk)
|
|||
Software Compatability |
Type3/Ucancam Artcam |
|||
Running Enviroment |
Temperature: 0-45
|
|||
spindle--aircooling or watercooling for choose

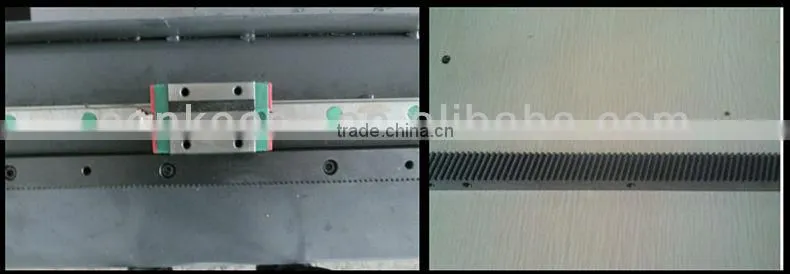

High precision Square rail and Taiwan miko Gear reck
pneumatic cylinder /linear/disc atuo tool change as customer need
Other parts of our machine
FAQ
Applicable industrial:
It is suitable for the wave board processing, wooden door, screen, craft, window processing and different kinds of furniture assistance processing. Also suitable for the aluminium board, plastic board, artificial marble as well as the light metal industry
Some working samples:

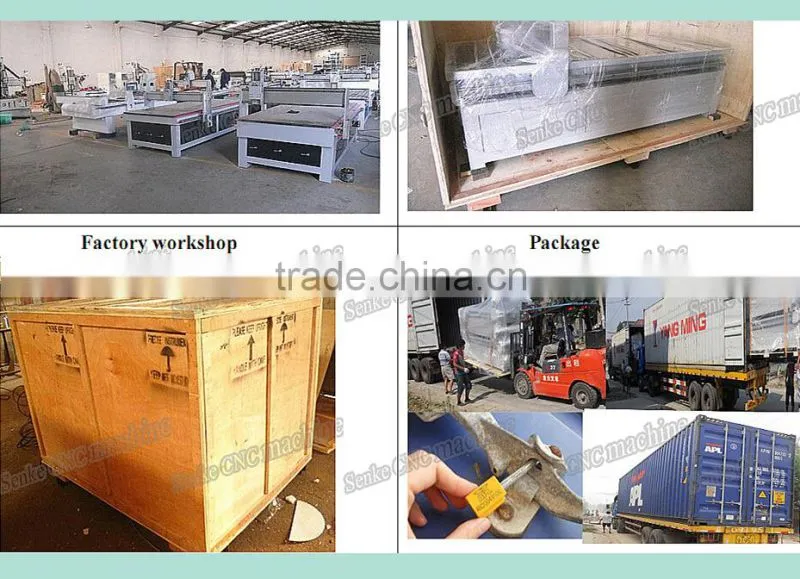

Packaging & Shipping
Our Services
Company Information
We are the CNC and laser manufacturer with professional and highly skilled technial team directly,hope we may have the chance share our advantage serve for you.:-)
Many thanks for your valuable time,anything we may help,just contact us anytime.
