Home > Products > Furniture Production Line > Woodworking Cnc Router Kitchen Cabinet Making Machine
Woodworking Cnc Router Kitchen Cabinet Making Machine
- 500 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
- engraving cnc router,1325 woodworking cnc router 1300*2500*200
- engraving and milling machine,1325 woodworking cnc router 1300*2500*200
- engraver router,1325 woodworking cnc router 1300*2500*200
- dsp control cnc machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router,1325 woodworking cnc router 1300*2500*200
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Shandong, China |
Brand Name: | SANGE | Model Number: | SG-1325 | Voltage: | AC220V/50Hz |
Power(W): | 6KW Air-cooling | Dimension(L*W*H): | 3200*2140*1850mm | Weight: | 3000KG |
Certification: | CE ISO | Warranty: | One Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
automatic computer cabinet making machine
Application:
Furniture: panel furniture, cabinet, sliding door, soft pack board, wooden door, office furniture
Woodworking Industry: voice box, game cabinet, computer desk, sewing table, instrument
Panel processing: insulating material, plastic, PCB, train inner structure, bowling track, compact-panel ,epoxy resin, ABS,PP,PE etc
Decorating industry: acrylic, PVC,MDF board, organic glass, plastic, aluminum/copper soft sheet metal ornamental milling cutting processing
Features
2)Saving time and labor,materials,replace traditional CAD draftsmen,splitting worker,cutting worker,only need 8 minutes to input size and design and split.Automatic layout optimization,improve material utilization.
High quantity,automatic design,automatic typesetting,no human intervention.
minimizing error rate to minimum,ensure the quality of the order.
3)The two spindle is Protec 6KW Air-cooling spindle and 5+4 drilling head
4)High efficiency:advanced automatic tool change program,without human intervention,program automatically.
5)Strong two layers vacuum table with 1325 vacuum holes to suck tightly of the work piece,24 partition design,strong adsorption materials of different area,greatly improve the work efficiency.
Technical parameter:
Parameter of cnc router machine with auto unloading and loadning | |
X,Y,Z working area | 1300*2500*200mm |
X,Y,Z Traveling positioning accuracy | ±0.02/300mm |
Lathe bed frame | T structure heavy lathe bed |
X,Y Structure | Rack |
Z Structure | Taiwan TBI Ball Screw |
Table surface | Vacuum table |
motor | Japan Yaskawa servo motors |
Working speed | 0-80000mm/min |
Spindle power | Italy 6.0KW air cooling spindle 4.5KW air cooling spindle*2 |
Spindle speed | 0-18000RPM/min |
Spindle inverter | Delta&Fuling inverter |
Working voltage | AC380V/220V |
Operation system | Taiwan syntec control system |
Command language | G code |
X,Y Resolution | <0.02mm |
Running environment temperature | 0-45°C |
Dust collector | yes |

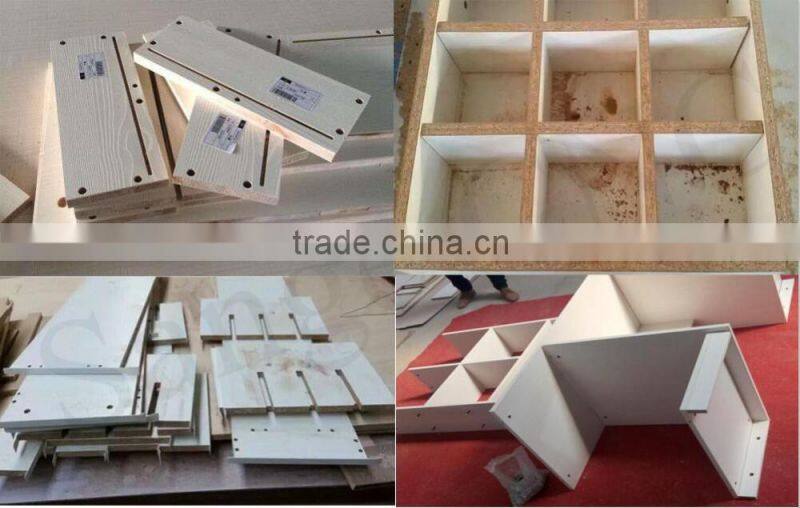

Sample Show
Packing&Shipping:
Our factoy show:
FAQ:
1. How should I pay for my order ? what is the procession of this purchase ?
We accept TT by bank. you can do 40% prepayment at first, then we will start to make production. when the machine is ready , we will take pictures to you, and then you can do the ballance. after we got your payment. i will send the machine to you.
2. How about your service after sales ? can your engineer speak fluent english ?
We offer the service from you got the machine, including how to install the machine, how to use machine. how to let machine work. and so on. usually we will teach you how to do by email or by skype . our engineer has many years of experience for cnc machine service . so he can slove the problem in short time.
3.Are you a factory or trading company?
We are the manufacturer . as only the machine made by ourself ,quality can be trusted, and most important thing is we can do better serivce after sales. we know how to fix the problem in each parts easliy. so welcome to visit to our factory!
4.How long is the delivery time?
For standard machines, it would be 7-15 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 20 days.
5.How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
Contact Us
- Jinan Sange CNC Machinery Co., Ltd.
- Contact nameElina Zhang
- Phone86-0531-88705989
- Address1101-2, Dongdu Int'l, Ind. North Road, Licheng Dist.
