vacuum table atc cnc router with Jinan China trustable quality and full system after sale service Supplier's Choice
- 100 Set / Sets per Month
- Qingdao/Shanghai/Tianjin
- T/T L/C D/P D/A Credit Card PayPal
- engraving cnc router,1325 woodworking cnc router 1300*2500*200
- engraving and milling machine,1325 woodworking cnc router 1300*2500*200
- engraver router,1325 woodworking cnc router 1300*2500*200
- dsp control cnc machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router,1325 woodworking cnc router 1300*2500*200
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Shandong, China |

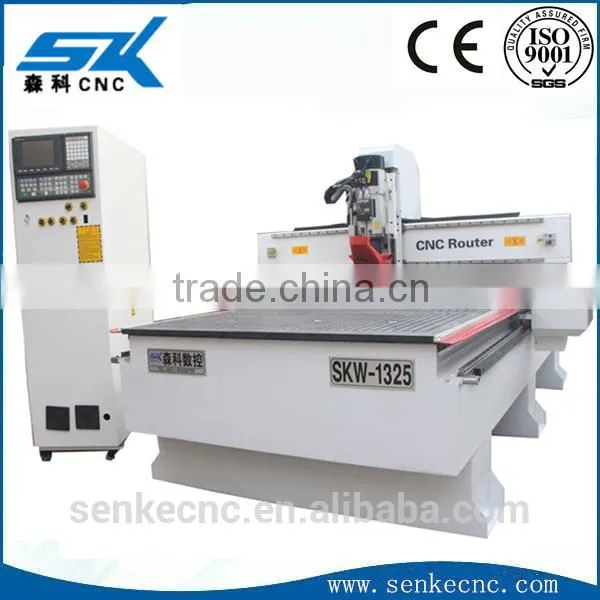

Brand Name: | Senke | Model Number: | SKW-1325L | Voltage: | 220V/380V/110V |
Power(W): | 9.0KW (optional) | Dimension(L*W*H): | 1300*2500*200mm | Weight: | 1100KG |
Certification: | CE,CO,FORMA ,FORME,FTA available | Warranty: | 2 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
vacuum table atc cnc router with Jinan China trustable quality and full system after sale service
Accessories of ATC cnc router:
Samples of ATC cnc router:
Features of ATC cnc router:
1.taiwan imported syntec or LNC control system,LCD screen touch operate with easy learn,fully function,.
2. Italy imported HSD brand 9kw aircooling spindle,supply enough strong power,stably run and use,at the same time higher precision
3. japan imported yaskawa servo motors and drivers,high speed,long life and higher precision
4. big size gear rack keep the machine run stabely
5. Taiwan imported hiwin/pmi 25-30 square rails.
6. dust collect and vacuum table for optional choose.
NO. | Description | Parameter |
1 | Lathe body | Thick and Hard Steel structure |
2 | X,Y,Z Working Area | 1300*2500*300mm |
3 | Table Size | 1640*3040*3000MM |
4 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
5 | X,Y,Z repositioning Positioning Accuracy | ±0.01mm |
6 | X Structure | Rack and pinion transmission, Taiwan-made Linear Bigger orbit, 30mm |
7 | Y Structure | Rack and pinion transmission, Taiwan-made Linear Bigger orbit, 30mm |
8 | Z Structure | BALLSCREW,THK linear rail from Japan |
9 | Max.Consume power | about 9.0Kw |
10 | Max.Speed | 0-30000mm/min |
11 | Max.Working Speed | 0-25000mm/min |
12 | Spindle Power Motor | Italy made HSD 9.0KW High speed air cooling spindle motor ,fast speed and high quality ,18000r/Min |
13 | tools magazine | 8 tools |
14 | Spindle Speed | 0-18000RPM |
15 | Working Mode | SERVO motor,Yaskawa SERVO MOTOR AND DRIVERS |
16 | Working Voltage | 380V-220v/3 PHASE 50HZ/60Hz for standard machine, if optional vacuum system or servo system, it need 380V 3 phase |
17 | Command Code | G code,HPGL,U00,mmg,plt |
18 | Operating System | Adopting Taiwan-made syntec control system,separate keyboard control system and color LCD screen makes the machine have perfect performance. |
19 | Collet | ER25(Φ3.175, Φ6,12.7mm CAN OPTIONAL ) |
20 | X,Y Working Delicacy | <0.01mm |
21 | Software | Type3 software |
22 | Running circumstance | Temperature: 0°C~45°C |
23 | Relative humidity: 30%~75% | |
24 | Packing Size | 3440*2220*2100MM |
Net Weight (KG) | 1380 | |
25 | Gross Weight (KG) | 1480 |
26 | Optional device | dust collector :Vacuum system servo system(will use Panasonic servo motors and driver board) |
27 | Waranty | One year |
28 | Delivery time | 15days after get total payment by T/T transfer |
29 | cutter quantity | Disk-style auto-tool changer system with 8 pieces cutter |
30 | upgrade | more wider and hard Aluminum table with high quality clamps ,X,Y Axis adopt auto eliminating clearance device, more accuracy ,oil lubrication system standard, ALL AXIS WITH DUST PAPER |
31 | competitive advantage | Has the function of re-carving after break point and power failure. |
32 | Applicable industries: | Wood processing: processing of various furniture such as door, window, |
Advertisement: engraving and cutting various | ||
Art craft: engraving characters of any languages and graphics |
Application of ATC cnc router:
Our cnc router can widely used in process for single lines, milling, 3D cutting and engraving in
furniture processing industry, separation wall,woodworking decoration, wood art work, home decoration,
doors manufacturing,and Glass engraving.Because it add a water tank,so it also can cutting iron,aluminum and
copper.
Packaging & Shipping of ATC cnc router:
1.Senke product is widely used in almost all the materials which you can think of.
2.Senke Company is specialized in cnc router and laser machine manufacturing and selling. There is no middle man and no agent, so the price is best.
3.Senke machine with high precision and high reputation is the most reliable goods you can choose.
4.Senke company has all kinds machines in store, the delivery time is much shorter than other companies.
5.Senke Company has international tech service office and provides 24 hours online service and tech support for custom.
Please feel free to contact us,we will reply within 24h!
We want to know:
1 How much the spindle power do you need?
2 What materials do you need to process?
3 The size and thickness of your materials?
