Overview

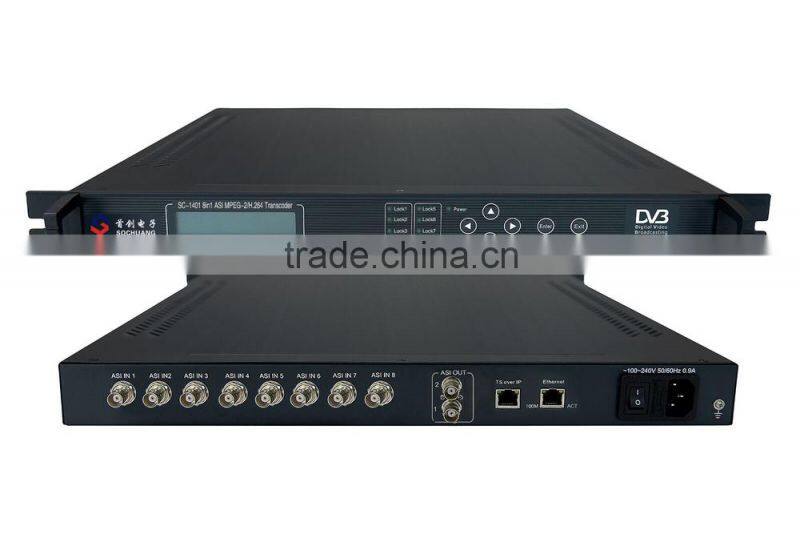

8IN1 SD/HD ASI Transcoder ( SD/HD MPEG2/H.264 MPEG2/MPEG4 IP Transcoder ) supports MPEG-2 to MPEG-4/H.264, MPEG-2 to MPEG-2, MPEG-4/H.264 to MPEG-2, and MPEG-4/H.264 to MPEG-4/H.264. It has 8×ASI input interfaces, and 1×ASI and IP (TS over UDP) output. The encoder suits 1U rack and can be configured by front panel LCD and NMS (network management software).
Features
u Transcoder: MPEG-2 to MPEG-4/H.264, MPEG-2 to MPEG-2, MPEG-4/H.264 to MPEG-2, MPEG-4/H.264 to MPEG-4/H.264
u 8 ASI input and ASI+IP/UDP output
u LCD/Keyboard control by front panel and network management by Ethernet
Technical Specification
Input |
ASI |
8 BNC interface, TS, DVB standard |
Video |
Transocde |
MPEG-2 to MPEG-4/H.264 MPEG-2 to MPEG-2 MPEG-4/H.264 to MPEG-2 MPEG-4/H.264 to MPEG-4/H.264 |
Output BitRate |
1.0~10Mbps continuously adjustable per channel |
|
Audio |
Bypass |
|
Output |
2×ASI |
1 as mirror, DVB standard, BNC interface |
IP (1401 model) |
100mbps RJ45, TS over IP/UDP/1*MPTS/8*SPTS |
|
Control |

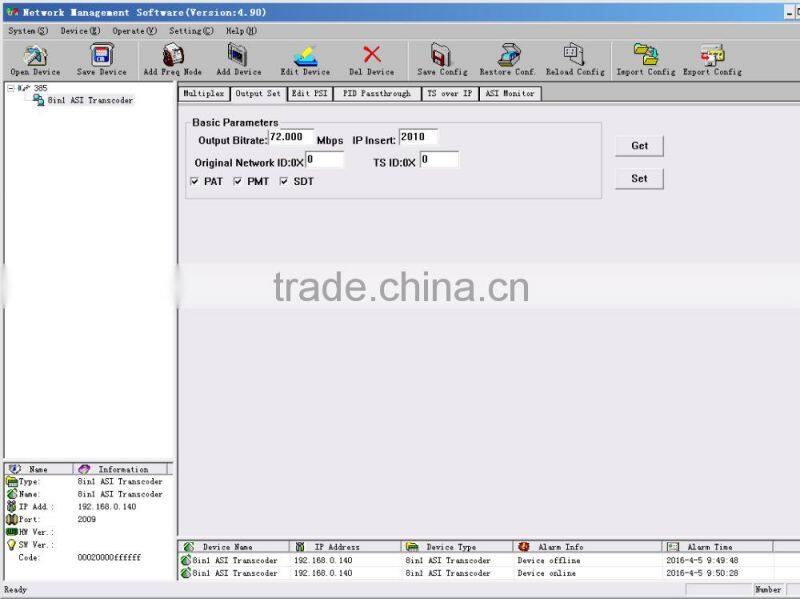

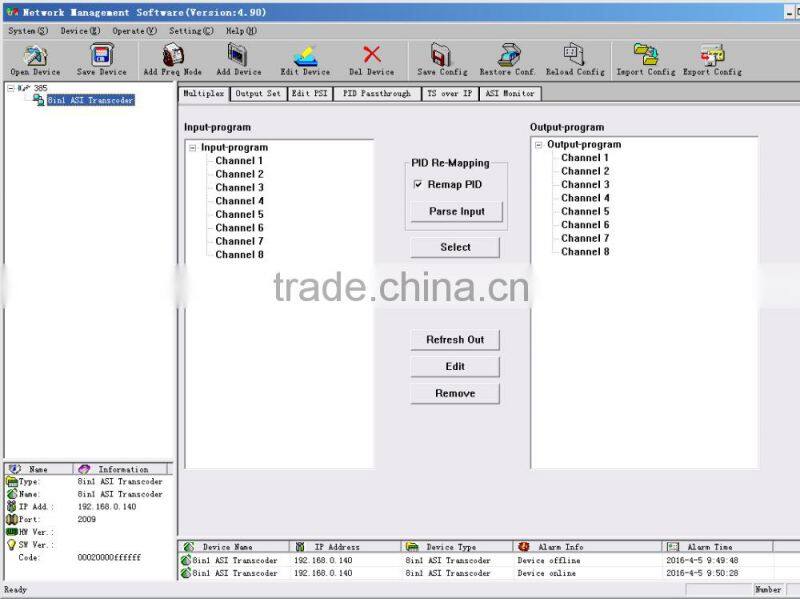

NMS (Ethernet port, RJ-45), Keyboard + LCD |
|
General Features |
Size |
410mm×280mm×44mm |
Temperature Range |
0~45°C(Operation); -20~80°C (Storage) |
|
Power |
100-240VAC, 50Hz, 25W |
|
l Free pre-sales and after-sales technical support
l 3 years warrantly
l Remote online support and training
l Hardware/Software upgrade support
