IP QAM RF Modulator IP to RF

IP QAM RF Modulator IP to RF thumbnail-1
IP QAM RF Modulator IP to RF thumbnail-2
IP QAM RF Modulator IP to RF photo-1
IP QAM RF Modulator IP to RF photo-2
US$ 500 - 680 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
sochuang
Model Number:
SC-4154
Contact Supplier Request Quote Chat Now
Chengdu Sochuang Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
chengdu
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Sichuan, China
Brand Name sochuang
Model Number SC-4154



Product Description

IP QAM RF Modulator IP to RF

Specifications

IP QAM Modulator with MUX-Scrambler(32 IP in,4 RF out)
32 IP in,MPTS/SPTS
4 dvb-c/qam channels RF out
scrambler,multiplexer

Freatures

. Meet DVB standard channel coding;

. Support full range of variable Symbol Rate and QAM mode;

 . 8M cache, anti-burst stream;

 . Data filling function;

 . Configurable PID filter, re-mapping, PSI, SI information synchronization update;

 . Support NIT table inserts;

. Real-time transport stream monitoring;

 . PCR correction;

 . Fixed or variable frequency output;

 . Provide RF output monitoring port (-20dB);

 . Local and remote control;

 . LCD display;

 . High reliability design, stable operation.



Technical Specification:

Modulation Mode

16,32,64,128,256,1024QAM

Symbol rate

1~7Mbaud/s

Input

IP in

1000mbps ip port(32 ip in)

Output

Modulator1

Main frequence

Modulator2

Frequency+8mhz

Modulator3

Frequency+16mhz

Modulator3

Frequency+24mhz

Multiplexer

From 32 ip in to 4 qam channels

scrambler

Support 4 CAS/SMS ;Headend implementation of DVB SimulCrypt(ETSI TS 103 197 V1.4.1)

Error-correcting codes

RS code188/204

Input data code rate

1.5~51Mbps

Channel Data Rate

20~56Mbps

MER

>40dB

BER

0

RF Frequency

47MHz~870MHz

Output LEV

85-105dBmV

Output LEV Test port

65-85dBmV

Impedance

75ohm

Output Return Loss

>=12 dB

General Features

Size

44mm*482*410mm

Environment

0 ~ 45(Operating);-20 ~ 80(Storage)

Power

100-240VAC(-+10%),50Hz,25W

Management

Network RJ-45 10/100 M

Keypad+ LCD



NMS IP QAM Modulator

IP QAM RF Modulator IP to RF

IP IN(32 IP in,TS over IP/UDP)

IP QAM RF Modulator IP to RF



Multiplexer

 IP QAM RF Modulator IP to RF

QAM Parameter

IP QAM RF Modulator IP to RF

Support to insert local PAT, PMT, SDT, NIT table.

Support PSI/SI editing, “Edit NIT” and “Edit PSI” to create new PSI/SI table.

 Scrambler Parameter

IP QAM RF Modulator IP to RF



support 4 different CAS at the same time

32 IP input and 4 QAM channels output;

NIT Edit

IP QAM RF Modulator IP to RF

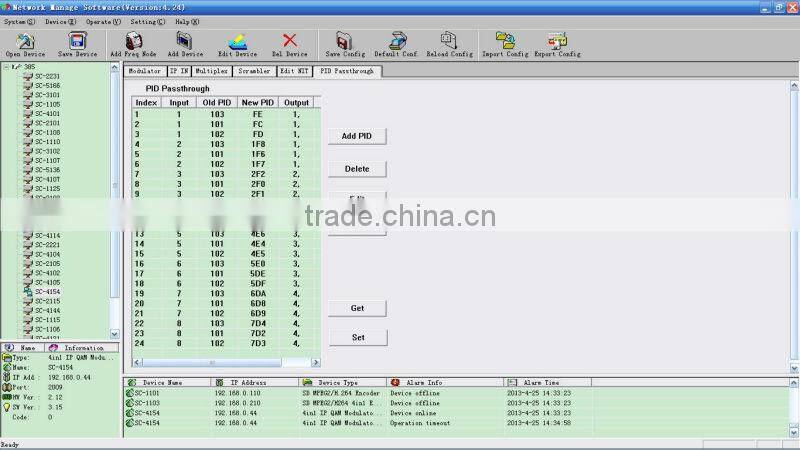

PID Passthrough

Notice: It can passthrough EPG/OTA data to QAM Channels.

IP QAM RF Modulator IP to RF





 Similar model: SC-4105:  DVB-S*6-QAM with Scrambler(6RF+ASI IN,QAM RF out)

                             SC-4125: DVB-S*6-4QAM TransModulator(RF(DVB-S)+ASI in,4 QAM RF out)

                             SC-4135: DVB-S/S2*6-4QAM TransModulator(RF(DVB-S)+ASI in,4 QAM RF out)
