headend 8 in 1
Overview:
tv multiplexer is a digital broadcasting TV system TS stream re-multiplexer. TS
multiplexer compress, encode andmultiplex on head-end to gain a number of single program or
multi-program transport stream according to user needs, and to synthesize one channel
transport stream, and can be inserted in the output stream EPG (Electronic Program Guide) , CA
(Conditional Access), as well as data broadcasting etc. It can support at most 8 channel input
transport stream to reuse,supports serial ASI interface, input transport stream bit rate is
270Mbps (highest) , four output channels, output bit rate canreach 160Mbps. By equipment
auxiliary data input channel, SI Table data generated on external SI (Service Information)
server can be inserted with output bit stream in real time to achieve the EPG and data
broadcasting value-added services.Its volume is IU computer case. It can completely off-line set
and run by the front panel LCD display.
Features:
u Compliance with ISO13818 and EN300 468 standards;
u Support IP data injection;
u Support PSI editing;
u Support PCR correction and PID re-mapping;
u 8M bytes caches, anti-burst stream;
u Support PSI editing functions;
u Each channel can choose 128 PID;
u Can insert data, reuse and transmission a variety of data;
u Alarm function;
u Support cascading between multiple devices;
u Enables centralized network management, support network remote upgrade feature;
u LCD display in Chinese and English, easy and flexible to operate;
u High reliability design, stable operation.
u 1U Rack;
u MPEG-SI Tables insertion;
u PCR Re-stamping;
Technical Specification:
Input |
ASI |
8 channel(highest at 270Mbps/channel) |
IP injection |
RJ-45 10/100M Base-T TX |
|
Re-multiplexing |
MPEG-2 transport stream re-multiplexing |
|
PID Re-mapping (auto or manual) | ||
PCR Correction | ||
automatically generate PSI / SI tables | ||
packet format |
188/204 automatic detection |
|
bandwidth |
|
150mbps |
Output |
ASI |
4 channels |
PID |
PID range |
0000-1FFF |
PID VPN |
Can realize an arbitrary PID VPN and mapping |
|
Max PID |
128 |
|
data input |
packet format |
Automatic identification,188/204 byte packets, no channel coding |
Control |
NMS(Ethernet Port), Keyboard+LCD |
|
General Features |
Size |
44mm * 482mm * 410mm |
Environment |
0~45(Operating);-20~80(Storage) |
|
Power |
220V AC±10%,50Hz,25W |
|
Network Management:

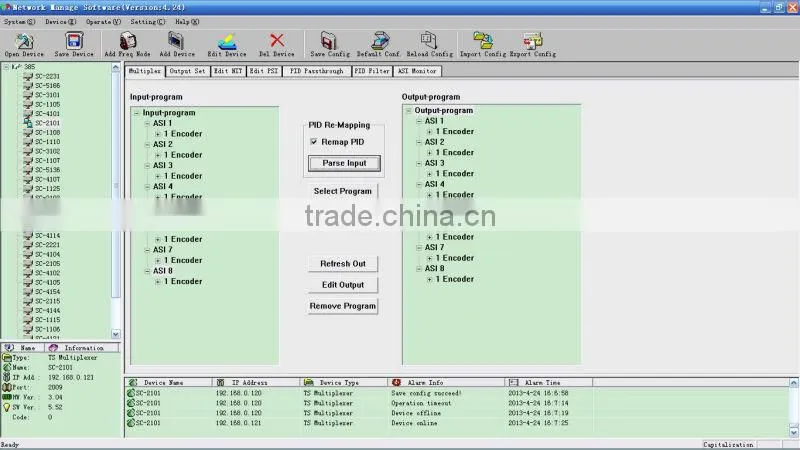

P1: TS multiplexer-select program

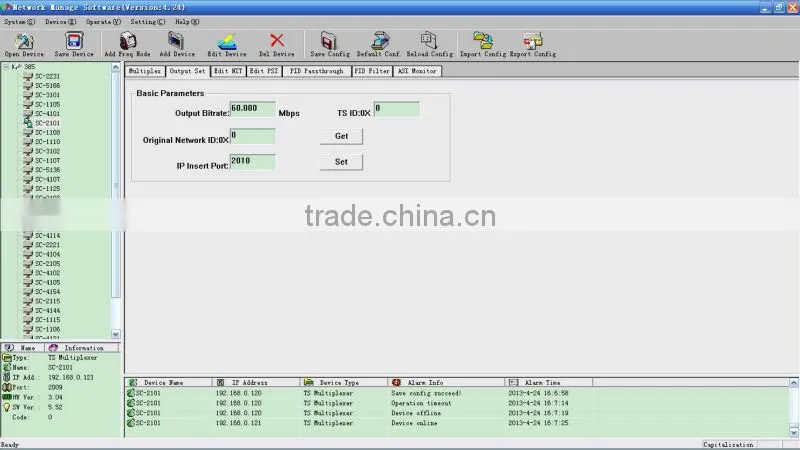

P2: TS multiplexer-output setting

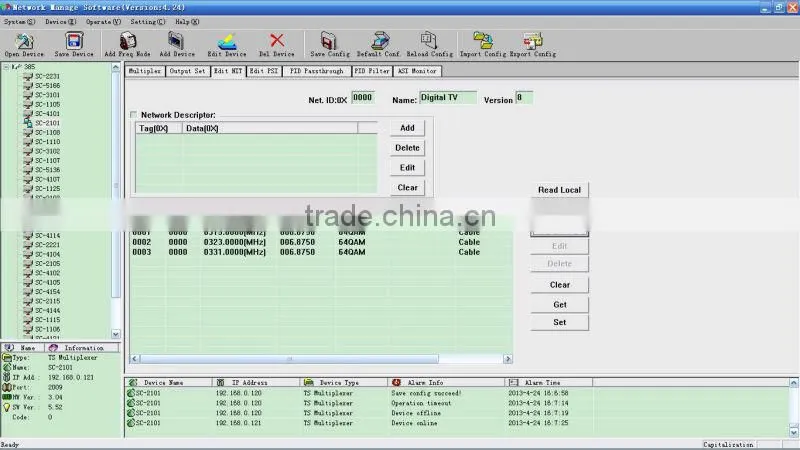

P3: TS multiplexer-NIT table
P4: TS multiplexer-edit PSI table

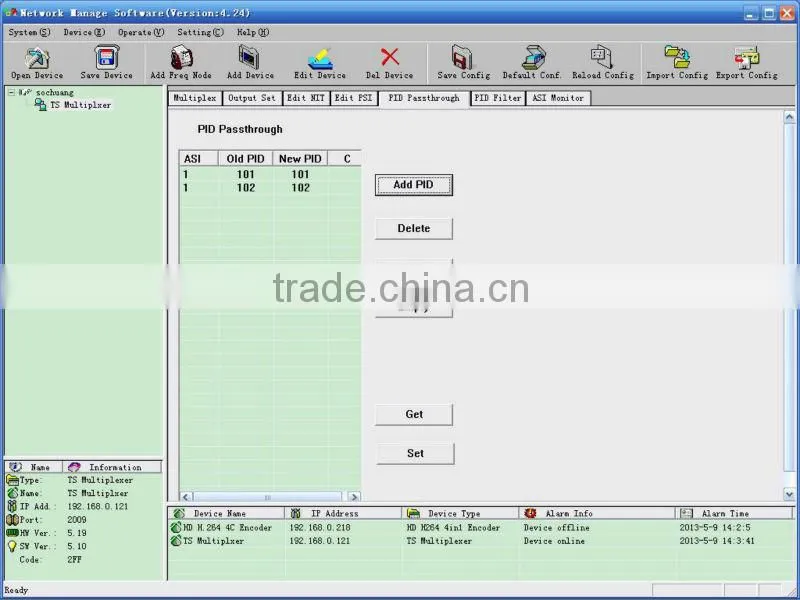

P5: TS multiplexer-PID Pass-through

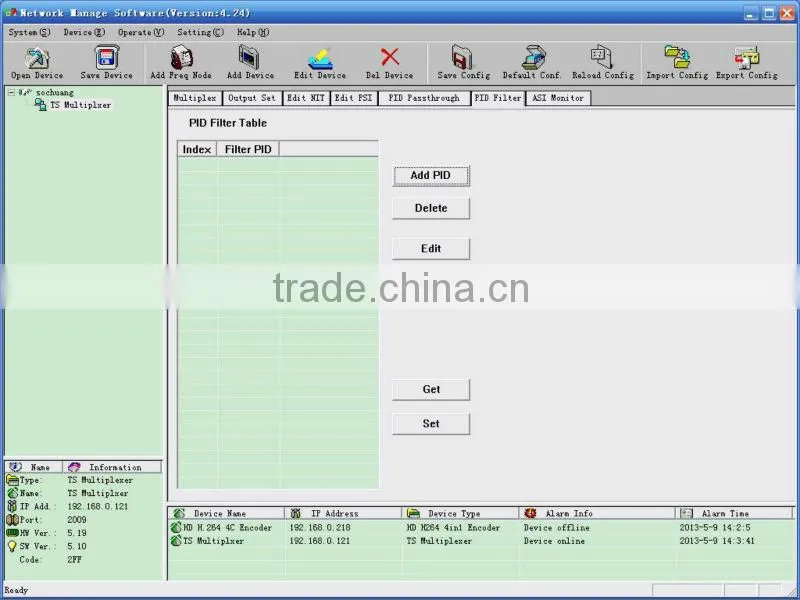

P6: TS multiplexer-PID filter
P7: TS multiplexer-monitor
l Free pre-sales and after-sales technical support
l 3 years warrantly
l Remote online support and training
l Hardware/Software upgrade support
