1325 big size ATC 3d CNC router , wood working cnc router with carousel auto tool changer
This cnc router2500x1300 atc for MDF,furnitures and aluminum engraving specailized in processing kinds of furnitures(wooden door and furniture, windows, tables and chairs,cabinets and panels, 3D wave plate,MDF),with 8 tools can automatic change tools easily,save the changeing tools' time.

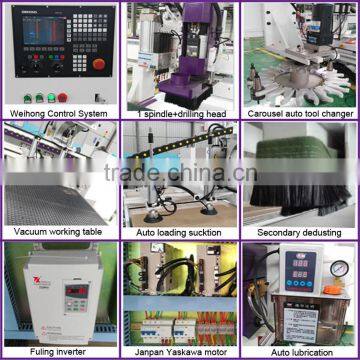

Main Features for cnc router2500x1300 atc

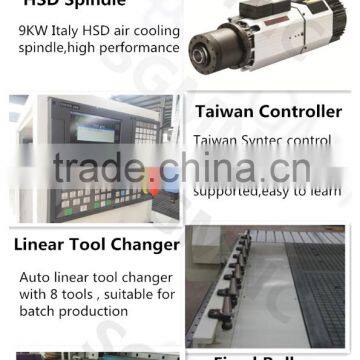

1. Air cooling spindle----9 KW Italy atc air cooling spindle.Well-known brands ,long working life,low noise,strong cutting ability to ensure the long time working.
2.Taiwan Syntec control system----Easy operation. Support offline operation,more table.(Optional :Nc Studio control system)
3. Japan Yaskawa servo motor----High-performance drive motor to ensure that the machines high speed and accuracy.
4. CSK linear rail 25# from Taiwan ----Smooth and precise transmission,low noise,and lifetime is 10 times longer than common rail way.
5. Vacuum & T-slot combined worktable----Can both absorb big materials by vacuum power and fix small materials by clamps. There is MDF boardon it for protection.
6. Helical rack transmission----Ensure fast speed,big loading capacity,strong power,long lifetime, and it ensures the machine more stable.
7. Carrousel Tool Magazine(ATC 1325 cnc router)---- With 8 tool holders and 8 tool forks,can save working time and will work so convenient. Can also choice the 6 or 10 tool holders and forks.
Parameters for cnc router2500x1300 atc
Working Size |
1300*2500mm(Can be customized) |
Traveling Positioning Accuracy |
±0.03/300mm |
Repositioning Accuracy |
±0.03mm |
Spindle Power |
9KW Italy ATC air cooling spindle |
Spindle Speed |
24000RPM |
X, Y axis |
Helical rack, CSK25# Rail Linear Bearing |
Z axis |
CSK Rail 25# Linear Bearing & TBI Ball Screw |
Max. Rapid Travel Rate |
50000mm/min |
Max. Working Speed |
30000mm/min |
Drive Motors |
Japan Yaskawa servo motor & DELTA driver |
Control System |
Taiwan Syntec |
Table |
T-slot & vacuum Table |
Frame |
Welded Structure |
Collet |
ISO30 |
X,Y Resolution |
<0.01mm |
Software Compatibility |
Type3/UcancameV9/Artcam Software |
Running Environment Temperature |
0 - 45 Centigrade |
Relative Humidity |
30% - 75% |
Product Application for cnc router2500x1300 atc
1. Advertisement: engraving and cutting of various labels and number plate, marble, etc for artistic effects on materials. Including marble, brass, steel, and other metallic material.
2. Crafts: engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artistic crafts, and stiletto.
3. Moulding: engraving delicate letter and flower pattern, primitive and fine processing of the small mould.
4. Architectural models: engraving fine window, fencing and wall patterns, etc.
5. Seal: engraving seals and medal on materials such as buffalo horn, wood etc.
6. Label: engraving character, number, and other pattern on label for products and on product directly.
7. Wood processing: processing density board, stiletto for surfing board, processing of marbles, cabinet and furniture.
Packing & Delivery
Certifications
Our Services
1, Within 7 days since your local customs clearance: if the cnc router’s any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered , operation disk/CD was included.
